Front Left CV Axle for 2007-2011 Toyota Camry - A1 CARDONE 66-5293

$115.99

Part number: 66-5293

UPC: 884548144279

Condition: New

Weight: 17.40 LBS

Item Package Quantity: 1

$115.99

Current Stock: 5

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

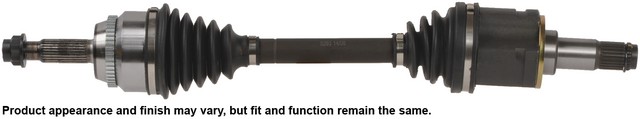

CARDONE New CV Axle Assembly P/N:66-5293

$115.99

Description

A1 CARDONE 66-5293 front left CV axle for the 2007-2011 Toyota Camry carries drive power from the transmission to the front left wheel. It is designed around the reasons original CV axles typically fail.

Neoprene boot with extra bellows where needed to resist bellow stress and cracking, the leading cause of boot failure
Each axle shaft is individually verified for straightness for vibration-free running at all speeds
Pneumatically crimped boot clamps seal the boot to the housing
Grease that withstands high-temperature and high-torque demands
Precision-rolled splines and threads for proper fit in the hub, the transmission and the axle nut

Quick facts

Part: A1 CARDONE 66-5293 CV axle
Also called: CV axle assembly
Fits: 2007-2011 Toyota Camry
Position: Front left
Material: Steel shaft, neoprene boot
Condition: New

Clicking or snapping when you turn with the wheel cut hard, a thump or vibration under acceleration, or grease around the wheel well can mean a worn joint or torn boot. Before you replace anything, look for flung grease with the engine off and the car parked, and have a shop inspect the joints and engine mounts if the cause is unclear. If the CV axle assembly is at fault, this one replaces it.

Fits

This is a direct-fit CV axle replacement for the 2007-2011 Toyota Camry. This listing is one axle for the front left, which takes one; the front right is a separate part ordered on its own.

Specifications

Fit and size

Position: Front left
Quantity per application: 1
Shaft diameter: 28 mm (1.102 in)
Compressed length: 652.78 mm (25.7 in)
Axle nut thread size: M22x1.5
Axle nut socket size: 30 mm (1.181 in)
Splines: 24 inboard, 26 outboard

Build and materials

Construction: CV joints included, splined inboard and outboard joints
Shaft material: Steel
Boot material: Neoprene
ABS tone ring: included, toothed, 48 teeth
Condition: New
Country of origin: China

In the box

One complete CV axle, a new axle retaining nut and an instruction sheet.

Installation notes

Remove and install one CV axle at a time.
Use a torque wrench on the retaining nut, tightened to the manufacturer's specification; never an impact wrench.
Use a press-type tool to remove the old stub shaft and never strike it with a hammer.
Install new transaxle seals to avoid leaking.

Interchange: 4342033270

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

4342033270

Buyer's Q&A

Frequently Asked Questions

Is the A1 CARDONE 66-5293 CV axle the right one for the 2007-2011 Toyota Camry?

Yes. A1 CARDONE 66-5293 is a front left CV axle for the 2007-2011 Toyota Camry, and the front right side is a separate part.

Does this A1 CARDONE CV axle come with a new axle nut?

Yes. The 66-5293 comes with a new axle retaining nut and an instruction sheet. The nut is supplied because the original is likely worn or stripped.

Does this front left CV axle include the ABS tone ring?

Yes. This front left axle includes a toothed ABS tone ring with 48 teeth.

What can clicking when I turn the wheel hard mean on a CV axle?

Clicking or snapping on full-lock turns, or a thump and vibration when accelerating, can mean a worn CV joint. Grease on the suspension can mean a torn boot, and a shop can inspect it.

Can I use an impact wrench on the CV axle nut?

No. Never use an impact wrench on the retaining nut. Use a torque wrench and tighten the M22x1.5 nut to the manufacturer's specification.
