Front Right CV Axle for 2007-2012 Nissan Sentra - CARDONE New 66-6263

$168.99

Vehicles this part fits

    Part number: 66-6263
    UPC: 884548203372
    Condition: New
    Weight: 20.00 LBS
    Item Package Quantity: 1
    $168.99
    Adding to cart… The item has been added

    Have questions?

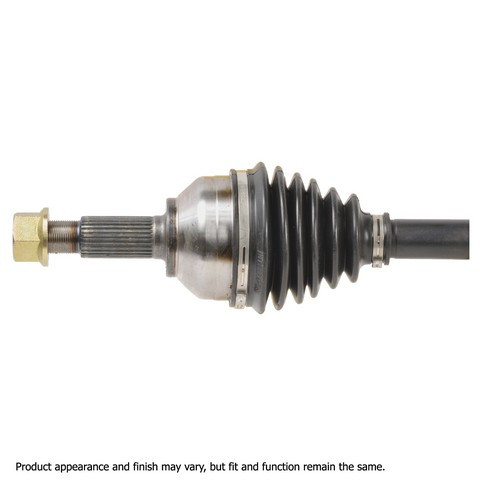

    CARDONE New CV Axle Assembly P/N:66-6263
    CARDONE New CV Axle Assembly P/N:66-6263
    $168.99
    $168.99

    CARDONE New 66-6263 front right CV axle for the 2007-2012 Nissan Sentra carries drive torque from the transaxle to the front right wheel. The CV axle assembly is engineered to meet O.E. form, fit and function.

    • Neoprene boots with additional bellows, where needed, to resist bellow stress and cracking
    • Every shaft individually verified for straightness for vibration-free performance at all speeds
    • Axle measurements validated after assembly to confirm a proper fit
    • Boot clamps pneumatically crimped to seal the boot to the housing
    • Grease that withstands high temperature and high torque
    • Precision-rolled splines and threads, plus a transmission seal diameter machined after heat treatment

    Quick facts

    • Part: CARDONE New 66-6263 CV axle
    • Also called: CV axle assembly
    • Fits: 2007-2012 Nissan Sentra
    • Position: Front right
    • Material: Steel
    • Condition: New

    Clicking when you turn with the wheel cut, a thump or vibration under acceleration, or grease thrown around a torn boot can mean a CV joint is worn. These signs alone do not prove the axle is at fault, since a worn wheel bearing can make noise too.

    Fits

    It fits the 2007-2012 Nissan Sentra. This listing is one axle for the front right, and the car takes one on each side; the front left is a separate part, and both sides are normally replaced together.

    Specifications

    Fit and size

    • Position: Front right
    • Quantity per application: 1
    • Shaft diameter: 28.07 mm (1.105 in)
    • Compressed length: 966 mm (38.031 in)
    • Axle nut: hex, M24x1.5 thread
    • Splines: 27 inboard, 29 outboard

    Build and materials

    • Shaft material: steel
    • Boot: neoprene, 5 ribs
    • CV joints included, dynamic damper attached
    • ABS tone ring: not included
    • Condition: New
    • Country of origin: China

    In the box

    One complete axle with its CV joints, a new axle retaining nut and an instruction sheet.

    Installation notes

    • Remove and install one CV axle at a time.
    • Tighten the axle nut with a torque wrench to the vehicle manufacturer's specification; never use an impact wrench.
    • Install new transaxle seals when replacing the axle.
    • Never let the axle hang unsupported while you work, since that can damage the inner joint.

    Interchange: 39100ET80C

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    39100ET80C

    Frequently Asked Questions

    Is the CARDONE New 66-6263 CV axle the right one for a 2007-2012 Nissan Sentra?

    Yes. CARDONE New 66-6263 is the front right CV axle for the 2007-2012 Nissan Sentra. The front left side is a separate part.

    Does the CARDONE New 66-6263 axle include a new retaining nut?

    Yes. CARDONE New 66-6263 comes with the complete axle and its CV joints, a new hex axle retaining nut and an instruction sheet. An ABS tone ring is not included.

    What thread size is the axle nut on this front right axle?

    The hex axle nut has an M24x1.5 thread. The steel shaft is 28.07 mm (1.105 in) in diameter, and the axle measures 966 mm (38.031 in) compressed.

    Why does my front axle click when I turn with the wheel cut?

    A clicking or snapping noise on hard turns, or grease on the chassis and suspension from a torn boot, can mean a worn CV joint. A shop can confirm which part is worn.

    Does 39100ET80C interchange with CARDONE New 66-6263?

    Yes. 39100ET80C is listed as an interchange number for CARDONE New 66-6263, the front right CV axle.
