Front Left CV Axle for 1994-2002 Mazda 626 & More - CARDONE New 66-8032

$102.99

Vehicles this part fits

    Part number: 66-8032
    UPC: 082617632331
    Condition: New
    Weight: 18.00 LBS
    Item Package Quantity: 1
    $102.99
    Adding to cart… The item has been added

    Have questions?

    CARDONE New CV Axle Assembly P/N:66-8032
    CARDONE New CV Axle Assembly P/N:66-8032
    $102.99
    $102.99

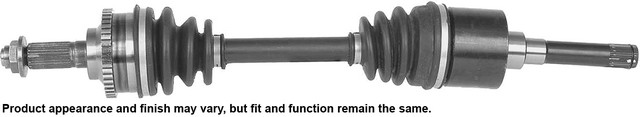

    CARDONE New 66-8032 front left CV axle for the 1994-2002 Mazda 626 and other vehicles carries drive torque from the transmission to the front wheel. This CV axle assembly was engineered around the reasons original axles typically fail, and it meets O.E. form, fit and function.

    • Neoprene boots with additional bellows where needed, to resist bellow stress and cracking
    • Every shaft individually verified for straightness, for vibration-free performance at all speeds
    • Axle measurements validated after assembly
    • Boot clamps pneumatically crimped to seal the boot to the housing
    • Grease that withstands high temperature and high torque
    • Precision-rolled splines and threads for fit in the hub, the transmission and the axle nut

    Quick facts

    • Part: CARDONE New 66-8032 CV axle
    • Also called: CV axle assembly
    • Fits: 1994-2002 Mazda 626 and other vehicles
    • Position: Front left
    • Material: Steel shaft, neoprene boots
    • Condition: New

    Clicking when you turn with the wheel cut, grease thrown from a torn boot, or a thump and vibration when you accelerate can mean this axle is worn, though a broken engine mount or a worn hub bearing can also produce vibration or noise. This listing is one axle, and both sides are normally replaced together.

    Fits

    It is a direct-fit replacement for the 1994-1997 Ford Probe, the 1994-1997 Mazda MX-6 and the 1994-2002 Mazda 626.

    Specifications

    Fit and size

    • Position: front left
    • Quantity for the front left: 1
    • Shaft diameter: 28 mm (1.102 in)
    • Compressed length: 671.51 mm (26.438 in)
    • Inboard joint: splined, 35 splines
    • Outboard joint: splined, 28 splines
    • Axle nut: hex, M22x1.5 thread, 32 mm socket, 21 mm long

    Build and materials

    • Condition: new
    • Shaft material: steel
    • Boot material: neoprene, 3 ribs
    • CV joints: included

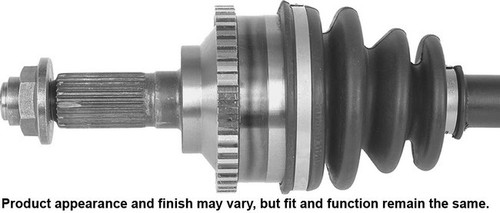

    • ABS tone ring: included, toothed, 44 teeth
    • Country of origin: China

    In the box

    One CV axle with its CV joints, a new axle nut and an instruction sheet. The front left takes one, and the front right is a separate part.

    Installation notes

    • Remove and install one CV axle at a time.
    • Tighten the axle nut with a torque wrench to the vehicle maker's specification; never use an impact wrench.
    • Install new transaxle seals when replacing the axle.
    • If the stub shaft is stuck in the hub, use a press-type tool and never strike it with a hammer.

    Interchange: F42Z3B436A · G59025600 · G59025600A · G59025600B · GG902560X · GG912560X

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    F42Z3B436A, G59025600, G59025600A, G59025600B, GG902560X, GG912560X

    Frequently Asked Questions

    Is this the 1994-2002 Mazda 626 CV axle for the front left side?

    Yes. CARDONE New 66-8032 is the front left CV axle for the 1994-2002 Mazda 626, and the front right is a separate part.

    Does the CARDONE New 66-8032 CV axle come with a new axle nut?

    Yes. CARDONE New 66-8032 includes a new hex axle nut with M22x1.5 thread, the CV joints and an instruction sheet.

    Does this front left CV axle include the ABS tone ring?

    Yes. This axle has a toothed ABS tone ring with 44 teeth.

    What can clicking when turning mean on a CV axle?

    Clicking or snapping with the wheel cut can mean a worn CV joint. Grease around the wheel can mean a torn boot, and a shop can confirm which.

    Is an impact wrench OK for the retaining nut on this CV axle?

    No. Use a torque wrench on the retaining nut and tighten it to the vehicle maker's specification, never an impact wrench.
