Front Right CV Axle for 1989-1998 Mazda MPV - CARDONE New 66-8048

$240.99
Sold out

Vehicles this part fits

    Part number: 66-8048
    UPC: 082617753173
    Condition: New
    Weight: 15.00 LBS
    Item Package Quantity: 1
    $240.99

    Out of stock

    Have questions?

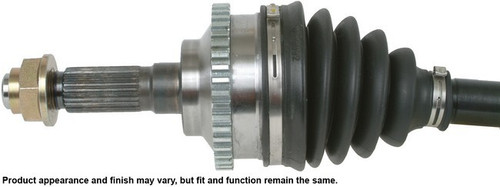

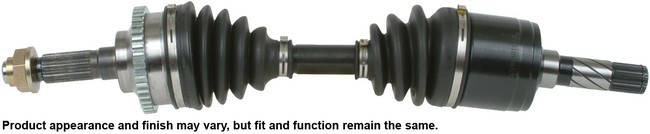

    CARDONE New CV Axle Assembly P/N:66-8048
    CARDONE New CV Axle Assembly P/N:66-8048
    $240.99
    $240.99

    CARDONE New 66-8048 front right CV axle for the 1989-1998 Mazda MPV carries drive torque from the transaxle to the wheel hub. This CV axle assembly is a new, complete unit with its CV joints, designed around the reasons original axles typically fail.

    • Neoprene boots with additional bellows, when needed, to resist bellow stress and cracking
    • Every shaft individually verified for straightness for vibration-free performance at all speeds
    • Boot clamps pneumatically crimped to seal the boot to the housing
    • Grease that withstands high-temperature and high-torque demands
    • Precision-rolled splines and threads for fit in the hub, the transmission and the axle nut
    • Transmission seal diameter precision-machined after heat treatment for the correct surface finish

    Quick facts

    • Part: CARDONE New 66-8048 CV axle
    • Also called: CV axle assembly
    • Fits: 1989-1998 Mazda MPV
    • Position: Front right
    • Material: Steel shaft, neoprene boots
    • Condition: New

    Clicking when you turn under power, a loud thump or vibration when you accelerate, or grease around a torn boot can all point to a worn CV axle. A wheel bearing or an engine mount can be behind some of these signs too, so find the cause before buying.

    Fits

    This CV axle fits the 1989-1998 Mazda MPV, which takes one on this side. This listing is the front right CV axle; the front left is a separate part, normally done at the same time.

    Specifications

    Fit and size

    • Position: Front right
    • Quantity per application: 1
    • Shaft diameter: 28 mm (1.102 in)
    • Compressed length: 547.69 mm (21.562 in)
    • Splines: 26 inboard, 26 outboard
    • Axle nut: hex, M24x1.5 thread, 36 mm (1.417 in) socket

    Build and materials

    • Condition: New
    • Shaft material: Steel
    • Boot material: Neoprene, 3 ribs
    • Joints: CV joints included, splined inboard and outboard
    • ABS tone ring: included, toothed, 44 teeth
    • Country of origin: China

    In the box

    One complete CV axle, a new axle retaining nut and an instruction sheet.

    Installation notes

    • Remove and install one CV axle at a time.
    • Use a torque wrench on the retaining nut, never an impact wrench.
    • Install new transaxle seals when replacing the CV axle.
    • Do not let the CV axle hang unsupported, which can separate it and damage the inner joint.

    Interchange: M08025500 · M08025500A · MD0725500

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    M08025500, M08025500A, MD0725500

    Frequently Asked Questions

    Does the CARDONE New 66-8048 CV axle fit the 1989-1998 Mazda MPV?

    Yes. CARDONE New 66-8048 is the front right axle for the 1989-1998 Mazda MPV, and the front left side is a separate part.

    Does the CARDONE New 66-8048 axle come with a new axle nut?

    Yes. CARDONE New 66-8048 includes a new hex axle nut (M24x1.5, 36 mm socket) and an instruction sheet, since an original nut is likely worn or stripped.

    Does this front right CV axle include an ABS tone ring?

    Yes. The ABS tone ring is included and is toothed, with 44 teeth.

    What can clicking when turning mean on a CV axle?

    A clicking or snapping noise when turning under power can mean a worn outer joint, and grease on the chassis can mean a torn boot. A shop can confirm which.

    Can I use an impact wrench on the axle nut of this CV axle?

    No. Use a torque wrench and tighten the nut to the vehicle manufacturer's specification. A prevailing torque lock nut should never be reused.
