Front Left CV Axle for 1995-1998 Mazda Protege & More - CARDONE New 66-8084

$103.99

Vehicles this part fits

    Part number: 66-8084
    UPC: 082617633994
    Condition: New
    Weight: 14.30 LBS
    Item Package Quantity: 1
    $103.99
    Adding to cart… The item has been added

    Have questions?

    CARDONE New CV Axle Assembly P/N:66-8084
    CARDONE New CV Axle Assembly P/N:66-8084
    $103.99
    $103.99

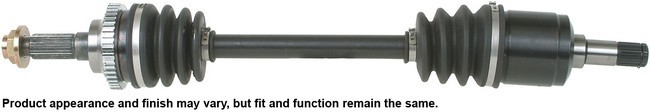

    CARDONE New 66-8084 front left CV axle for the 1995-1998 Mazda Protege and other vehicles carries engine torque from the transaxle to the front left wheel. It is a complete axle with its CV joints and an ABS tone ring.

    • Neoprene boots with extra bellows where needed to resist bellow stress and cracking, a leading cause of boot failure
    • Shaft individually verified for straightness for vibration-free performance at all speeds
    • Boot clamps pneumatically crimped to seal the boot to the housing
    • Grease that withstands high-temperature and high-torque demands
    • Precision-rolled splines and threads, with the transmission seal diameter machined after heat treatment for a correct surface finish

    Quick facts

    • Part: CARDONE New 66-8084 CV axle
    • Also called: CV axle assembly
    • Fits: 1995-1998 Mazda Protege and other vehicles
    • Position: Front left
    • Material: Steel shaft, neoprene boot
    • Condition: New

    Clicking or snapping when you turn with the wheel cut, vibration under acceleration, or grease thrown from a torn boot can mean the axle is worn. A broken engine mount, a worn hub bearing or a damaged ABS sensor ring can be behind similar signs too, so find the cause before buying.

    Fits

    It fits the 1995-1998 Mazda Protege, the 1994-1997 Kia Sephia and the 1992-1995 Mazda MX-3. This listing is one axle for the front left; the front right is a separate part, normally replaced at the same time. The 1995-1998 Mazda Protege takes one on its front left.

    Specifications

    Fit and size

    • Position: Front left
    • Quantity per application: 1
    • Shaft diameter: 26 mm (1.024 in)
    • Compressed length: 631.82 mm (24.875 in)
    • Inboard splines: 24
    • Outboard splines: 26
    • Axle nut thread size: M22x1.5
    • Axle nut socket size: 32 mm (1.26 in)
    • Axle nut length: 21 mm (0.827 in)

    Build and materials

    • Shaft material: Steel
    • Boot material: Neoprene
    • Joints: splined inboard and outboard
    • Axle nut type: Hex

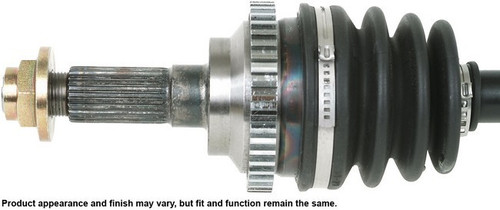

    • ABS tone ring: included, toothed, 44 teeth
    • Condition: New
    • Country of origin: China

    In the box

    One complete CV axle with a new axle nut, the ABS tone ring and an instruction sheet.

    Installation notes

    • Remove and install one axle at a time.
    • Tighten the axle nut with a torque wrench to the manufacturer's specification; never use an impact wrench.
    • Fit new transaxle seals when replacing the axle to avoid leaks.

    Interchange: OK20325600 · OK24A25600 · F01625600A · F02525600 · F02525600A · F02525600B · F0292560XA · F06325600 · F0642560XA · F06925600 · F06925600B · F06925600D · F0692560X · F0692560XB · F0692560XD · F07025600 · F0712560XA

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    OK20325600, OK24A25600, F01625600A, F02525600, F02525600A, F02525600B, F0292560XA, F06325600, F0642560XA, F06925600, F06925600B, F06925600D, F0692560X, F0692560XB, F0692560XD, F07025600, F0712560XA

    Frequently Asked Questions

    Does the CARDONE New 66-8084 front left CV axle fit the 1994-1997 Kia Sephia?

    Yes. CARDONE New 66-8084 fits the 1994-1997 Kia Sephia on the front left, as well as the 1995-1998 Mazda Protege and the 1992-1995 Mazda MX-3.

    Does this CV axle assembly come with a new axle nut?

    Yes. CARDONE New 66-8084 comes with a new hex axle nut (M22x1.5 thread, 32 mm socket size) and an instruction sheet.

    Does this front left axle have an ABS tone ring?

    Yes. This front left CV axle includes a toothed ABS tone ring with 44 teeth.

    Could grease on the chassis mean a CV axle boot has split?

    Yes, it can. A ruptured boot lets grease out and lets water and dirt in to damage the joint. A shop can inspect the boots and joints.

    Is CARDONE New 66-8084 a replacement for part number F02525600?

    Yes. F02525600 is one of the numbers CARDONE New 66-8084 replaces, along with OK20325600 and F06925600.
