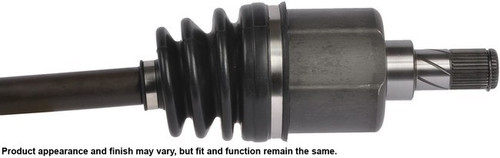

A1 CARDONE 66-9279 front left CV axle for the 2002-2008 Mini Cooper carries drive torque from the transaxle to the front left wheel. Like all A1 CARDONE axles, its shaft is individually verified for straightness.
- Neoprene boots with extra bellows, when needed, to resist bellow stress and ozone cracking
- Boot clamps are pneumatically crimped to seal the boot to the housing
- Grease that withstands high-temperature and high-torque demands
- Precision-rolled splines for the mating hub and transmission, and precision-rolled threads for the axle nut
- Transmission seal diameter is precision-machined after heat treatment for a correct sealing surface
Quick facts
- Part: A1 CARDONE 66-9279 CV axle
- Also called: CV axle assembly
- Fits: 2002-2008 Mini Cooper
- Position: Front left
- Material: Steel shaft with neoprene boots
- Condition: New
Clicking or snapping when you turn hard under power, a thump or vibration on acceleration, or grease on the suspension can mean a CV axle assembly is worn or its boot has split. A broken engine mount can produce similar signs, so look over the boot with the engine off for splits or grease spatter before you replace the axle.
Fits
This is a direct-fit CV axle for the 2002-2008 Mini Cooper, and the car takes one on this side. This listing is one axle for the front left; the front right is a separate part and is normally done at the same time.
Specifications
Fit and size
- Position: front left
- Quantity per vehicle: 1 on this side
- Compressed length: 23.25 in (590.55 mm)
- Shaft diameter: 25 mm (0.984 in)
- Inboard splines: 34
- Outboard splines: 26
- Axle nut thread: M22x1.5
- Axle nut socket size: 32 mm (1.26 in)
- Axle nut length: 20 mm (0.787 in)
Build and materials
- Shaft material: steel
- Boot: neoprene, 3 ribs
- Axle nut: hex, included
- CV joints: included
- ABS tone ring: not included
- Condition: new
- Country of origin: China
In the box
One complete CV axle with its hex axle retaining nut and an instruction sheet. The ABS tone ring is not included.
Installation notes
- Remove and install one axle at a time.
- Tighten the axle nut with a torque wrench to the manufacturer's specification, never an impact wrench.
- Install new transaxle seals to avoid leaks.
- Do not let the axle hang unsupported, which can separate it and damage the inner joint.
Interchange: 31607514479 · 31607574852
Frequently Asked Questions
Does the A1 CARDONE 66-9279 fit the front left side of the 2002-2008 Mini Cooper?
Yes. A1 CARDONE 66-9279 is the front left CV axle for the 2002-2008 Mini Cooper, with one needed on this side. The front right is a separate part.
Does the A1 CARDONE CV drive axle come with a new axle nut?
Yes. The box has the complete axle, its hex axle retaining nut and an instruction sheet. The ABS tone ring is not included.
What thread and socket size does the axle nut on this CV axle use?
The nut supplied with A1 CARDONE 66-9279 has an M22x1.5 thread and takes a 32 mm (1.26 in) socket. It is 20 mm (0.787 in) long.
How can I check the boots on this front left CV axle?
With the engine off, look for a split neoprene boot or grease spattered on nearby suspension parts. A shop can test the joint itself for play or noise.
What should I do with the old locking-style axle nut when installing this axle?
Discard the old nut and install the new nut supplied with A1 CARDONE 66-9279. A prevailing torque lock nut should never go back on.
