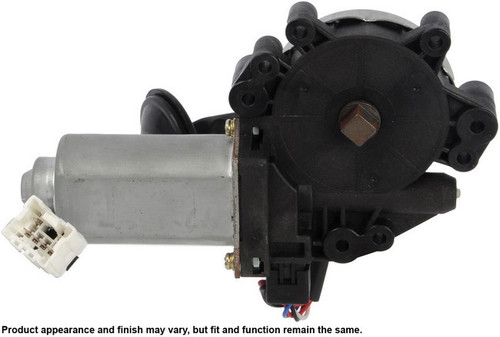

A1 CARDONE 82-1383 front right window motor for the 2004-2008 Nissan Maxima raises and lowers the front right door glass. This A1 CARDONE window motor is a new unit with anti-pinch, one-touch close operation.
- Gears made from a stronger, less brittle material to resist wear, stripping and breakage
- Load tested to confirm performance
- Brushes designed so the armature and contacts are properly matched
- Assembled with a measured amount of lubricant for quiet operation and long life
- Magnets supply the torque to handle extreme weather and worn parts in the window lift system
- Extra-torque design to cope with an improperly lubricated window lift regulator
Quick facts
- Part: A1 CARDONE 82-1383 window motor
- Fits: 2004-2008 Nissan Maxima
- Position: Front Right
- Condition: New
A window that moves slowly, stops partway or makes noise in the door can mean the motor is wearing out. Before replacing it, look over the door connector and wiring for damage and check the window fuse with the ignition off; a worn regulator or a bad switch can also stall a window.
Fits
This window motor is a direct-fit replacement for the 2004-2008 Nissan Maxima, front right door.
Specifications
Fit and size
- Position: Front Right
- Quantity per vehicle: 1
- Number of mounting holes: 3
- Terminal quantity: 6
- Splined input shaft: 12
Build and materials
- Condition: New
- Attachment method: Bolt on
- Mounting type: Threaded insert
- Connection: Plug-in, wiring harness included
- Electronics: Circuit board
- Country of origin: China
In the box
One window motor, a wiring harness and an instruction sheet. This listing is one front right motor, and the 2004-2008 Nissan Maxima takes one for that door; motors for other doors are ordered separately. The regulator, bracket and mounting hardware are not included, so plan on new hardware rather than reusing old pieces.
Installation notes
- Bolt-on mounting with a plug-in electrical connection.
- An instruction sheet comes with the motor for the steps.
Interchange: 807307Y000
Frequently Asked Questions
Is this A1 CARDONE 82-1383 window motor right for the 2004-2008 Nissan Maxima?
Yes. A1 CARDONE 82-1383 is a front right window motor for the 2004-2008 Nissan Maxima, and the front right door takes one.
Does the A1 CARDONE 82-1383 come with the wiring harness and regulator?
Yes to the wiring harness, no to the regulator. A1 CARDONE 82-1383 comes with the window motor, harness and instruction sheet; the bracket and mounting hardware are not included.
How many mounting holes and terminals does this front right window motor have?
It has 3 mounting holes and 6 terminals, and the splined input shaft is listed as 12. It bolts on and mounts with a threaded insert.
How do I tell if this front right window motor is wearing out?
A window that crawls, stalls partway or grinds in the door can be a sign of a worn motor. If the motor is the cause, this unit replaces it, and its gears resist wear and stripping.
Is this window motor an anti-pinch type?
Yes. This window motor has anti-pinch operation and one-touch close, with a circuit board in the unit.
