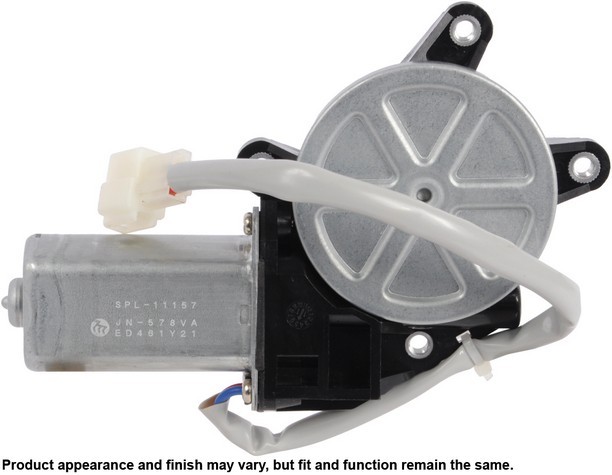

A1 CARDONE 82-4112 window motor for the 1998-2008 Subaru Forester and other vehicles drives the window regulator that raises and lowers the glass. This new window motor suits the front left, front right and rear right window positions.
- Gears made from a stronger, less brittle material to resist premature wear, stripping and breakage
- A1 CARDONE window motors are load tested for consistent performance
- Brushes designed so the armature and contacts are properly matched
- Assembled with a measured amount of lubricant for quiet operation and long life
- Magnets deliver the torque needed in extreme weather and to make up for other worn window lift parts
- Extra-torque motor design to prevent failure when a window lift regulator is poorly lubricated
Quick facts
- Part: A1 CARDONE 82-4112 window motor
- Fits: 1998-2008 Subaru Forester and other vehicles
- Position: Front right, front left, rear right
- Condition: New
A window that moves slowly, stalls partway or stays put can point to a worn motor, though a worn regulator, a faulty switch or damaged wiring can produce those symptoms too. With the ignition off, look over the connector, wiring and window track for damage or binding before you replace the motor.
Fits
Listed for a wide range of Subaru and Saab models, it is a window motor for the 1998-2008 Subaru Forester, the 2000-2004 Subaru Outback and the 2002-2007 Subaru Impreza. Each window takes one motor, and this listing is a single motor, so a second window needs its own.
Specifications
Fit and size
- Position: front right, front left, rear right
- Quantity per application: 1
- Mounting holes: 4
- Splined input shaft: 12
- Terminal quantity: 2
Build and materials
- Condition: New
- Mounting type: threaded insert
- Gear: supplied
- Anti-pinch motor: no
- Country of origin: Taiwan
In the box
One window motor, a wiring harness and an instruction sheet. The regulator, bracket and mounting hardware are not included, and the old fasteners may not be reusable, so plan on new bolts.
Installation notes
- Plug-in electrical connection; the motor bolts on.
- The steps are on the instruction sheet that comes with the motor.
Interchange: 32007703 · 61188AE00A · 61188AE00B · 61188FE000 · 61188FE001 · 61188FE020 · 61188FE021 · 61188FE022 · 62113FC000 · 62188AE00A · 62188AE00B · 62188FE001 · 62188SA001 · 62188SA002 · 63113FC000 · 63113FC100
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
32007703, 61188AE00A, 61188AE00B, 61188FE000, 61188FE001, 61188FE020, 61188FE021, 61188FE022, 62113FC000, 62188AE00A, 62188AE00B, 62188FE001, 62188SA001, 62188SA002, 63113FC000, 63113FC100
Frequently Asked Questions
Is this a Subaru Outback window motor for the 2000-2004 years?
Yes. A1 CARDONE 82-4112 is listed for the 2000-2004 Subaru Outback, for the front left, front right and rear right window positions.
Does this work as a Subaru Forester window motor replacement for 1998-2008?
Yes. A1 CARDONE 82-4112 is listed for the 1998-2008 Subaru Forester, one motor per window. If your car is another model, look up its year in the "Vehicles it fits" section.
Does this window motor come with the regulator or a wiring harness?
It comes with a wiring harness and an instruction sheet. The regulator, bracket and mounting hardware are not included.
Is the 82-4112 a plug-in window motor, and how does it mount?
Yes, A1 CARDONE 82-4112 connects by plug-in. It bolts on through 4 mounting holes and has a threaded insert.
Why does my power window go up slowly or stop partway?
A worn motor can cause it, and so can a dry regulator or a bad switch. This window motor is built with extra torque for regulators that are poorly lubricated.
