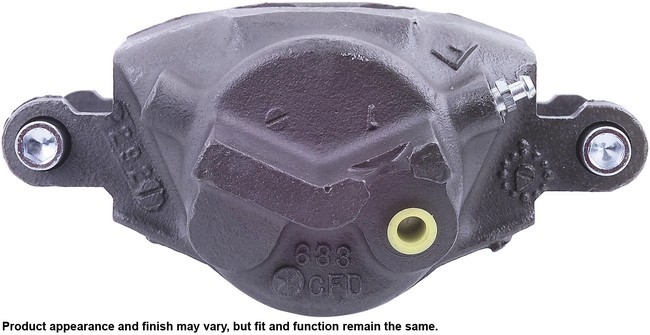

The A1 CARDONE 18-4044 front left brake caliper for the 1969 Chevrolet Camaro and other vehicles is a remanufactured, unloaded floating caliper that clamps the brake pads against the rotor.
- This A1 CARDONE brake caliper is remanufactured with brand-new components and 100% pressure-tested.
- The steel piston resists cracking and pitting and handles heavy loads.
- Rubber seals are replaced with new high temperature EPDM rubber.
- The caliper is treated with a rust inhibitor and kept in the original equipment finish.
- A new bleeder screw gives a positive seal, and a plastic cap plug covers each brake port thread.
A car that pulls to one side under braking, or brake fluid around the caliper, can mean a disc brake caliper is worn. Before you replace it, rule out sticky slides or pins and a collapsed brake hose, which can also make the car pull. This listing is a single caliper, and both front calipers are normally replaced together.
It is listed for a wide range of Chevrolet, Buick, Oldsmobile and Pontiac models, including the 1969-1974 Chevrolet Nova and the 1973-1974 Buick Apollo. The 1969 Chevrolet Camaro takes one at this position. If your car is not named here, look it up in the "Vehicles it fits" section.
Specifications
Fit and size
- Position: front left
- Quantity per vehicle: 1
- Piston quantity: 1
- Piston diameter: 74.548 mm (2.935 in)
- Mounting hole diameter: 17.97612 mm (0.708 in)
- Inlet port size: 11.09543 mm (0.437 in), banjo fitting, 7/16x20 thread
- Bleeder thread size: 3/8x24
Build and materials
- Type: floating, unloaded
- Condition: remanufactured
- Piston material: steel
- Casting material: cast iron
- Finish: oil emulsion, with a rust-resistant coating
- Casting number: 510
- Country of origin: Mexico
In the box
The caliper, an instruction sheet and a hardware kit. Brake pads, the mounting bracket, mounting bolts, abutment clips and the bleeder screw cap are not included, so plan on new mounting bolts, since the old ones may not be reusable.
Installation notes
- The instruction sheet in the box covers the installation steps.
- Programming is not required.
- Use the brake fluid the vehicle maker recommends; the type is stamped on the master cylinder reservoir lid.
- Silicone grease is used on floating caliper mounting pins.
Interchange: 5472433
This part cross-references / interchanges with the following part numbers:
Frequently Asked Questions
Will this front left Camaro brake caliper fit a 1969 Chevrolet Camaro?
Yes, the A1 CARDONE 18-4044 is listed for the 1969 Chevrolet Camaro at the front left position, one per car. For other cars, use the "Vehicles it fits" section.
Does the A1 CARDONE 18-4044 come with brake pads or a mounting bracket?
No. The A1 CARDONE 18-4044 comes with the caliper, instruction sheet and hardware kit; pads, bracket, mounting bolts, abutment clips and the bleeder screw cap are not included.
What size is the piston and inlet fitting on this caliper?
The piston is 74.548 mm (2.935 in) across, and the inlet is a banjo fitting with a 7/16x20 thread. The bleeder screw thread is 3/8x24.
What brake fluid and grease go with this caliper?
Use the fluid the vehicle maker recommends; its type is stamped on the master cylinder reservoir lid, and it should come from a sealed container. Floating caliper mounting pins take silicone grease.
Does this caliper have a steel or phenolic piston?
It has a steel piston. Swapping a steel-piston caliper for a phenolic one, or the reverse, is not recommended, because the original maker specified the piston type for the vehicle's intended use.
