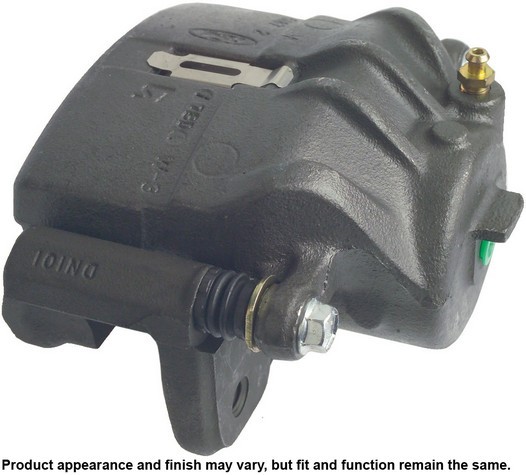

A1 CARDONE 18-B4383D front right brake caliper for the 1994-2000 Ford Taurus and other vehicles clamps the brake pads against the rotor to slow the wheel. This remanufactured A1 CARDONE brake caliper is an unloaded floating design with one piston and a bracket, so brake pads are not included.
- Remanufactured with brand-new components and 100% pressure-tested
- Steel piston that resists cracking and pitting
- Rubber seals replaced with new high temperature EPDM rubber
- Caliper treated with a special formulated rust inhibitor
- New bleeder screw for trouble-free bleeding and a positive seal
Quick facts
- Part: A1 CARDONE 18-B4383D brake caliper
- Also called: disc brake caliper
- Fits: 1994-2000 Ford Taurus and other vehicles
- Position: Front right
- Material: Cast iron
- Condition: Remanufactured
A worn disc brake caliper can show up as a pull to one side under braking, a sticking caliper or fluid around the piston boot. Before replacing the caliper, have the slide pins and the brake hose checked for binding or collapse as part of the brake service, since either can also pull a car to one side.
Fits
A wide range of Ford, Mercury and Lincoln models take this caliper, led by the 1994-2000 Ford Taurus, the 2000 Ford Sable and the 1994-2000 Mercury Sable, one on the front right wheel. This listing is one caliper, and the other side of that axle is normally done at the same time. For any other car, search the "Vehicles it fits" section on this page for its make, model and year.
Specifications
Fit and size
- Position: front right
- Quantity per vehicle: 1 on this wheel
- Piston quantity: 1
- Piston diameter: 2.593 in (65.8622 mm)
- Mounting hole diameter: 0.472 in (11.98408 mm)
- Mounting hole thread: M12x1.75
- Inlet port size: 0.394 in (10.00366 mm), banjo fitting, M10x1.5 thread
- Bleeder thread: M10x1.0
Build and materials
- Caliper type: floating
- Condition: remanufactured
- Casting material: cast iron
- Piston material: steel
- Finish: oil emulsion, with a rust-resistant coating
- Casting numbers: 5189, 5220
- Country of origin: Mexico
In the box
One caliper, bracket, hardware kit and instruction sheet, plus dust boots and an anti-rattle spring. Brake pads, mounting bolts, abutment clips and a bleeder screw cap are not included, so plan on new mounting bolts.
Installation notes
- A plastic cap plug protects every brake port thread.
- Follow the included instruction sheet for the steps.
- Silicone grease is used on floating caliper mounting pins.
- Use new brake fluid from a sealed container, of the type stamped on the master cylinder reservoir lid.
Interchange: F4DZ2B120A · F4DZ2B120B
Frequently Asked Questions
Is this a 1994-2000 Ford Taurus brake caliper for the front right?
Yes. A1 CARDONE 18-B4383D fits the 1994-2000 Ford Taurus on the front right. The front left takes its own caliper.
Is this a 1994-2000 Mercury Sable brake caliper for the right front wheel?
Yes. This caliper is the right-front part for the 1994-2000 Mercury Sable, one per wheel. The left front is ordered separately.
What comes with this A1 CARDONE caliper besides the caliper itself?
The box has the caliper, bracket, hardware kit and instruction sheet. Brake pads, mounting bolts, abutment clips and a bleeder screw cap are not included.
How many pistons does this floating brake caliper have, and what are they made of?
This front right caliper has one steel piston, 2.593 in (65.8622 mm) in diameter.
What grease goes on the mounting pins of this floating caliper?
Silicone grease is used on floating caliper mounting pins. An instruction sheet comes in the box with A1 CARDONE 18-B4383D.
