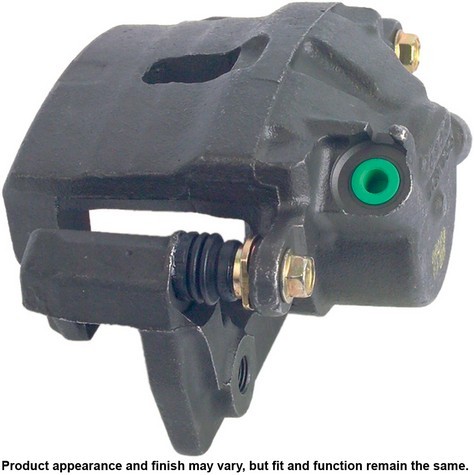

A1 CARDONE 18-B4737 front left brake caliper for the 1999-2004 Chevrolet Tracker and other vehicles presses the pads against the rotor to slow the wheel. This remanufactured A1 CARDONE caliper is an unloaded floating disc brake caliper that comes with its bracket.
- Remanufactured with brand-new components and 100% pressure-tested
- Steel piston resistant to cracking and pitting, 53.7972 mm (2.118 in) across
- Rubber seals replaced with new high-temperature EPDM rubber
- Rust inhibitor treatment with an oil emulsion finish
- New bleeder screw for trouble-free bleeding and a positive seal
Quick facts
- Part: A1 CARDONE 18-B4737 brake caliper
- Also called: disc brake caliper
- Fits: 1999-2004 Chevrolet Tracker and other vehicles
- Position: Front left
- Material: Cast iron caliper body, steel piston
- Condition: Remanufactured
A sticking or leaking caliper can show up as the car pulling to one side under braking, brake fluid around the caliper or uneven pad wear. A collapsed brake hose or a binding slide pin can pull the car the same way, so during the brake service, look the pins and hoses over with the engine off and cool before you replace the caliper. This listing is one caliper for the front left wheel; the front right is a separate caliper ordered on its own, and the two are normally replaced together.
Fits
It fits the 1999-2004 Chevrolet Tracker and the 1999-2004 Suzuki Vitara.
Specifications
Fit and size
- Position: front left
- Quantity per application: 1
- Piston diameter: 53.7972 mm (2.118 in), 1 piston
- Mounting hole diameter: 11.98408 mm (0.472 in)
- Mounting hole thread: M12x1.25
- Inlet port: banjo fitting, M10x1.0 thread, 10.00366 mm (0.394 in)
- Bleeder thread: M10x1.0
Build and materials
- Caliper type: floating, unloaded
- Caliper casting material: cast iron
- Piston material: steel
- Finish: oil emulsion, with rust-resistant coating
- Condition: remanufactured
- Country of origin: Mexico
In the box
One caliper with its bracket, a hardware kit, the bleeder screw, dust boots and an instruction sheet. Pads and mounting bolts are not included, so plan on new mounting bolts.
Installation notes
- Plastic cap plugs protect the brake port threads.
- No programming is required.
- Use the brake fluid the vehicle maker specifies; the type is stamped on the master cylinder reservoir lid.
Interchange: 30021028 · 91177048
Frequently Asked Questions
Is this a Vitara brake caliper that fits the 1999-2004 Suzuki Vitara?
Yes. A1 CARDONE 18-B4737 is a front left caliper that fits the 1999-2004 Suzuki Vitara and the 1999-2004 Chevrolet Tracker.
Are brake pads included with this A1 CARDONE brake caliper?
No. A1 CARDONE 18-B4737 comes with its bracket, hardware kit and instruction sheet, but not pads or mounting bolts.
What size is the piston on this front left caliper?
It has one steel piston, 53.7972 mm (2.118 in) across, in a floating caliper.
What does it mean when the car pulls to one side while braking?
A caliper that binds can be one reason, but hoses and steering or suspension parts can also cause it. Have the brakes inspected promptly.
What grease goes on the mounting pins of a floating caliper like this?
Silicone grease is used on floating caliper mounting pins. The instruction sheet that comes with the caliper covers the steps.
