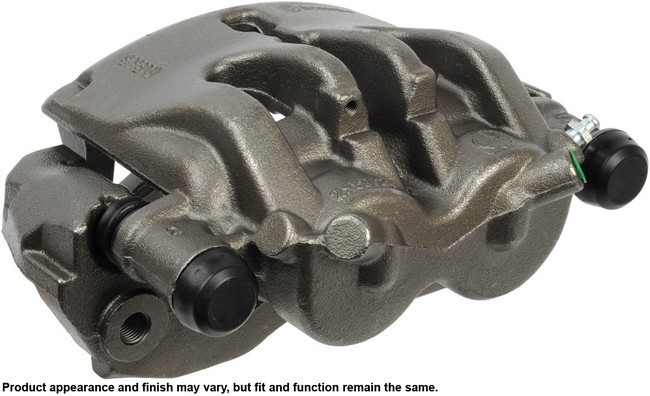

A1 CARDONE 18-B5088 front left brake caliper for the 2010-2018 Mercedes-Benz Sprinter 3500 and other vehicles clamps the brake pads against the rotor to slow the wheel. This remanufactured A1 CARDONE brake caliper is unloaded, so the pads are bought separately.
- Brand-new components go into the remanufacture, and every unit is 100% pressure-tested
- Steel pistons resistant to cracking and pitting, two per caliper
- Rubber seals replaced with new high-temperature EPDM rubber
- Caliper treated with a specially formulated rust inhibitor
- New bleeder screw for trouble-free bleeding and a positive seal
- Plastic cap plugs protect every brake port thread
Quick facts
- Part: A1 CARDONE 18-B5088 brake caliper
- Also called: disc brake caliper
- Fits: 2010-2018 Mercedes-Benz Sprinter 3500 and other vehicles
- Position: Front left
- Material: Cast iron caliper, steel pistons
- Condition: Remanufactured
Pulling to one side, fluid around the caliper or uneven pad wear can mean a caliper is failing. A sticking slide pin, a restricted brake hose or worn pads can be behind those signs too, so find the cause before buying. Replace the front calipers as a pair, one on each side of the axle; this listing is the front left, and the front right is a separate part.
Fits
The 2010-2018 Mercedes-Benz Sprinter 3500, the 2018 Mercedes-Benz Sprinter 3500XD and the 2007-2018 Freightliner Sprinter 3500 take this brake caliper as a direct-fit replacement, and it fits more vehicles besides. If your vehicle is not named here, look it up in the "Vehicles it fits" section.
Specifications
Fit and size
- Position: Front left
- Quantity per vehicle position: 1
- Piston diameter: 51.9176 mm (2.044 in)
- Inlet port size: 10.00366 mm (0.394 in)
- Inlet fitting: inverted flare, M10x1.0 thread
- Mounting hole diameter: 13.98989 mm (0.551 in), thread M14 X 1.5
- Bleeder thread size: M10x1.0
Build and materials
- Caliper type: Floating, unloaded
- Piston quantity: 2
- Caliper casting material: Cast iron
- Piston material: Steel
- Finish: Oil emulsion, with a rust-resistant coating
- Condition: Remanufactured
- Country of origin: Mexico
In the box
One caliper with its bracket, a hardware kit and an instruction sheet. Brake pads, mounting bolts and a pad wear sensor are not included, so plan on new mounting bolts because the old ones may not be reusable.
Installation notes
- The instruction sheet in the box covers the installation steps.
- A silicone grease is used on floating caliper mounting pins.
- Use the brake fluid the vehicle maker specifies, stamped on the master cylinder reservoir lid, from a new sealed container.
Interchange: 0044205783
This part cross-references / interchanges with the following part numbers:
Frequently Asked Questions
Is this A1 CARDONE caliper right for the 2018 Mercedes-Benz Sprinter 3500XD?
Yes. A1 CARDONE 18-B5088 fits the 2018 Mercedes-Benz Sprinter 3500XD, and the 2007-2018 Freightliner Sprinter 3500 as well. This one is the front left.
Does this remanufactured caliper come with the bracket and a bleeder screw?
Yes. The caliper arrives with its bracket, a hardware kit and an instruction sheet, plus a new bleeder screw. Brake pads and mounting bolts are not included.
What size are the pistons on A1 CARDONE 18-B5088?
This front left floating caliper has two steel pistons, each 51.9176 mm (2.044 in) in diameter. Its inlet port measures 10.00366 mm (0.394 in).
What are the signs of a sticking front left caliper?
Pulling to one side under braking, uneven pad wear or brake fluid around the caliper can all be signs. Brakes are safety-critical, so have it inspected promptly rather than driving on it.
What grease goes on the mounting pins of this disc brake caliper?
A silicone grease is used on floating caliper mounting pins, and A1 CARDONE 18-B5088 is a floating caliper. The instruction sheet in the box covers the installation steps.
