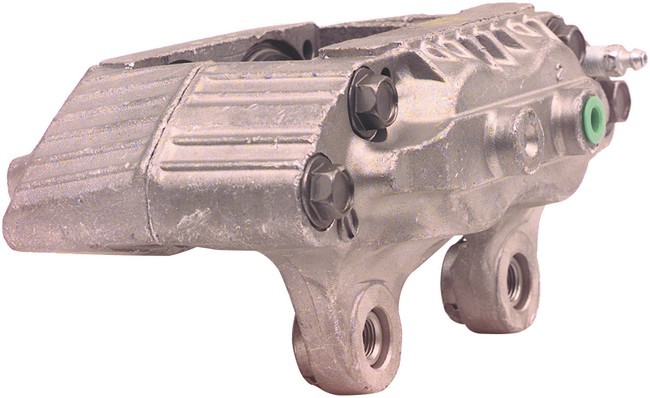

A1 CARDONE 19-1397 front right brake caliper for the 1990 Nissan 300ZX squeezes the brake pads against the rotor to slow the wheel. This is a remanufactured, unloaded caliper, so it comes without brake pads.
- Remanufactured with brand-new components and 100% pressure-tested
- Pistons resist cracking and pitting and handle great loads
- Rubber seals replaced with new high temperature EPDM rubber
- Special formulated rust inhibitor treatment on the caliper
- New bleeder screw for trouble-free bleeding and a positive seal
Quick facts
- Part: A1 CARDONE 19-1397 brake caliper
- Also called: disc brake caliper
- Fits: 1990 Nissan 300ZX
- Position: Front right
- Material: Aluminum caliper casting, steel pistons
- Condition: Remanufactured
A car that pulls to one side when braking, or brake fluid around the caliper, can mean a caliper is sticking or leaking. A collapsed brake hose, worn pads or suspension parts can also produce that pull, so look over the caliper and hose with the engine off for leaks or cracks before replacing it. Front calipers are normally replaced as a pair, and this listing is one front right caliper.
Fits
This front right unit is one of the 1990 Nissan 300ZX calipers and installs as a direct-fit replacement for that side. The front left is a separate part.
Specifications
Fit and size
- Position: Front right
- Quantity per vehicle: 1
- Piston quantity: 4
- Piston diameter: 40.3606 mm (1.589 in)
- Mounting hole diameter: 10.73997 mm (0.423 in)
- Inlet port size: 10.00366 mm (0.394 in), flare fitting
- Inlet thread size: M10x1.0
- Bleeder thread size: M10x1.0
Build and materials
- Condition: Remanufactured
- Caliper type: Fixed
- Caliper casting material: Aluminum
- Piston material: Steel
- Caliper finish: Oil emulsion
- Country of origin: Mexico
In the box
One caliper with a hardware kit, a bleeder screw, dust boots and an instruction sheet. The 1990 Nissan 300ZX takes one caliper on this front right side. Brake pads, the mounting bracket and mounting bolts are not included, so plan on new mounting bolts.
Installation notes
- The instruction sheet comes with the caliper.
- A plastic cap plug protects each brake port thread.
- Programming is not required.
- Use new brake fluid from a sealed container, of the type stamped on the master cylinder reservoir lid.
Interchange: 4100130P00RE
This part cross-references / interchanges with the following part numbers:
Frequently Asked Questions
Is this one of the 1990 Nissan 300ZX front calipers for the right side?
Yes. A1 CARDONE 19-1397 is the front right brake caliper for the 1990 Nissan 300ZX. The front left side is ordered as a separate part.
What comes with the A1 CARDONE caliper?
A1 CARDONE 19-1397 comes with the caliper, a hardware kit, a bleeder screw, dust boots and an instruction sheet. The mounting bracket, mounting bolts and brake pads are not included.
What piston size does this A1 CARDONE brake caliper have?
This caliper has four steel pistons with a piston diameter of 40.3606 mm (1.589 in). Its inlet thread size is M10x1.0.
Does this disc brake caliper arrive with new seals?
Yes. The rubber seals are replaced with new high temperature EPDM rubber, and each remanufactured unit is 100% pressure-tested.
Does this remanufactured caliper need programming or a certain brake fluid?
No programming is required. Use the brake fluid type stamped on the master cylinder reservoir lid, from a new sealed container.
