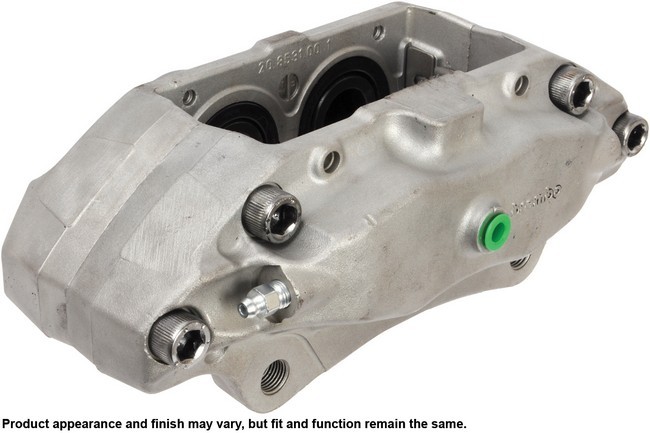

A1 CARDONE 19-2892 front brake caliper for the 2004-2008 Acura TL squeezes the brake pads against the rotor to slow the wheel. This remanufactured, unloaded unit is sold as one of the 2004-2008 Acura TL calipers, so pads and a bracket are not part of it.
- 100% pressure-tested after remanufacturing
- Steel pistons resistant to cracking and pitting
- New high-temperature EPDM rubber seals replace the originals
- Rust-inhibitor treatment on the caliper body
- New bleeder screws for trouble-free bleeding and a positive seal
Quick facts
- Part: A1 CARDONE 19-2892 brake caliper
- Also called: disc brake caliper
- Fits: 2004-2008 Acura TL
- Position: Front left, front right
- Material: Aluminum caliper casting, steel pistons
- Condition: Remanufactured
A sticking or leaking disc brake caliper can show as a pull to one side under braking, fluid at a wheel or uneven pad wear. Worn pads, a collapsed brake hose or a worn rotor can cause those signs too, so find the cause before buying. The front axle takes one caliper per side; this listing is one caliper, and both sides are normally replaced together.
Fits
It is a direct-fit replacement for the 2004-2008 Acura TL.
Specifications
Fit and size
- Position: front left, front right
- Quantity per application: 1
- Piston diameter: 41.96 mm (1.652 in)
- Mounting hole diameter: 13.99 mm (0.551 in)
- Mounting hole thread: M14 X 1.5
- Inlet port size: 10.00 mm (0.394 in)
- Inlet fitting: inverted flare, M10x1.0 thread
- Bleeder thread size: M10x1.0
Build and materials
- Condition: remanufactured, unloaded
- Caliper type: fixed, 4 pistons
- Caliper casting material: aluminum
- Piston material: steel
- Finish: oil emulsion, with a rust-resistant coating
- Casting number: 20.8532.00 1
- Country of origin: Mexico
In the box
One remanufactured brake caliper, an instruction sheet and a hardware kit. Brake pads, a mounting bracket and mounting bolts are not included, so plan on new mounting bolts rather than reusing the old ones.
Installation notes
- A plastic cap plug covers each brake port thread.
- Programming is not required.
- The instruction sheet in the box covers the installation steps.
Interchange: 45018SEPA50 · 45019SEPA60
This part cross-references / interchanges with the following part numbers:
Frequently Asked Questions
Does the A1 CARDONE 19-2892 fit the left and right front of a 2004-2008 Acura TL?
Yes. The A1 CARDONE 19-2892 is listed for both the front left and front right of the 2004-2008 Acura TL, with one caliper per side. This listing is a single caliper.
Yes. A1 CARDONE 19-2892 is listed for the front left and front right of the 2004-2008 Acura TL, one caliper per side. This listing is a single caliper.
Does this A1 CARDONE brake caliper include pads or a mounting bracket?
No. The 19-2892 comes with an instruction sheet and a hardware kit, but brake pads, a mounting bracket and mounting bolts are not included.
No. The A1 CARDONE 19-2892 comes with the caliper, an instruction sheet and a hardware kit. The mounting bracket, mounting bolts and brake pads are not included.
Does the A1 CARDONE brake caliper come with a mounting bracket?
No. The 19-2892 comes with an instruction sheet and a hardware kit, but brake pads, a mounting bracket and mounting bolts are not included.
No. The A1 CARDONE 19-2892 comes with the caliper, an instruction sheet and a hardware kit. The mounting bracket, mounting bolts and brake pads are not included.
What new parts come with this remanufactured disc brake caliper?
The seals are new high-temperature EPDM rubber, and the A1 CARDONE 19-2892 comes with new bleeder screws and a hardware kit. Every unit also goes through a 100% pressure test.
The four pistons are steel, 41.96 mm (1.652 in) across. Swapping between steel and phenolic pistons is not recommended; follow the vehicle manufacturer's recommendation.
What are the pistons made of on this caliper?
The seals are new high-temperature EPDM rubber, and the A1 CARDONE 19-2892 comes with new bleeder screws and a hardware kit. Every unit also goes through a 100% pressure test.
The four pistons are steel, 41.96 mm (1.652 in) across. Swapping between steel and phenolic pistons is not recommended; follow the vehicle manufacturer's recommendation.
What thread size are the bleeder screw and brake line inlet on this caliper?
Both are M10x1.0. The inlet has an inverted flare fitting and a 10.00 mm (0.394 in) port size.
Look for brake fluid around the caliper and for uneven pad wear during a brake service, with the engine off and cool. A shop can confirm a leak or a sticking caliper.
How can I tell if this front caliper is leaking or sticking?
Both are M10x1.0. The inlet has an inverted flare fitting and a 10.00 mm (0.394 in) port size.
Look for brake fluid around the caliper and for uneven pad wear during a brake service, with the engine off and cool. A shop can confirm a leak or a sticking caliper.
Does this caliper need programming, and what brake fluid should I use?
No programming is required. Use the brake fluid type stamped on the master cylinder reservoir lid, from a new sealed container.
Use the fluid the vehicle manufacturer recommends; the type is stamped on the master cylinder reservoir lid. Always use new fluid from a sealed container.
What brake fluid goes with this caliper: DOT 3, DOT 4 or DOT 5?
No programming is required. Use the brake fluid type stamped on the master cylinder reservoir lid, from a new sealed container.
Use the fluid the vehicle manufacturer recommends; the type is stamped on the master cylinder reservoir lid. Always use new fluid from a sealed container.
Frequently Asked Questions
Does the A1 CARDONE 19-2892 caliper fit both sides of the 2004-2008 Acura TL?
Yes. The A1 CARDONE 19-2892 is listed for both the front left and front right of the 2004-2008 Acura TL, with one caliper per side. This listing is a single caliper.
Yes. A1 CARDONE 19-2892 is listed for the front left and front right of the 2004-2008 Acura TL, one caliper per side. This listing is a single caliper.
Does this A1 CARDONE brake caliper include pads or a mounting bracket?
No. The 19-2892 comes with an instruction sheet and a hardware kit, but brake pads, a mounting bracket and mounting bolts are not included.
No. The A1 CARDONE 19-2892 comes with the caliper, an instruction sheet and a hardware kit. The mounting bracket, mounting bolts and brake pads are not included.
Does the A1 CARDONE brake caliper come with a mounting bracket?
No. The 19-2892 comes with an instruction sheet and a hardware kit, but brake pads, a mounting bracket and mounting bolts are not included.
No. The A1 CARDONE 19-2892 comes with the caliper, an instruction sheet and a hardware kit. The mounting bracket, mounting bolts and brake pads are not included.
What new parts come with this remanufactured disc brake caliper?
The seals are new high-temperature EPDM rubber, and the A1 CARDONE 19-2892 comes with new bleeder screws and a hardware kit. Every unit also goes through a 100% pressure test.
The four pistons are steel, 41.96 mm (1.652 in) across. Swapping between steel and phenolic pistons is not recommended; follow the vehicle manufacturer's recommendation.
What are the pistons made of on this caliper?
The seals are new high-temperature EPDM rubber, and the A1 CARDONE 19-2892 comes with new bleeder screws and a hardware kit. Every unit also goes through a 100% pressure test.
The four pistons are steel, 41.96 mm (1.652 in) across. Swapping between steel and phenolic pistons is not recommended; follow the vehicle manufacturer's recommendation.
What thread size are the bleeder screw and brake line inlet on this caliper?
Both are M10x1.0. The inlet has an inverted flare fitting and a 10.00 mm (0.394 in) port size.
Look for brake fluid around the caliper and for uneven pad wear during a brake service, with the engine off and cool. A shop can confirm a leak or a sticking caliper.
How can I tell if this front caliper is leaking or sticking?
Both are M10x1.0. The inlet has an inverted flare fitting and a 10.00 mm (0.394 in) port size.
Look for brake fluid around the caliper and for uneven pad wear during a brake service, with the engine off and cool. A shop can confirm a leak or a sticking caliper.
Does this caliper need programming, and what brake fluid should I use?
No programming is required. Use the brake fluid type stamped on the master cylinder reservoir lid, from a new sealed container.
Use the fluid the vehicle manufacturer recommends; the type is stamped on the master cylinder reservoir lid. Always use new fluid from a sealed container.
What brake fluid goes with this caliper: DOT 3, DOT 4 or DOT 5?
No programming is required. Use the brake fluid type stamped on the master cylinder reservoir lid, from a new sealed container.
Use the fluid the vehicle manufacturer recommends; the type is stamped on the master cylinder reservoir lid. Always use new fluid from a sealed container.
