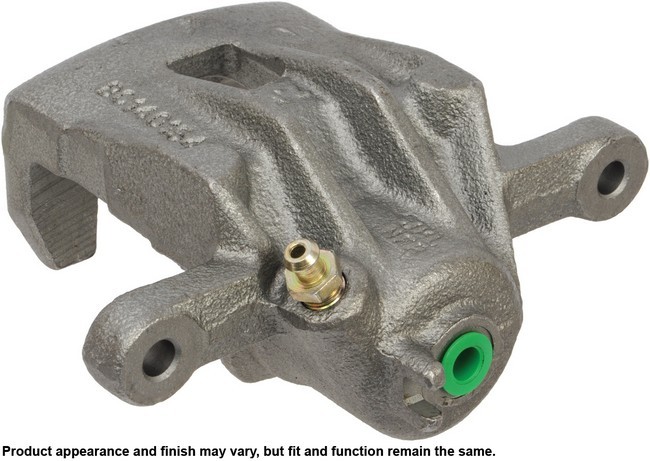

A1 CARDONE 19-3412 rear right brake caliper for the 2008-2010 Hyundai Sonata and other vehicles clamps the pads against the rotor to slow the wheel. This remanufactured disc brake caliper is a floating, single-piston unit that comes unloaded, so brake pads are separate.
- Remanufactured with brand-new components, each unit 100% pressure-tested
- Steel piston that resists cracking and pitting and handles heavy loads
- Rubber seals replaced with new high-temperature EPDM rubber
- Caliper treated with a formulated rust inhibitor
- New bleeder screw for trouble-free bleeding and a positive seal
Quick facts
- Part: A1 CARDONE 19-3412 brake caliper
- Also called: disc brake caliper
- Fits: 2008-2010 Hyundai Sonata and other vehicles
- Position: Rear right
- Material: Cast iron
- Condition: Remanufactured
A sticking or leaking caliper can show up as the car pulling to one side when braking, or one pad wearing faster than the other. Binding slide pins or a restricted brake hose can lead to some of the same symptoms, so inspect the pins, hoses and pad wear during a brake service to find the real cause first.
Fits
It fits the 2008-2010 Hyundai Sonata and the 2010-2011 Hyundai Azera. This listing is one caliper for the rear right; each rear wheel takes its own, so the rear left is a separate part and the two are normally replaced together on that axle.
Specifications
Fit and size
- Position: Rear right
- Quantity per application: 1
- Piston diameter: 33.909 mm (1.335 in)
- Inlet port size: 0.394 in (10.00366 mm)
- Inlet fitting: Banjo, M10x1.0 thread
- Bleeder thread size: M10x1.0
- Mounting hole and thread diameter: 0.315 in (7.99785 mm)
Build and materials
- Condition: Remanufactured
- Caliper type: Floating, 1 piston
- Caliper casting material: Cast iron
- Piston material: Steel
- Finish: Oil emulsion with a rust-resistant coating
- Country of origin: Mexico
In the box
One caliper, a hardware kit with abutment clips and dust boots, and an instruction sheet. The mounting bracket, brake pads and mounting bolts are not included, so plan on new mounting bolts.
Installation notes
- A plastic cap plug protects each brake port thread.
- The instruction sheet in the box covers the steps.
- Use the brake fluid the vehicle maker recommends; the type is stamped on the master cylinder reservoir lid, and it should come from a new, sealed container.
Interchange: 582303L200 · 583113KA11 · 583113KA20
This part cross-references / interchanges with the following part numbers:
582303L200, 583113KA11, 583113KA20
Frequently Asked Questions
Is this the right caliper for the 2008-2010 Hyundai Sonata?
Yes, A1 CARDONE 19-3412 is the rear right caliper for the 2008-2010 Hyundai Sonata, and it also fits the 2010-2011 Hyundai Azera.
Is this A1 CARDONE brake caliper sold with brake pads?
No, A1 CARDONE 19-3412 is an unloaded caliper, so the pads and the mounting bracket are not included; the box holds the caliper, a hardware kit and an instruction sheet.
Does 19-3412 replace part number 583113KA11?
Yes. 583113KA11 is one of the numbers this A1 CARDONE 19-3412 caliper replaces, along with 582303L200 and 583113KA20.
What grease goes on the mounting pins of this floating caliper?
A silicone grease is used on floating caliper mounting pins, and this rear right caliper is a floating type.
Can I swap a phenolic-piston caliper for this steel-piston one?
No. The vehicle maker specified steel or phenolic pistons for the intended use, so follow its recommendation; this caliper has a steel piston.
