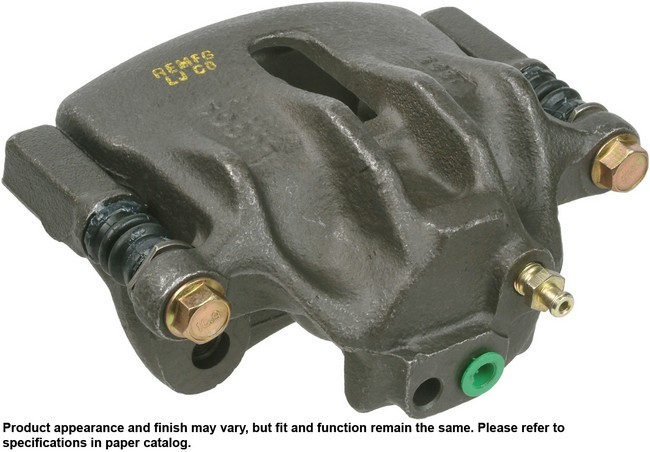

A1 CARDONE 19-B2065 rear left brake caliper for the 1999-2004 Land Rover Discovery and other vehicles clamps the brake pads against the rotor to slow the wheel. This remanufactured unit is unloaded, so pads are not included, and it comes with its mounting bracket.
- Remanufactured with brand-new components and 100% pressure-tested
- Steel piston that resists cracking and pitting and handles great loads
- New high-temperature EPDM rubber seals replace the old ones
- Rust inhibitor treatment on the casting, with an oil emulsion finish
- New bleeder screw for trouble-free bleeding and a positive seal
Quick facts
- Part: A1 CARDONE 19-B2065 brake caliper
- Also called: disc brake caliper
- Fits: the 1999-2004 Land Rover Discovery and other vehicles
- Position: Rear left
- Material: Cast iron (caliper body), steel (piston)
- Condition: Remanufactured
Pulling to one side under braking or a brake that drags can mean a caliper is sticking or failing. These signs alone do not prove the caliper is the problem; a collapsed brake hose is another common cause.
Fits
It is a direct-fit replacement for the 1999-2004 Land Rover Discovery and the 1995-2002 Land Rover Range Rover. This listing is one caliper for the rear left wheel, which takes one; the rear right is its own part, and the two sides are normally replaced together.
Specifications
Fit and size
- Position: Rear left
- Quantity per vehicle: 1 on this side
- Piston quantity: 1
- Piston diameter: 44.93 mm (1.769 in)
- Mounting hole diameter: 11.98 mm (0.472 in), thread M12x1.25
- Inlet port size: 10 mm (0.394 in), banjo fitting, thread M10x1.0
- Bleeder thread size: M10x1.0
Build and materials
- Caliper type: Floating
- Condition: Remanufactured
- Caliper body material: Cast iron
- Piston material: Steel
- Finish: Oil emulsion, with a rust-resistant coating
- Country of origin: Mexico
In the box
One caliper, a mounting bracket, a hardware kit and an instruction sheet. Brake pads and a pad wear sensor are not included. Mounting bolts are not included either, so plan on new ones.
Installation notes
- The instruction sheet in the box covers the steps.
- A plastic cap plug protects each brake port thread.
- A silicone grease is used on floating caliper mounting pins.
Interchange: STC1905
This part cross-references / interchanges with the following part numbers:
Frequently Asked Questions
Which side does this 1999-2004 Land Rover Discovery brake caliper go on?
A1 CARDONE 19-B2065 is the rear left caliper. The rear right side takes its own caliper.
Does this 1995-2002 Land Rover Range Rover brake caliper come with the mounting bracket?
Yes. This caliper comes with the mounting bracket, a hardware kit and an instruction sheet. Brake pads and mounting bolts are not included.
Is the piston in this A1 CARDONE caliper steel or phenolic?
The piston is steel, 44.93 mm (1.769 in) across. This is a floating caliper with one piston.
Which thread sizes does the A1 CARDONE brake caliper use?
A1 CARDONE 19-B2065 has an M10x1.0 banjo inlet, an M10x1.0 bleeder thread and an M12x1.25 mounting hole thread.
What signs can a sticking disc brake caliper show?
The car can pull to one side when braking, or the brake can drag. If you notice either, have a shop inspect it promptly.
