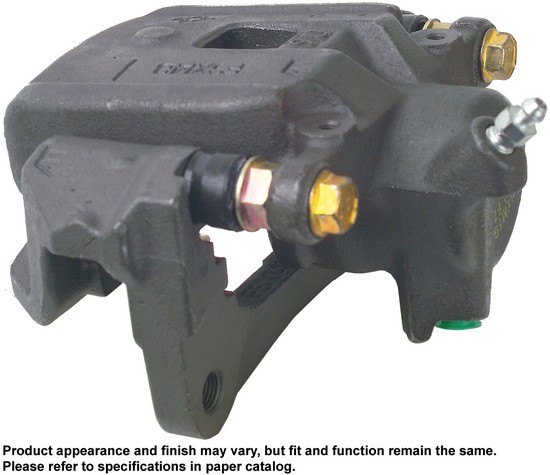

A1 CARDONE 19-B2630 rear left brake caliper for the 1999-2007 Toyota Land Cruiser and other vehicles clamps the brake pads against the rotor to slow the wheel. This remanufactured caliper is a floating design with one steel piston, and it comes unloaded with its bracket.
- Each caliper is 100% pressure-tested
- Steel piston that resists cracking and pitting and handles heavy loads
- Rubber seals replaced with new high temperature EPDM rubber
- Rust-resistant coating from a specially formulated rust inhibitor treatment
- New bleeder screw for trouble-free bleeding and a positive seal
- Plastic cap plug on every brake port thread
Quick facts
- Part: A1 CARDONE 19-B2630 brake caliper
- Also called: disc brake caliper
- Fits: 1999-2007 Toyota Land Cruiser and other vehicles
- Position: Rear left
- Material: Cast iron
- Condition: Remanufactured
A pull to one side under braking or a brake that drags can mean this caliper is worn or sticking, though a restricted brake hose or a binding slide pin may be behind it, so trace the cause first. Replace the calipers on an axle as a pair; this listing is one caliper for the rear left, and the rear right is ordered separately. The vehicle takes one at each side of the rear axle.
Fits
It is a direct-fit brake caliper for the 1999-2007 Toyota Land Cruiser and the 2000-2007 Lexus LX470.
Specifications
Fit and size
- Position: rear left
- Quantity per application: 1
- Piston diameter: 48.03 mm (1.891 in)
- Inlet port size: 10 mm (0.394 in), banjo fitting, M10x1.0 thread
- Mounting hole diameter: 11.98 mm (0.472 in), M12x1.25 thread
- Bleeder thread size: M10x1.0
Build and materials
- Type: floating, remanufactured
- Piston: 1, steel
- Caliper casting material: cast iron
- Finish: oil emulsion, with a rust-resistant coating
- Casting numbers: FSX14B L, FSX14B 2 AT
- Country of origin: Mexico
In the box
One remanufactured caliper with its bracket, a hardware kit and an instruction sheet. Brake pads and mounting bolts are not included, so plan on new mounting bolts.
Installation notes
- New banjo bolts, washers, stainless steel hardware clips and mounting pins are included where applicable.
- The instruction sheet gives the steps. No programming is required.
Interchange: 4775060101
This part cross-references / interchanges with the following part numbers:
Frequently Asked Questions
Does the 19-B2630 fit the 2000-2007 Lexus LX470?
Yes. A1 CARDONE 19-B2630 fits the 2000-2007 Lexus LX470 as the rear left caliper; the rear right takes a separate caliper.
Will this disc brake caliper arrive with its mounting bracket?
Yes. This A1 CARDONE 19-B2630 includes the bracket, a hardware kit and an instruction sheet. Brake pads and mounting bolts are not included.
Is the piston steel on this A1 CARDONE caliper?
Yes. It has one steel piston, 48.03 mm (1.891 in) in diameter, in a floating caliper with a cast iron body.
Can a sticking rear left caliper make the car pull to one side?
Yes, a sticking caliper can make the car pull toward one side while braking. Have a pull under braking inspected promptly rather than driving on it.
What grease goes on the mounting pins of this A1 CARDONE brake caliper?
A silicone grease is used on floating caliper mounting pins, and this rear left caliper is a floating design.
