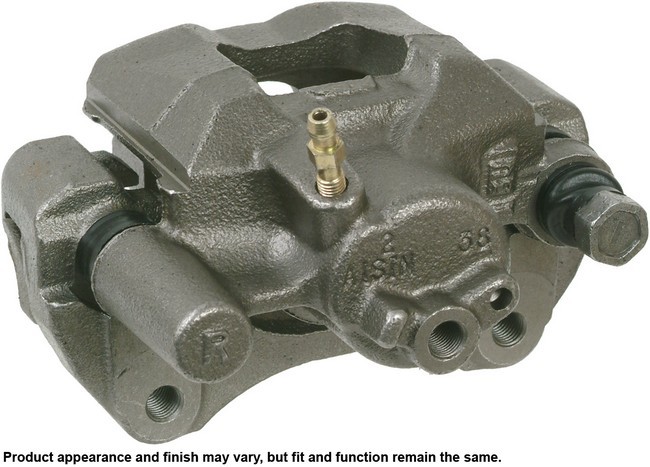

A1 CARDONE 19-B2684A rear right brake caliper for the 2001-2003 Toyota Highlander presses the pads against the rotor to slow the wheel. This remanufactured unit is a floating caliper with one piston, and it comes with its bracket.
- Remanufactured with brand-new components and 100% pressure-tested
- Steel piston that resists cracking and pitting and handles heavy loads
- Rubber seals replaced with new high-temperature EPDM rubber
- Special formulated rust inhibitor treatment on the caliper
- New bleeder screw for trouble-free bleeding and a positive seal
- Plastic cap plugs protect the brake port threads
Quick facts
- Part: A1 CARDONE 19-B2684A brake caliper
- Also called: disc brake caliper
- Fits: 2001-2003 Toyota Highlander
- Position: Rear right
- Material: Cast iron casting, steel piston
- Condition: Remanufactured
A binding or leaking disc brake caliper can show up as the car pulling to one side under braking, uneven pad wear or fluid around the piston boot. Sticky slide pins or a restricted brake hose can cause pulling too, so when the wheel is off for brake service, look over the pins, slides and hose before you replace the caliper.
Fits
It is a direct-fit replacement for the rear right of the 2001-2003 Toyota Highlander. This listing is one caliper; the 2001-2003 Toyota Highlander takes one at this position, the rear left is a separate part ordered on its own, and calipers are usually changed as a left and right pair.
Specifications
Fit and size
- Position: rear right
- Quantity per vehicle: 1
- Piston diameter: 38.0492 mm (1.498 in)
- Mounting hole diameter and thread diameter: 10.00366 mm (0.394 in)
- Mounting hole thread size: M10x1.25
- Inlet port size: 10.00366 mm (0.394 in)
- Inlet fitting: banjo, thread M10x1.0
- Bleeder thread size: M7x1.0
Build and materials
- Condition: remanufactured
- Caliper type: floating, with 1 steel piston
- Casting material: cast iron
- Finish: oil emulsion, with a rust-resistant coating
- Country of origin: Mexico
In the box
One brake caliper, a bracket, a hardware kit and an instruction sheet. Brake pads, mounting bolts and the bleeder screw cap are not included, so plan on new mounting bolts, as the old ones may not be reusable.
Installation notes
- An instruction sheet comes with the caliper for the installation steps.
- Use brake fluid of the type stamped on the master cylinder reservoir lid, poured from a new sealed container.
Interchange: 4773048040
Frequently Asked Questions
Is 19-B2684A the right 2001-2003 Toyota Highlander brake caliper replacement for the rear right?
Yes. A1 CARDONE 19-B2684A is the rear right caliper for the 2001-2003 Toyota Highlander, and that position takes one. The rear left is a separate part.
Does the A1 CARDONE brake caliper come with its bracket and hardware?
Yes. It comes with a bracket, a hardware kit and an instruction sheet. Brake pads, mounting bolts and the bleeder screw cap are not included.
Is the A1 CARDONE caliper floating or fixed?
It is a floating caliper with one steel piston that measures 38.0492 mm (1.498 in) across.
What grease goes on the mounting pins of a floating caliper like this?
A silicone grease is used on floating caliper mounting pins. Follow the instruction sheet that comes with the caliper for the rest of the steps.
Are these remanufactured brake calipers pressure-tested?
Yes. Every CARDONE remanufactured brake caliper, including the 19-B2684A, is 100% pressure-tested.
