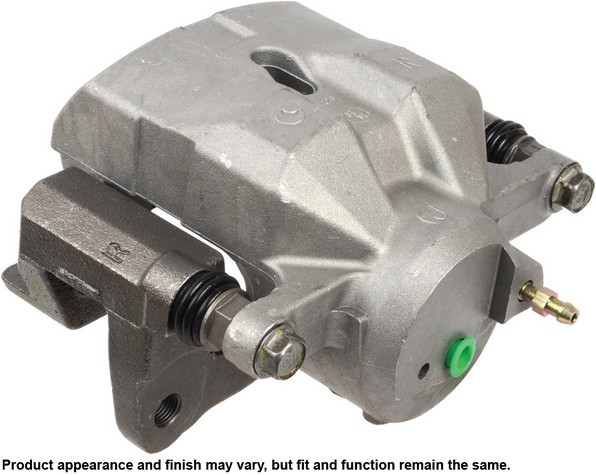

A1 CARDONE 19-B6273 front right brake caliper for the 2020-2022 Toyota Corolla and other vehicles clamps the brake pads against the rotor to slow the wheel. This remanufactured unit is an unloaded A1 CARDONE brake caliper with its bracket, and brake pads are not included.
- Remanufactured with new components, then 100% pressure-tested
- Phenolic piston, 57.2 mm in diameter, that resists cracking and pitting under load
- New high temperature EPDM rubber seals
- Rust inhibitor treatment on the caliper
- New bleeder screw for trouble-free bleeding and a positive seal, with plastic cap plugs on the brake port threads
Quick facts
- Part: A1 CARDONE 19-B6273 brake caliper
- Also called: disc brake caliper
- Fits: 2020-2022 Toyota Corolla and other vehicles
- Position: Front right
- Material: Aluminum (caliper casting), phenolic (piston)
- Condition: Remanufactured
A caliper that sticks or leaks can show up as the car pulling to one side, a brake that drags, or fluid around the piston. A sticking slide pin, a collapsed brake hose or a worn rotor can be behind those signs too, so find the cause before you buy a disc brake caliper. Calipers are normally replaced in pairs on the same axle, and this listing is one, for the front right; the front left is a separate part.
Fits
It is listed for a wide range of Toyota and Lexus models, led by the 2020-2022 Toyota Corolla, the 2010-2022 Toyota Prius and the 2019-2022 Toyota Prius AWD-e, and each takes one on the front right.
Specifications
Fit and size
- Position: Front right
- Quantity per vehicle: 1
- Caliper type: Floating, 1 piston
- Piston diameter: 57.2 mm (2.252 in)
- Inlet port: Banjo fitting, M10x1.0 thread, 0.394 in (10.00366 mm)
- Mounting hole: 0.394 in (10.00366 mm) diameter, M10x1.5 thread
- Bleeder thread size: M7x1.0
Build and materials
- Condition: Remanufactured, unloaded
- Caliper casting material: Aluminum
- Piston material: Phenolic
- Finish: Oil emulsion, with a rust resistant coating
- Country of origin: Mexico
In the box
One caliper with its mounting bracket, hardware kit, abutment clips, dust boots, pad wear sensor and instruction sheet. Brake pads and mounting bolts are not included; plan on new mounting bolts, since the old ones may not be reusable.
Installation notes
- An instruction sheet comes with the caliper for the installation steps.
- Silicone grease is used on floating caliper mounting pins.
- Use the brake fluid the vehicle maker recommends; the type is stamped on the master cylinder reservoir lid, and the fluid should come from a new sealed container.
Interchange: 4773047060
This part cross-references / interchanges with the following part numbers:
Frequently Asked Questions
Is this the right 2020-2022 Toyota Corolla caliper for the front right wheel?
Yes. A1 CARDONE 19-B6273 is listed for the front right of the 2020-2022 Toyota Corolla and for many other Toyota and Lexus models; look up your own car in the Vehicles it fits section.
Does the A1 CARDONE caliper come with brake pads?
No. A1 CARDONE 19-B6273 is unloaded, so brake pads and mounting bolts are not included. It does come with the mounting bracket, hardware kit and instruction sheet.
How many pistons does this floating caliper have, and what is the piston made of?
This floating caliper has one phenolic piston, 57.2 mm (2.252 in) in diameter. Swapping between phenolic and steel piston calipers is not recommended.
Can a sticking front caliper make a car pull to one side when braking?
Yes, it can. Pulling can also come from sticky slides or pins or a restricted brake hose, so have a shop inspect both calipers' slides and pins and the brake hoses.
Is 4773047060 the same part as this front right caliper?
Yes. 4773047060 is listed as an interchange number for A1 CARDONE 19-B6273, a remanufactured front right brake caliper.
