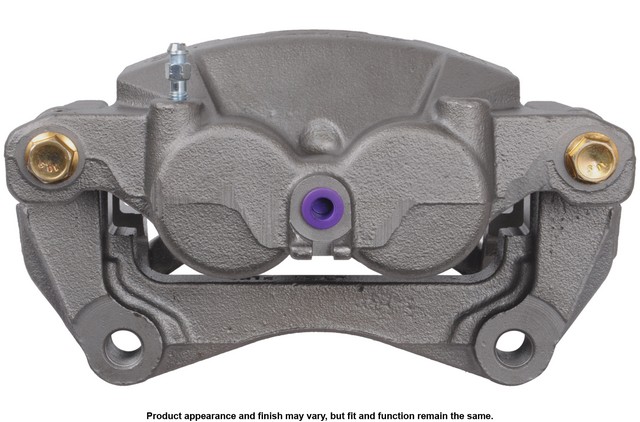

A1 CARDONE 19-B7146 front left brake caliper for the 2014-2019 Nissan Rogue and other vehicles clamps the brake pads against the rotor to slow the wheel. This remanufactured A1 CARDONE brake caliper is an unloaded floating design with two pistons and a bracket, so brake pads are not included.
- Remanufactured with new components and 100% pressure-tested
- Steel pistons that resist cracking and pitting and handle heavy loads
- New high-temperature EPDM rubber seals replace the old ones
- Caliper treated with a special rust inhibitor to resist rust
- New bleeder screw for trouble-free bleeding and a positive seal
- Plastic cap plug on every brake port thread protects the threads
Quick facts
- Part: A1 CARDONE 19-B7146 brake caliper
- Also called: disc brake caliper
- Fits: 2014-2019 Nissan Rogue and other vehicles
- Position: Front left
- Material: Cast iron
- Condition: Remanufactured
A disc brake caliper that sticks or leaks can show up as the car pulling to one side, fluid around the wheel or pads wearing unevenly. Those signs can have other causes, such as a collapsed brake hose, so during a brake service look at the slide pins and hoses for binding or restriction before replacing the caliper.
Fits
As a brake caliper for the 2014-2019 Nissan Rogue, it is also listed for the 2014-2023 Infiniti Q50 and the 2023 Nissan Z, among a wide range of Nissan and Infiniti models. This listing is one caliper for the front left wheel; the front right is a separate part, and both sides are normally replaced together. If your car is not named here, look it up in the "Vehicles it fits" section.
Specifications
Fit and size
- Position: Front left
- Quantity per vehicle: 1 (this position)
- Piston quantity: 2
- Piston diameter: 44.3484 mm (1.746 in)
- Mounting hole diameter: 13.98989 mm (0.551 in), thread M14 X 1.5
- Inlet port size: 10.00366 mm (0.394 in)
- Inlet fitting: Banjo, M10x1.0 thread
- Bleeder thread size: M7x1.0
Build and materials
- Type: Floating, unloaded, with bracket
- Casting material: Cast iron
- Piston material: Steel
- Finish: Oil emulsion, with a rust-resistant coating
- Condition: Remanufactured
- Country of origin: Mexico
In the box
One brake caliper with its bracket, a hardware kit with abutment clips, an anti-rattle spring, a bleeder screw and dust boots, and an instruction sheet. Brake pads, mounting bolts and a bleeder screw cap are not included, so plan on new mounting bolts.
Installation notes
- Follow the instruction sheet for the installation steps.
- A silicone grease is used on floating caliper mounting pins.
- Use the brake fluid the vehicle maker recommends, from a sealed container.
Interchange: 410114GA0A
Frequently Asked Questions
Do these Q50 brake calipers fit the 2014-2023 Infiniti Q50?
Yes, A1 CARDONE 19-B7146 is listed for the 2014-2023 Infiniti Q50 as the front left caliper, and the front right is a separate part. For another car, check the "Vehicles it fits" section.
Does this A1 CARDONE caliper come loaded with brake pads?
No, A1 CARDONE 19-B7146 is an unloaded caliper, so pads are not included; it comes with its bracket, a hardware kit with abutment clips and an anti-rattle spring, and an instruction sheet.
Can a phenolic piston caliper be swapped for this steel piston caliper?
No, it is not recommended. The original vehicle makers specified steel or phenolic pistons for the intended use of the vehicle, so the installer should follow the vehicle maker's recommendation.
What grease goes on the mounting pins of a floating caliper?
A silicone grease is used on floating caliper mounting pins. This front left caliper is a floating type with two pistons.
Does 410114GA0A cross to the A1 CARDONE 19-B7146?
Yes. 410114GA0A is listed as an interchange number for A1 CARDONE 19-B7146, a remanufactured front left brake caliper.
