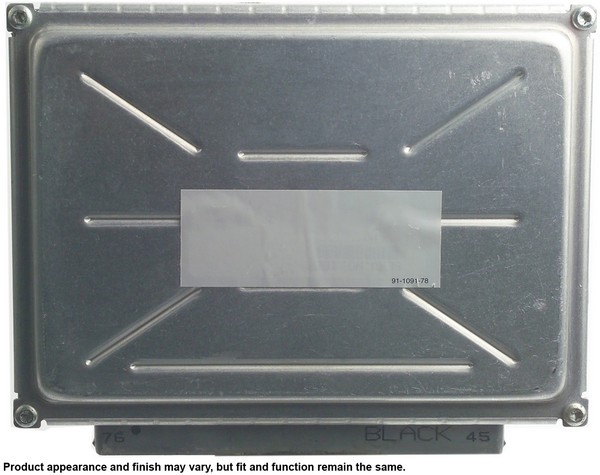

Engine Control Module (Ecm) for 2000-2003 Chevrolet S10 & More - A1 CARDONE 77-2203F

A1 CARDONE 77-2203F engine control module (ecm) for the 2000-2003 Chevrolet S10 4-cylinder 2.2L and other vehicles controls the engine's operation. The module is remanufactured, with critical components re-soldered or replaced.

• Reverse engineering shows how and why the original unit failed, so design weaknesses can be corrected
• 100% computer testing of every unit
• Automated computer testing or bench testing, depending on application
• On-car vehicle validation tests durability and performance

Quick facts

• Part: A1 CARDONE 77-2203F engine control module (ecm)
• Fits: 2000-2003 Chevrolet S10 4-cylinder 2.2L and other vehicles
• Condition: Remanufactured

A check engine light that returns after a reset, an engine that shuts off, or intermittent starting can mean the module is failing. Poor grounds, a bad wiring harness or shorted solenoids and relays can produce similar symptoms, so with the engine off, look over the grounds and harness for damage or corrosion before replacing the module.

Fits

This module fits the 2000-2003 Chevrolet S10 4-cylinder 2.2L and the 2000-2003 GMC Sonoma 4-cylinder 2.2L. Both take a single module.

Specifications

In the box

One engine control module and one instruction sheet. Mounting hardware is not included.

Installation notes

• Some GM applications have a knock module that must be transferred to the replacement module.
• The module must be properly flash programmed for the vehicle.
• Most GM vehicles have a VATS, Pass Key or Pass Lock anti-theft system; a 30-minute manual procedure can be done without a scanner, so refer to the O.E. manufacturer's approved service manual.

Interchange: 12202203
