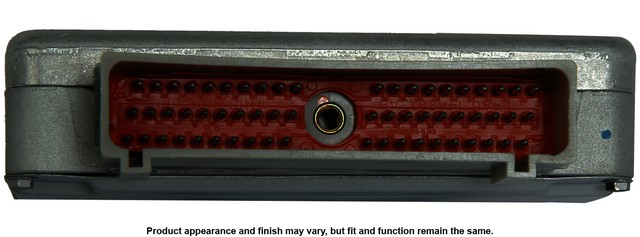

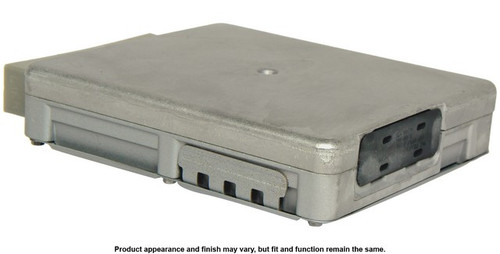

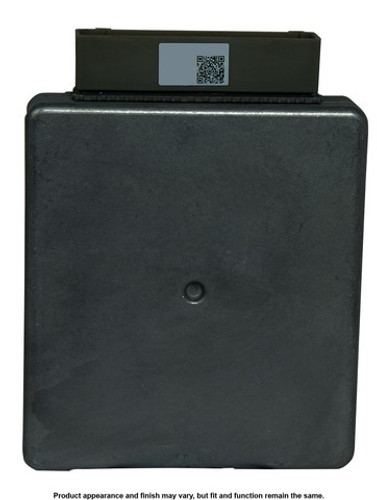

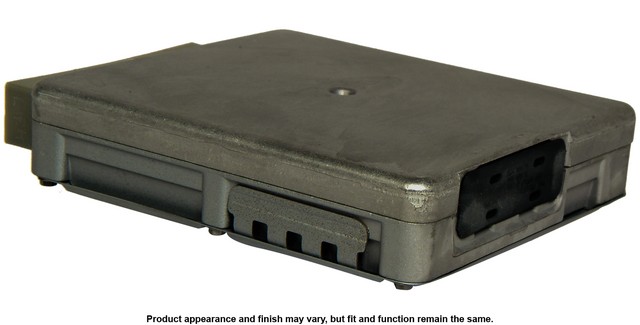

Remanufactured Engine Control Module (Ecm) for 1987 Ford Ranger & More - A1 CARDONE 78-4334

$204.99

Vehicles this part fits

    Part number: 78-4334
    UPC: 082617168816
    Weight: 1.80 LBS
    Item Package Quantity: 1
    $204.99
    Adding to cart… The item has been added

    Have questions?

    CARDONE Reman Engine Control Module (ECM) P/N:78-4334
    CARDONE Reman Engine Control Module (ECM) P/N:78-4334
    $204.99
    $204.99

    A1 CARDONE 78-4334 engine control module (ecm) for the 1987 Ford Ranger V6 2.9L and other vehicles is a remanufactured computer that controls the engine. An ECM handles the engine only, while a PCM also controls the transmission.

    • Reverse engineering of the original failure to find and correct design weaknesses
    • Critical components re-soldered or replaced for dependable electrical connections
    • Tested with automated computer equipment or bench-tested, depending on application
    • On-car vehicle validation tests durability and performance
    • Remanufacturing cuts the energy and raw material needed for a new part by 80%

    Quick facts

    • Part: A1 CARDONE 78-4334 engine control module (ecm)
    • Fits: 1987 Ford Ranger V6 2.9L and other vehicles
    • Condition: Remanufactured

    A check engine light that stays on after a reset, an engine that shuts off for no reason, loss of spark or intermittent starting problems can point to a failing engine control module. These signs alone do not prove the module is the problem, since a bad ground connection can produce them too.

    Fits

    It fits the 1987 Ford Ranger V6 2.9L and the 1987 Ford Bronco II V6 2.9L, and each takes one.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Terminals: 60 male pins
    • Connector: one rectangular female connector
    • Length: 8 in
    • Width: 6.1 in (154.94 mm)
    • Height: 1.6 in

    Build and materials

    • Condition: Remanufactured
    • Grade: Standard replacement
    • Flashable: Yes
    • Removable PROM: No
    • Electronic components: circuit board
    • Country of origin: Mexico

    In the box

    One engine control module and one instruction sheet. Mounting hardware is not included, so plan on new fasteners.

    Installation notes

    • Make sure the module is properly flash programmed for the vehicle.
    • Where the Ford passive anti-theft system (P.A.T.S.) is fitted, it needs an on-car relearn.
    • Some older Ford applications have a calibration module that must be transferred to the replacement module.

    Interchange: E7TF12A650BHA · E7TZ12A650BHA

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    E7TF12A650BHA, E7TZ12A650BHA

    Frequently Asked Questions

    Is the A1 CARDONE 78-4334 right for the 1987 Ford Bronco II V6 2.9L?

    Yes. A1 CARDONE 78-4334 fits the 1987 Ford Bronco II V6 2.9L, and that vehicle takes one module.

    What comes with this A1 CARDONE ecm?

    A1 CARDONE 78-4334 comes with the module and an instruction sheet. Mounting hardware is not included.

    Is the 78-4334 module flashable?

    Yes. This module is flashable and has no removable PROM, so it must be properly flash programmed for the vehicle.

    Does a Ford module like this need a P.A.T.S. relearn?

    Where the Ford passive anti-theft system is fitted, it needs an on-car relearn, though not all Ford vehicles require a P.A.T.S. reset. Some older Ford applications also need a calibration module transferred.

    What is the difference between an ECM and a PCM?

    Both control the engine, but a PCM also controls the transmission. This remanufactured A1 CARDONE 78-4334 is an engine control module.
