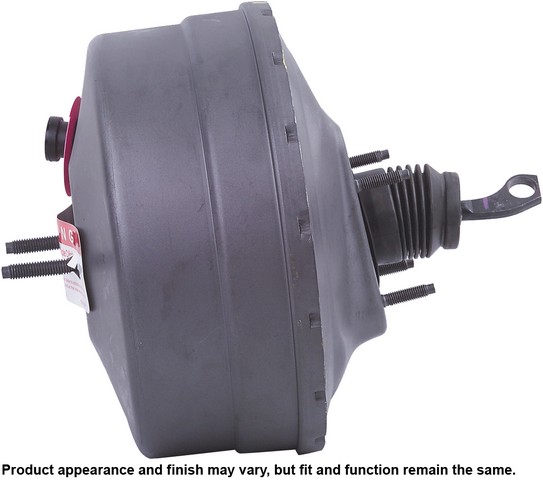

A1 CARDONE 54-74418 brake booster for the 2002-2003 Ford E-150 and other vehicles multiplies pedal force to help push the master cylinder piston. This remanufactured vacuum unit gets 100% O.E. quality seals, diaphragms and check valves.
- Reverse-engineered from 40 years of CARDONE engineering, with original design weaknesses corrected and upgraded where applicable
- Exclusive rust-prohibitive finishing process to extend unit life
- Dual diaphragm with a 273.81 mm (10.78 in) diameter
- Every unit is 100% tested for reliable performance
Quick facts
- Part: A1 CARDONE 54-74418 brake booster
- Also called: power brake booster
- Fits: 2002-2003 Ford E-150 and other vehicles
- Material: Steel (housing)
- Condition: Remanufactured
A hard brake pedal or longer stopping distances can mean the booster is worn, but the vacuum supply and the master cylinder can produce those signs too. Before you replace the booster, rule out a restricted vacuum hose and a failing master cylinder piston seal.
Fits
The 2002-2003 Ford E-150, the 2003 Ford E-150 Club Wagon, the 1999-2003 Ford Econoline and other vehicles fit this booster, one per vehicle. Open the "Vehicles it fits" section to check your exact model and engine.
Specifications
Fit and size
- Quantity per vehicle: 1
- Housing diameter: 278.64 mm (10.97 in)
- Diaphragm diameter: 273.81 mm (10.78 in)
- Master cylinder stud thread: 3/8x16
- Stud thread size: M8x1.25
Build and materials
- Booster type: Vacuum, dual diaphragm
- Housing material: Steel
- Neck seal: Included
- Condition: Remanufactured
- Country of origin: Mexico
In the box
One booster with its neck seal and an instruction sheet. The master cylinder, mounting hardware, mounting bracket and brake pedal rod extension are not included, and the old hardware may not be reusable, so plan on new pieces.
Installation notes
- Master cylinder output rods are pre-adjusted (when included) for easier and faster installation.
- The brake light switch may need adjusting after the booster is replaced, and some vehicles have a one-time-use switch that has to be replaced.
- Follow the included instruction sheet for the steps.
Interchange: 2C2Z2005CA · 3C2Z2005CA · XC2Z2005AB
This part cross-references / interchanges with the following part numbers:
2C2Z2005CA, 3C2Z2005CA, XC2Z2005AB
Frequently Asked Questions
Does the A1 CARDONE 54-74418 brake booster fit the 2002-2003 Ford E-150?
Yes, the A1 CARDONE 54-74418 brake booster fits the 2002-2003 Ford E-150, one per vehicle. For another model or year, open the "Vehicles it fits" section.
Does this remanufactured booster come with a master cylinder or mounting hardware?
No. This booster comes with its neck seal and an instruction sheet. The master cylinder, mounting hardware, mounting bracket and brake pedal rod extension are not included.
How much vacuum does a power brake booster like this need?
A brake booster needs a steady supply of 18-21 inches of vacuum to work properly. The A1 CARDONE 54-74418 is a vacuum-type unit with a 10.97 in (278.64 mm) housing.
Why is there brake fluid between my master cylinder and the booster?
Fluid there can come from a failing master cylinder piston seal, which lets brake fluid into the booster and contaminate it. In that case the master cylinder and the booster both need replacing.
Is 2C2Z2005CA the same as the A1 CARDONE 54-74418 booster?
Yes, 2C2Z2005CA is one of the numbers the A1 CARDONE 54-74418 brake booster replaces, along with 3C2Z2005CA and XC2Z2005AB.
