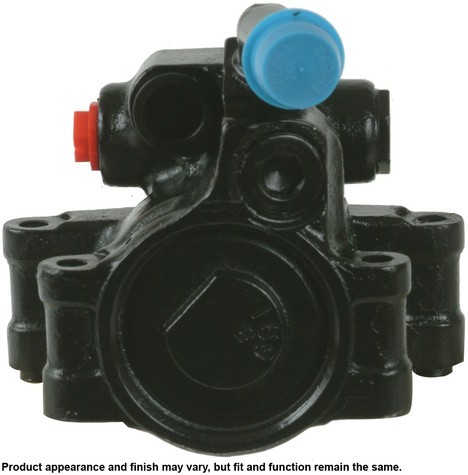

A1 CARDONE 20-296 power steering pump for the 2002 Ford Thunderbird and other vehicles supplies hydraulic pressure for power-assisted steering. This is a remanufactured pump, and every unit runs a hydraulic efficiency test.
- Original design reviewed for possible improvement, with design upgrades added where applicable
- Campacs, spool valves and other critical components are triple-tested
- 100% new O-rings and HNBR seals; HNBR does not break down at high temperatures like conventional seal material
- Shafts surfaced to precise specifications to eliminate premature seal wear
- Pressure relief valve tested and calibrated
- Final assembly computer-tested for pressure, bypass, fluid flow, valve operation, steering effort and noise
Quick facts
- Part: A1 CARDONE 20-296 power steering pump
- Fits: 2002 Ford Thunderbird and other vehicles
- Material: Cast iron housing
- Condition: Remanufactured
A whine from the pump, steering that feels heavy or fluid around the pump and hoses can mean the pump is wearing out. With the engine off and cool, look the belt, hoses and fittings over for leaks or damage first, and check for binding steering components. If the pump is the cause, this one replaces it.
Fits
This pump fits the 2002 Ford Thunderbird and the 2001-2002 Lincoln LS, and each car takes one.
Specifications
Fit and size
- Quantity per vehicle: 1
- Inlet diameter: 19.96 mm (0.786 in)
- Inlet: 1, barb attachment
- Outlet: 1, threaded attachment, thread size 16x1.5
- Hose port type: O-ring
- Shaft type: press-on
- Pulley belt type: serpentine
Build and materials
- Condition: remanufactured
- Housing material: cast iron
- Country of origin: Mexico
In the box
One hydraulic pump, one instruction sheet and one sealing kit. The pulley, reservoir, reservoir cap, filter and mounting hardware are not included, so plan on new mounting hardware.
Installation notes
- Follow the included instruction sheet for the steps.
- A pulley that cracks during removal must be replaced.
- When debris is found in the flow control valve bore, the system must be checked for contamination and flushed.
Interchange: 1W4Z3A674BARM
Frequently Asked Questions
Does the 20-296 work as a power steering pump for the 2001-2002 Lincoln LS?
Yes. The A1 CARDONE 20-296 fits the 2001-2002 Lincoln LS, and the car takes one pump.
Is 20-296 among the power steering pumps for the 2002 Ford Thunderbird?
Yes. The 2002 Ford Thunderbird takes one A1 CARDONE 20-296, and the pump is sold as a single remanufactured unit.
Does this power steering pump come with the pulley and reservoir?
No. The box holds the pump, an instruction sheet and a sealing kit. The pulley, reservoir, reservoir cap and mounting hardware are not included.
What seals are in this A1 CARDONE power steering pump?
Every unit is built with 100% new O-rings and HNBR seals. HNBR does not break down at high temperatures like conventional seal material.
What should I do if my old pulley cracks when I remove it?
A cracked pulley must be replaced. This pump has a press-on shaft, and the instruction sheet in the box covers installation.
