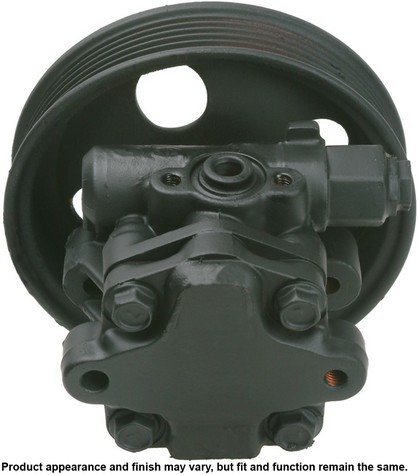

A1 CARDONE 21-5476 power steering pump for the 2006-2010 Hyundai Sonata sends hydraulic pressure to the steering system to assist steering effort. This remanufactured A1 CARDONE power steering pump is engineered to meet or exceed O.E. performance, with design upgrades where applicable.
- Every unit goes through a hydraulic efficiency test
- Critical components, including campacs and spool valves, are triple-tested
- 100% new O-rings and HNBR seals; HNBR does not break down at high temperatures like conventional seal material
- Shafts are surfaced to precise specifications to prevent premature seal wear
- Pressure relief valve is tested and calibrated
- Final assembly is computer-tested for pressure, bypass, fluid flow, valve operation, steering effort and noise
Quick facts
- Part: A1 CARDONE 21-5476 power steering pump
- Fits: 2006-2010 Hyundai Sonata
- Material: Aluminum housing
- Condition: Remanufactured
A whining noise, stiff steering or weak assist can mean the pump is wearing out. These signs alone do not prove the pump is the problem, since a worn drive belt is another common cause.
Fits
This is a power steering pump replacement for the 2006-2010 Hyundai Sonata, which takes one pump. This listing is a single pump.
Specifications
Fit and size
- Quantity per vehicle: 1
- Outlet thread size: 16x1.5
- Outlet attachment type: threaded
- Inlet attachment type: barb
- Inlet diameter: 9.8044 mm (0.386 in)
- Hose port type: O-ring
- Shaft type: press-on
Build and materials
- Condition: remanufactured
- Housing material: aluminum
- Pulley: included, serpentine belt type
- Remote reservoir: yes, not included
- Country of origin: Mexico
In the box
One power steering pump with its pulley, a sealing kit and an instruction sheet. Mounting hardware, the reservoir, the reservoir cap and a filter are not included; plan on new bolts, since the old ones may not be reusable.
Installation notes
- An instruction sheet comes with the pump for the steps.
- The pump is supplied with its pulley, which sits on a press-on shaft.
Interchange: 571003K000 · 571003K010
Frequently Asked Questions
Is this the right power steering pump for the 2006-2010 Hyundai Sonata?
Yes. A1 CARDONE 21-5476 fits the 2006-2010 Hyundai Sonata, and each car takes one pump.
Does the A1 CARDONE 21-5476 come with a pulley and a reservoir?
It comes with the pulley, a sealing kit and an instruction sheet. The reservoir, reservoir cap, filter and mounting hardware are not included, and this pump uses a remote reservoir.
What size is the outlet thread on this remanufactured power steering pump?
The outlet is threaded at 16x1.5, and the hose port type is O-ring. The inlet is a barb with a 9.8044 mm (0.386 in) diameter.
Is 571003K000 an interchange number for this power steering pump?
Yes. 571003K000 is listed as an interchange number for A1 CARDONE 21-5476, along with 571003K010.
Does this remanufactured pump use new seals?
Yes. Every unit is rebuilt with all-new O-rings and HNBR seals. HNBR holds up at high temperatures where conventional seal material breaks down.
