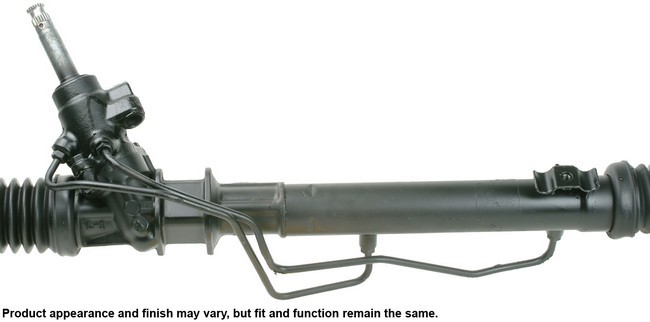

A1 CARDONE 26-2400 rack and pinion for the 2000-2004 Subaru Legacy turns steering wheel rotation into the side-to-side movement that steers the wheels. This remanufactured unit is a rack and pinion assembly with its inner tie rods installed.
- New o-rings and lip seals, where applicable, for leak-free sealing
- New spool valve seals and rack donut seals, where applicable, to eliminate internal leaks
- Racks surfaced to precise specifications to prevent leaking between chambers
- Valve housings with polished micro-finish sleeves, where applicable
- 100% hydraulic testing for flow, leakage and performance, where applicable
- Protective coating applied to each unit, where applicable
Quick facts
- Part: A1 CARDONE 26-2400 rack and pinion
- Also called: rack and pinion assembly
- Fits: 2000-2004 Subaru Legacy
- Condition: Remanufactured
Fluid leaks around the rack, extra play in the steering wheel or a wheel that is slow to return to center can mean the rack is worn. These signs alone do not prove the rack is at fault; a worn outer tie rod can cause similar symptoms.
Fits
As a 2000-2004 Subaru Legacy rack and pinion, it is a direct-fit replacement, and the car takes one.
Specifications
Fit and size
- Quantity per vehicle: 1
- Input shaft: splined, 20 splines
- Steering input shaft diameter: 17.93 mm (0.706 in)
- Inlet line fitting diameter: 13.87 mm (0.546 in), male
- Outlet line fitting diameter: 11.66 mm (0.459 in), male
- Total turns lock to lock: 3.125
Build and materials
- Condition: Remanufactured
- Inner tie rods: included
- Outer tie rods: not included
- Seals: sealing kit included
- Country of origin: Mexico
In the box
One rack and pinion, a sealing kit and an instruction sheet. Outer tie rods, mounting hardware and mounting brackets are not included, so plan on new bolts rather than reusing old ones.
Installation notes
- The instruction sheet in the box covers the installation steps.
- Air in the system can cause power steering pump whine after the rack is replaced. The system must be bled, which may take a few attempts depending on its design.
Interchange: 34110AE11A · 34110AE11B · 34140AA040 · 34140AC000 · TR34140AC000
This part cross-references / interchanges with the following part numbers:
34110AE11A, 34110AE11B, 34140AA040, 34140AC000, TR34140AC000
Frequently Asked Questions
Is this the right 2000-2004 Subaru Legacy rack and pinion for my car?
Yes. A1 CARDONE 26-2400 fits the 2000-2004 Subaru Legacy, which takes one rack and pinion.
Does this rack and pinion come with outer tie rods?
No. The inner tie rods are installed, but outer tie rods, mounting hardware and mounting brackets are not included. The box holds the rack and pinion, a sealing kit and an instruction sheet.
What size is the input shaft on the 26-2400 rack and pinion?
A1 CARDONE 26-2400 has a splined input shaft with 20 splines. It measures 17.93 mm (0.706 in) in diameter.
Why is my power steering pump whining after installing a new rack?
Air in the system can cause it. The steering system must be bled, which may take a few attempts depending on the system's design.
Is this A1 CARDONE steering rack hydraulically tested?
Yes, where applicable. A1 CARDONE gives each unit 100% hydraulic testing for flow, leakage and performance, and this remanufactured rack has new o-rings and lip seals where applicable.
