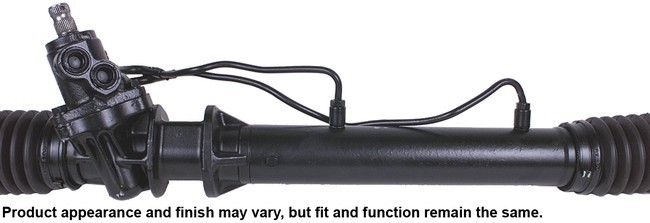

A1 CARDONE 26-3005 rack and pinion for the 1996-2000 Nissan Pathfinder and other vehicles turns steering wheel movement into side-to-side motion at the wheels. This remanufactured A1 CARDONE steering rack is re-engineered, built and tested, and is also listed as a rack and pinion assembly.
- New o-rings and lip seals installed to prevent leaks, where applicable
- New spool valve seals and rack donut seals installed to eliminate internal leaks, where applicable
- Rack surfaced to precise specifications to prevent leaking between chambers
- Valve housings with polished micro-finish sleeves for durability, where applicable
- 100% hydraulic testing for proper flow, leakage and performance, where applicable
- Final protective coating applied to extend the life of the unit, where applicable
Quick facts
- Part: A1 CARDONE 26-3005 rack and pinion
- Also called: rack and pinion assembly
- Fits: 1996-2000 Nissan Pathfinder and other vehicles
- Condition: Remanufactured
A wheel that does not return to center after a turn, extra play at the wheel or fluid seeping around the rack can mean the rack is worn. A tie rod, the power steering fluid level or the alignment can be behind these signs too, so find the cause before buying.
Fits
It fits the 1996-2000 Nissan Pathfinder and the 1997-2000 Infiniti QX4, and each of them takes one.
Specifications
Fit and size
- Quantity per vehicle: 1
- Input shaft: grooved, 36 splines
- Input shaft diameter: 17.42 mm (0.686 in)
- Inlet line fitting diameter: 13.87 mm (0.546 in), male
- Outlet line fitting diameter: 13.87 mm (0.546 in), male
- Total turns lock to lock: 3.125
Build and materials
- Condition: Remanufactured
- Seals: included
- Inner tie rods: included
- Country of origin: Mexico
In the box
One rack and pinion with inner tie rods, seals and an instruction sheet. Outer tie rods, mounting hardware and mounting brackets are not included, so plan on new mounting bolts, since the old ones may not be reusable.
Installation notes
- An instruction sheet comes with the unit.
- If the power steering pump whines after installation, the steering system must be bled, which can take a few attempts.
Interchange: 485210W025 · 490010W010 · 490010W015 · 492000W010
This part cross-references / interchanges with the following part numbers:
485210W025, 490010W010, 490010W015, 492000W010
Frequently Asked Questions
Is this A1 CARDONE 26-3005 rack and pinion right for the 1996-2000 Nissan Pathfinder?
Yes. A1 CARDONE 26-3005 fits the 1996-2000 Nissan Pathfinder, and each vehicle takes one.
Does this Infiniti QX4 rack and pinion fit the 1997-2000 model?
Yes. This rack and pinion fits the 1997-2000 Infiniti QX4, which takes one.
Does this A1 CARDONE rack and pinion come with tie rods?
Inner tie rods are included, along with the seals and an instruction sheet. Outer tie rods, mounting hardware and mounting brackets are not included.
How many splines does the input shaft have?
A1 CARDONE 26-3005 has a grooved input shaft with 36 splines and a diameter of 17.42 mm (0.686 in).
Why is my power steering pump whining after a new rack was installed?
The most likely cause is air in the system. The steering system must be bled, which can take a few attempts depending on the system's design.
