Remanufactured Transfer Case Motor for 1999 Ford F-150 & More - A1 CARDONE 48-214

$119.99

Vehicles this part fits

    Part number: 48-214
    UPC: 082617665797
    Weight: 3.00 LBS
    Item Package Quantity: 1
    $119.99
    Adding to cart… The item has been added

    Have questions?

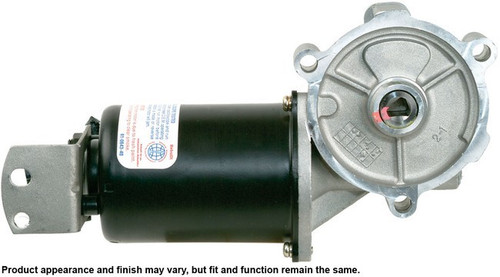

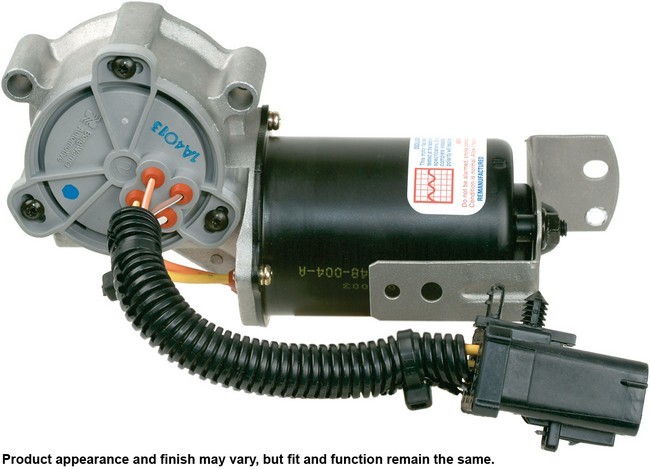

    CARDONE Reman Transfer Case Motor P/N:48-214
    CARDONE Reman Transfer Case Motor P/N:48-214
    $119.99
    $119.99

    A1 CARDONE 48-214 transfer case motor for the 1999 Ford F-150 and other vehicles is a remanufactured unit that shifts the transfer case. Reverse engineering shows how the original unit failed so its design weaknesses can be corrected.

    • 100% torque tested for strength in proper gear engagement
    • 100% computer tested at 3 points during remanufacturing
    • Assembled with a precise amount of lubricant for quiet operation and long life
    • Motor magnets are 100% recharged
    • Motor sensors are 100% replaced with new sensors

    Quick facts

    • Part: A1 CARDONE 48-214 transfer case motor
    • Fits: 1999 Ford F-150 and other vehicles
    • Condition: Remanufactured

    A 4WD system that will not engage, a Service 4WD light or a weak-sounding shift can mean this motor is worn, though the transfer case control module calibration or the front axle lock actuator can be behind them too, so find the cause before replacing the motor.

    Fits

    This motor is a direct-replacement unit for the 1999 Ford F-150, the 1999 Ford F-250 and the 1999 Ford Lobo. This listing is one A1 CARDONE transfer case motor, and the 1999 Ford F-150 takes one.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Mounting holes: 3
    • Connector: 1 rectangular female connector
    • Terminals: 7 male pin terminals, 7 wires
    • Wiring harness length: 266.7 mm

    Build and materials

    • Condition: Remanufactured
    • Shift operation: Electronic
    • Wiring harness: included
    • Country of origin: Mexico

    In the box

    One transfer case motor with its wiring harness and an instruction sheet. Mounting hardware is not included, so plan on new bolts.

    Installation notes

    • Shift the transfer case by hand into the two-wheel drive position at the shift shaft before installing; a crescent wrench can be used.
    • The replacement motor drive is factory-set in the 2 wheel drive position.
    • Do not operate the motor while it is off the transfer case. This can damage the motor and set an error code that must be cleared before it will operate again.

    Interchange: F65Z7G360AA

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    F65Z7G360AA

    Frequently Asked Questions

    Is the A1 CARDONE 48-214 a 1999 Ford F-150 transfer case motor?

    Yes. A1 CARDONE 48-214 is a transfer case motor for the 1999 Ford F-150 and other vehicles.

    Does this transfer case motor come with a wiring harness and mounting bolts?

    It comes with a wiring harness and an instruction sheet. Mounting hardware is not included, so plan on new bolts.

    Can I install this motor if my old one failed in 4 Wheel Drive Low or High?

    Yes. First shift the transfer case by hand into the two-wheel drive position at the shift shaft; a crescent wrench works. The replacement motor drive is factory-set in two-wheel drive.

    How is the A1 CARDONE 48-214 tested?

    Each motor is 100% torque tested for gear engagement strength and 100% computer tested at 3 points during remanufacturing. The magnets are recharged and the sensors are replaced.

    How many pins does the connector on this transfer case motor have?

    The motor has one rectangular female connector with 7 male pin terminals and 7 wires. The wiring harness is 266.7 mm long.
