Remanufactured Transfer Case Motor for 1996-2004 Ford F-150 & More - A1 CARDONE 48-216

$219.99

Vehicles this part fits

    Part number: 48-216
    UPC: 082617681933
    Weight: 3.50 LBS
    Item Package Quantity: 1
    $219.99
    Adding to cart… The item has been added

    Have questions?

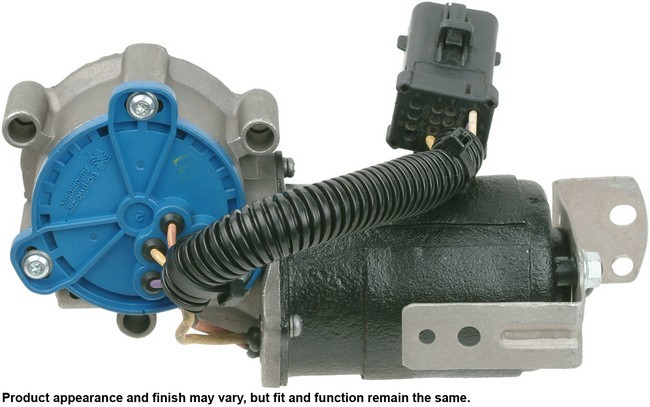

    CARDONE Reman Transfer Case Motor P/N:48-216
    CARDONE Reman Transfer Case Motor P/N:48-216
    $219.99
    $219.99

    A1 CARDONE 48-216 transfer case motor for the 1996-2004 Ford F-150 and other vehicles is a remanufactured motor that shifts the transfer case electronically.

    • Reverse engineering shows why the original unit failed, so its design weaknesses can be corrected
    • Each unit is 100% computer tested at 3 points during remanufacturing
    • Every motor is 100% torque tested for proper gear engagement
    • Every motor is assembled with a precise amount of lubricant for quiet operation
    • Motor magnets are 100% recharged and all sensors are replaced with new ones

    Quick facts

    • Part: A1 CARDONE 48-216 transfer case motor
    • Fits: 1996-2004 Ford F-150 and other vehicles
    • Condition: Remanufactured

    A Service 4WD light, no four-wheel drive or a motor that struggles to finish a shift can mean the motor is failing. Before you replace it, rule out a transfer case control module calibration issue, which can set the same light; a shop can read the codes and look for a software update.

    Fits

    The 1996-2004 Ford F-150 is one of a wide range of Ford models this direct-replacement motor is listed for, along with the 1996-1998 Ford F-250 and the 2004 Ford F-150 Heritage. If your vehicle is not named here, look it up in the "Vehicles it fits" section. The transfer case takes one motor.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Mounting holes: 3
    • Wiring harness length: 266.7 mm
    • Connector: 1 rectangular female connector, 7 male pin terminals, 7 wires

    Build and materials

    • Condition: Remanufactured
    • Shift operation: Electronic
    • Wiring harness: included
    • Country of origin: Mexico

    In the box

    One transfer case motor with its wiring harness and one instruction sheet. Mounting hardware is not included, so plan on new bolts rather than reusing the old ones.

    Installation notes

    • Do not run the motor while it is off the transfer case; that can damage it and set an error code that must be cleared before it works again.
    • The motor drive is factory-set in the two-wheel drive position, so shift the transfer case by hand to two-wheel drive at the shift shaft before installing; a crescent wrench can be used.
    • The instruction sheet in the box covers the installation steps.

    Interchange: YL3Z7G360AA

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    YL3Z7G360AA

    Frequently Asked Questions

    Is the A1 CARDONE 48-216 the right transfer case motor for a 1996-2004 Ford F-150?

    Yes. A1 CARDONE 48-216 is listed for the 1996-2004 Ford F-150. If your vehicle is a different one, look it up in the "Vehicles it fits" section.

    Does the A1 CARDONE transfer case motor come with a wiring harness?

    Yes. A1 CARDONE 48-216 comes with its wiring harness and an instruction sheet. Mounting hardware is not included.

    Do I need to shift the transfer case before installing the replacement motor?

    Yes. The replacement motor is factory-set in two-wheel drive, so shift the transfer case by hand to two-wheel drive at the shift shaft first. A crescent wrench can be used.

    How many pins does the connector on this remanufactured transfer case motor have?

    The connector is a rectangular female connector with 7 male pin terminals and 7 wires.

    If the motor sounds weak when it shifts, could the front axle lock actuator be involved?

    Yes. If the axle lock does not engage, the motor cannot complete its engagement, so a shop may need to check the actuator as well.
