Remanufactured Transfer Case Motor for 2003-2005 Mercedes-Benz ML350 & More - A1 CARDONE 48-601

$151.99
Sold out

Vehicles this part fits

    Part number: 48-601
    UPC: 082617641203
    Weight: 3.40 LBS
    Item Package Quantity: 1
    $151.99

    Out of stock

    Have questions?

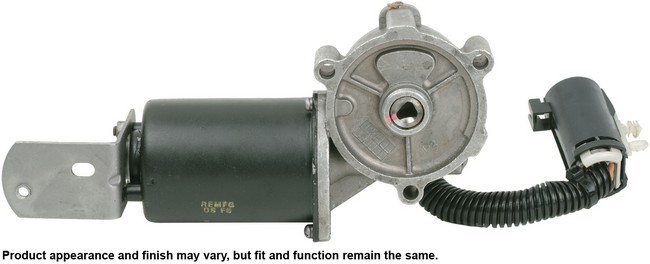

    CARDONE Reman Transfer Case Motor P/N:48-601
    CARDONE Reman Transfer Case Motor P/N:48-601
    $151.99
    $151.99

    A1 CARDONE 48-601 transfer case motor for the 2003-2005 Mercedes-Benz ML350 and other vehicles shifts the transfer case between drive positions. This remanufactured motor is a direct-replacement unit that drives the gear engagement in the 4WD system.

    • Reverse engineered to find why the original unit failed, with the original design weaknesses corrected
    • 100% computer tested at three points during remanufacturing
    • 100% torque tested for the strength needed in gear engagement
    • Assembled with a precise amount of lubricant for quiet operation
    • Motor magnets are 100% recharged
    • Motor sensors are 100% replaced with new sensors

    Quick facts

    • Part: A1 CARDONE 48-601 transfer case motor
    • Fits: 2003-2005 Mercedes-Benz ML350 and other vehicles
    • Condition: Remanufactured

    A lit Service 4WD light, a 4WD system that will not engage or a motor that sounds weak when it tries to shift can point to a worn motor. A Service 4WD light alone does not prove the motor is bad, since a transfer case control module calibration issue is another common cause.

    Fits

    This transfer case motor fits the 2003-2005 Mercedes-Benz ML350, the 2002-2005 Mercedes-Benz ML500 and the 1998-2003 Mercedes-Benz ML320, and each takes one. If your Mercedes-Benz is not named here, look it up in the "Vehicles it fits" section on this page.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Mounting holes: 3
    • Connector: 1 female, circle shape
    • Terminals: 7 male blade terminals, 7 wires
    • Wiring harness length: 279.4 mm

    Build and materials

    • Shift operation: electronic
    • Condition: Remanufactured
    • Wiring harness: included
    • Country of origin: Mexico

    In the box

    One transfer case motor with its wiring harness and an instruction sheet. Mounting hardware is not included, so plan on new bolts.

    Installation notes

    • Shift the transfer case into the two-wheel drive position by hand at the shift shaft before installing; a crescent wrench can be used.
    • The replacement motor drive is factory-set in the two-wheel drive position.
    • Do not run the motor while it is off the transfer case; this can damage it and set an error code that must be cleared before it works again.

    Interchange: 1635400888

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    1635400888

    Frequently Asked Questions

    Is the A1 CARDONE 48-601 an ML320 transfer case motor for the 1998-2003 Mercedes-Benz ML320?

    Yes. A1 CARDONE 48-601 fits the 1998-2003 Mercedes-Benz ML320, and that vehicle takes one motor.

    Does the remanufactured 48-601 motor come with a wiring harness?

    Yes. The box holds the transfer case motor, a wiring harness and an instruction sheet. Mounting hardware is not included, so plan on new bolts.

    Can I install the 48-601 motor if my old one failed in 4 Wheel Drive Low or High?

    Yes. First shift the transfer case by hand into the two-wheel drive position at the shift shaft; a crescent wrench works. This replacement motor drive is factory-set in two-wheel drive.

    What connector does this transfer case motor use?

    This motor has one female circle connector with seven male blade terminals and seven wires. The wiring harness is 279.4 mm long.

    Does interchange number 1635400888 match the A1 CARDONE 48-601 transfer case motor?

    Yes. 1635400888 is an interchange number for the A1 CARDONE 48-601 transfer case motor.
