Remanufactured Left Window Motor for 2004-2012 Mitsubishi Galant & More - A1 CARDONE 47-1975

$160.99

Vehicles this part fits

    Part number: 47-1975
    UPC: 082617822213
    Weight: 1.50 LBS
    Item Package Quantity: 1
    $160.99
    Adding to cart… The item has been added

    Have questions?

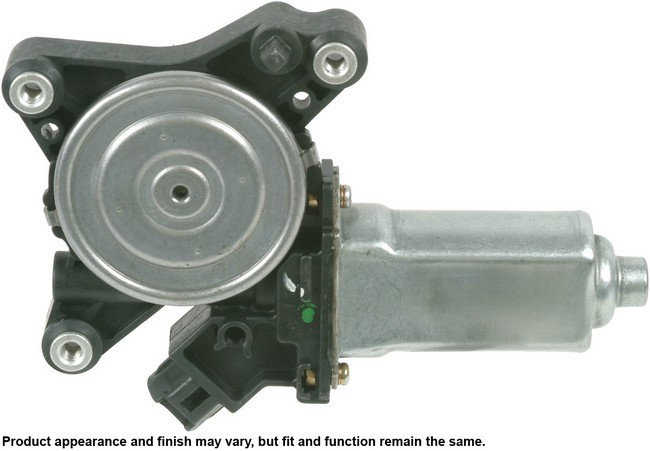

    CARDONE Reman Window Motor P/N:47-1975
    CARDONE Reman Window Motor P/N:47-1975
    $160.99
    $160.99

    A1 CARDONE 47-1975 left window motor for the 2004-2012 Mitsubishi Galant and other vehicles drives the regulator that raises and lowers the door glass. This remanufactured motor began as an Original Equipment core and was re-engineered, renewed and tested.

    • Tested 100% on a simulated window fixture to verify speed and strength
    • Bushings re-impregnated with lubricating oil, ball bearings replaced with new and armatures tested for insulation
    • Internal gears gauged and inspected, then renewed for reuse or replaced if out of spec
    • Motor magnets 100% recharged for efficiency and reliability
    • Assembled with a precise amount of lubricant for quiet operation

    Quick facts

    • Part: A1 CARDONE 47-1975 window motor
    • Fits: 2004-2012 Mitsubishi Galant and other vehicles
    • Position: Front left, rear left
    • Condition: Remanufactured

    A regulator, a switch, wiring or a fuse can be behind a slow, noisy or stalled window too, so find the cause before you buy a motor. Replacement gears are made from a stronger, less brittle material than the original to prevent premature wear and breakage.

    Fits

    It fits the 2004-2012 Mitsubishi Galant and the 2004-2008 and 2010-2011 Mitsubishi Endeavor in the front left and rear left window positions. Each window position takes one motor. This listing is one left-side motor, and the right side is a separate part ordered on its own.

    Specifications

    Fit and size

    • Position: front left, rear left
    • Quantity per application: 1
    • Mounting: bolt on, 3 mounting holes with internal threaded holes
    • Voltage: 12 V
    • Terminal quantity: 2

    Build and materials

    • Condition: remanufactured
    • Connection: plug-in
    • Anti-pinch motor: no
    • Country of origin: Mexico

    In the box

    One window motor and one instruction sheet. The regulator, mounting hardware, bracket and wiring harness are not included, so plan on new bolts, since the old ones may not be reusable.

    Installation notes

    • Plug-in electrical connection.
    • Motors with an auto up/down feature have output signals and pulse counts matched to the vehicle application and ship in the full up position.
    • Compatible with the original mounting and regulator.
    • The instruction sheet in the box covers the steps.

    Interchange: MR565451 · MR565453 · MR599947 · MR599949

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    MR565451, MR565453, MR599947, MR599949

    Frequently Asked Questions

    Is this a Mitsubishi Endeavor window motor for the 2004-2008 and 2010-2011 model years?

    Yes. A1 CARDONE 47-1975 fits the 2004-2008 and 2010-2011 Mitsubishi Endeavor, in the front left and rear left window positions.

    Does this window motor come with the regulator?

    No. A1 CARDONE 47-1975 comes with the window motor and an instruction sheet; the regulator, mounting hardware, bracket and wiring harness are not included.

    Are A1 CARDONE window motors 12-volt plug-in units?

    Yes. This A1 CARDONE 47-1975 is a 12 V motor with a plug-in connection and 2 terminals, and it is not an anti-pinch motor.

    How is this remanufactured window motor tested?

    Every unit is run on a simulated window fixture to check its speed and strength, and the armatures are tested for insulation.

    Does this window motor need setup for auto up/down?

    If the motor has auto up/down, it arrives in the full up position and is matched to the vehicle's signals and pulse counts. The instruction sheet covers the steps.
