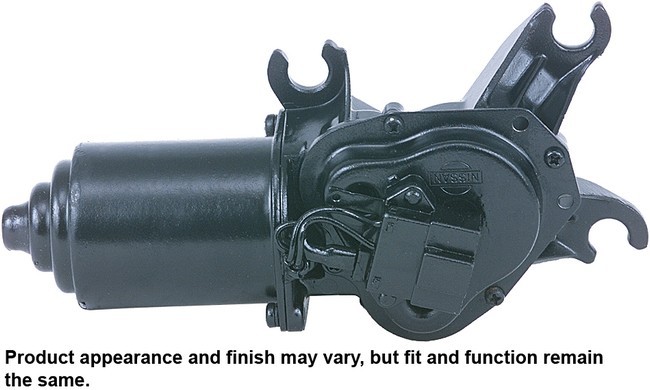

A1 CARDONE 43-1242 front windshield wiper motor for the 1998-2004 Nissan Frontier and other vehicles drives the wiper arms across the front glass. This remanufactured A1 CARDONE windshield wiper motor is tested for each of its functions on the vehicle.
- Armature, field, bearing and parking switch or pulse board are each tested or gauged
- Every motor bearing is re-impregnated or replaced as needed
- Lubrication on the output gear for load capacity and long life
- Weak solder points are 100% reflowed to extend life expectancy
- Motor magnets are 100% recharged for performance and reliability
Quick facts
- Part: A1 CARDONE 43-1242 windshield wiper motor
- Fits: 1998-2004 Nissan Frontier and other vehicles
- Position: Front
- Material: Cast aluminum
- Condition: Remanufactured
Slow, uneven or stalled wipers can come from a worn motor, though a binding linkage, a loose arm or a corroded connector gives the same symptoms. With the ignition off, move the arms by hand and look over the connector before you replace the motor.
Fits
This windshield wiper motor is listed for a wide range of Nissan models, led by the 1998-2004 Nissan Frontier, the 1989-1994 Nissan Maxima and the 2000 Nissan Xterra. The quantity per vehicle is one.
Specifications
Fit and size
- Position: Front
- Quantity per vehicle: 1
- Mounting type: Grommet, 4 mounting holes
- Wiper speeds: 2
- Terminals: 5 male blade terminals
Build and materials
- Condition: Remanufactured
- Material: Cast aluminum
- Country of origin: Mexico
In the box
One windshield wiper motor and one instruction sheet. The wiring harness and washer pump are not included.
Interchange: 2881013E10 · 288103S500 · 2881040F00 · 2881061E00 · 2881085E11 · 2881086E00 · 2881086E11 · 28810D4710
This part cross-references / interchanges with the following part numbers:
2881013E10, 288103S500, 2881040F00, 2881061E00, 2881085E11, 2881086E00, 2881086E11, 28810D4710
Frequently Asked Questions
Is 43-1242 the right windshield wiper motor for the 1989-1994 Nissan Maxima?
Yes, A1 CARDONE 43-1242 is listed for the 1989-1994 Nissan Maxima, which takes one motor. For another Nissan, look up your model and year in the "Vehicles it fits" section.
Does the 43-1242 work as a windshield wiper motor for the 2000 Nissan Xterra?
Yes. A1 CARDONE 43-1242 is listed for the 2000 Nissan Xterra, and that vehicle takes one motor.
Are the wiring harness and washer pump included with this remanufactured windshield wiper motor?
No, the wiring harness and washer pump are not included; A1 CARDONE 43-1242 comes as the windshield wiper motor with an instruction sheet.
How many terminals and wiper speeds does this front windshield wiper motor have?
This windshield wiper motor has five male blade terminals, two wiper speeds and four mounting holes, and it is mounted with a grommet.
What is done to a windshield wiper motor when A1 CARDONE remanufactures it?
Every bearing is re-impregnated or replaced as needed, weak solder points are reflowed and the magnets are recharged. The finished motor is then tested for each of its functions on the vehicle.
