Rear Windshield Wiper Motor for 2001-2006 Hyundai Santa Fe - A1 CARDONE 43-4514

$188.99
CARDONE Reman Windshield Wiper Motor 43-4514
CARDONE Reman Windshield Wiper Motor 43-4514

Vehicles this part fits
    Part number: 43-4514
    UPC: 082617705158
    Weight: 3.00 LBS
    Item Package Quantity: 1
    $188.99
    Adding to cart… The item has been added

    Have questions?

    Ask an Expert
    CARDONE Reman Windshield Wiper Motor P/N:43-4514
    CARDONE Reman Windshield Wiper Motor P/N:43-4514
    $188.99
    $188.99

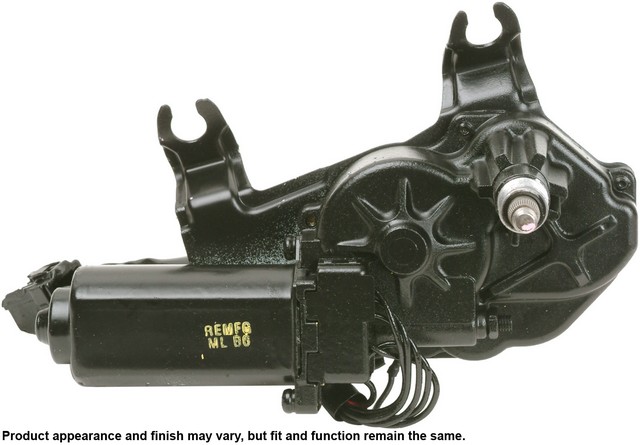

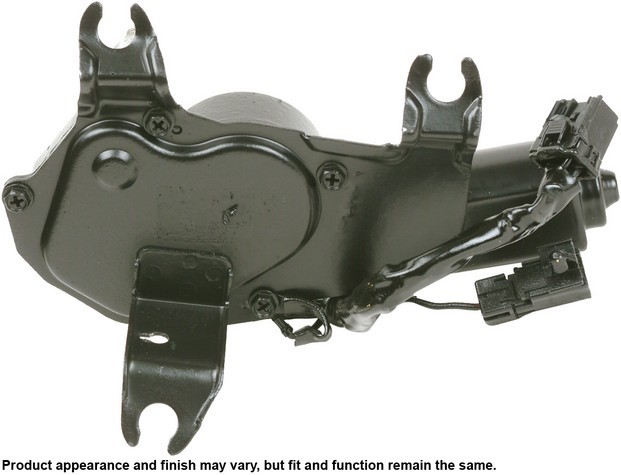

    A1 CARDONE 43-4514 rear windshield wiper motor for the 2001-2006 Hyundai Santa Fe drives the rear wiper arm across the rear window. This remanufactured unit is re-engineered, built and tested to match O.E. performance.

    • Armature, field, bearing and parking switch or pulse board are tested or gauged, then the finished motor is function-tested on the vehicle
    • Every motor bearing is re-impregnated or replaced as needed
    • Lubricated output gear for load capacity and long life
    • Weak solder points are 100% reflowed to extend life expectancy
    • Motor magnets are 100% recharged for performance and reliability

    Quick facts

    • Part: A1 CARDONE 43-4514 windshield wiper motor
    • Fits: 2001-2006 Hyundai Santa Fe
    • Position: Rear
    • Material: Cast aluminum
    • Condition: Remanufactured

    A rear wiper that will not move, runs slowly or stops partway across the glass can mean the motor is worn. Those signs alone do not prove the motor is at fault; a blown fuse, for one, would also leave the wiper dead.

    Fits

    As a remanufactured original equipment part, this 2001-2006 Hyundai Santa Fe wiper motor is a direct fit for the rear window, and the car takes one.

    Specifications

    Fit and size

    • Position: Rear
    • Quantity per vehicle: 1
    • Mounting type: Grommet
    • Mounting holes: 3
    • Wiper speeds: 1
    • Terminals: 5, male blade type
    • Wires: 5
    • Connector: Female
    • Wiring harness length: 234.95 mm

    Build and materials

    • Material: Cast aluminum
    • Condition: Remanufactured
    • Wiring harness: Included
    • Country of origin: Mexico

    In the box

    One wiper motor with its wiring harness and an instruction sheet. A washer pump is not included.

    Interchange: 9870026000

    This part cross-references / interchanges with the following part numbers:

    9870026000

    Frequently Asked Questions

    Is this a windshield wiper motor replacement for the 2001-2006 Hyundai Santa Fe?

    Yes. A1 CARDONE 43-4514 is a rear wiper motor for the 2001-2006 Hyundai Santa Fe, and the vehicle takes one.

    Is this A1 CARDONE windshield wiper motor for the front or rear glass?

    It is the rear unit. A1 CARDONE 43-4514 is listed for the rear position and has one wiper speed and three mounting holes.

    Does this rear wiper motor include the wiring harness?

    Yes. The package holds the wiper motor, its wiring harness and an instruction sheet; a washer pump is not included.

    What is done to this wiper motor when it is remanufactured?

    Main components are tested or gauged, bearings are re-impregnated or replaced as needed, and the output gear is lubricated. Weak solder points are reflowed and the magnets are recharged.

    How many terminals does this rear wiper motor have?

    It has five male blade terminals and five wires. The connector is female.
