Keep your rear drum brakes self-adjusting at the correct clearance with the Carlson Drum Brake Self-Adjuster Repair Kit 12503. This kit renews the self-adjuster mechanism on the rear right (RH) drum brake and installs as a direct-fit replacement for the listed applications — including the 1983-1987 Toyota Tercel, 1984-2002 Toyota Corolla, 1985-1988 Chevrolet Nova, 1989-1997 Geo Prizm and 1998-2002 Chevrolet Prizm.
As the brake linings wear, the self-adjuster advances the adjuster screw to maintain proper shoe-to-drum clearance. Fresh adjuster hardware is designed to help keep that adjustment occurring at the proper intervals so the drum brakes stay in adjustment.
Fitment: 1983-1987 Toyota Tercel, 1984-1986 Toyota Camry, 1984-2002 Toyota Corolla, 1985-1988 Chevrolet Nova, 1986-1989 Toyota Celica, 1989-1997 Geo Prizm, 1992-1997 Toyota Celica, and 1998-2002 Chevrolet Prizm (All engines). See the Buyer's Guide tab for the full list.
Interchange: H2617 · FH12503 · 81342 · H12503. Manufacturer part number 12503. Country of origin: China.
This part cross-references / interchanges with the following part numbers:
What does this kit do?
It renews the self-adjuster mechanism that advances the adjuster screw as the drum brake linings wear, helping maintain proper shoe-to-drum clearance. A worn or seized adjuster can leave the brakes out of adjustment.
What is included in the kit?

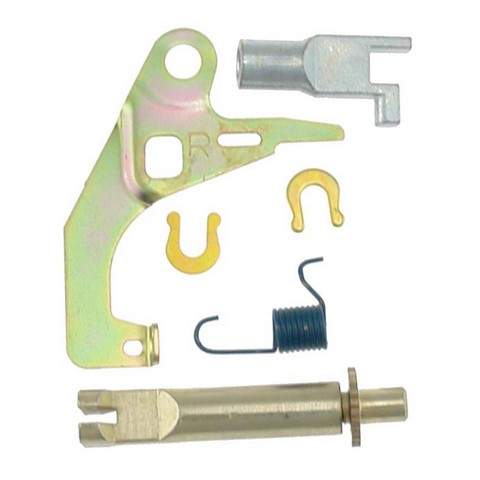

The kit contains one adjuster screw assembly, one adjuster screw tip, one right-hand (RH) adjuster lever, one return spring, and two C-washers.
Which brake position is this kit for?
It is cataloged for the rear right (RH) drum brake on the listed applications.
Will this kit fit my vehicle?
It's a direct-fit replacement for applications such as the 1983-1987 Toyota Tercel, 1984-2002 Toyota Corolla, 1985-1988 Chevrolet Nova, 1989-1997 Geo Prizm and 1998-2002 Chevrolet Prizm. Check the Buyer's Guide tab.
What are signs the self-adjuster may need replacing?
Signs include a low pedal or excessive pedal travel, uneven drum brake performance, or an adjuster that is seized or corroded. Diagnose the cause before replacing, as these symptoms can have other sources.
