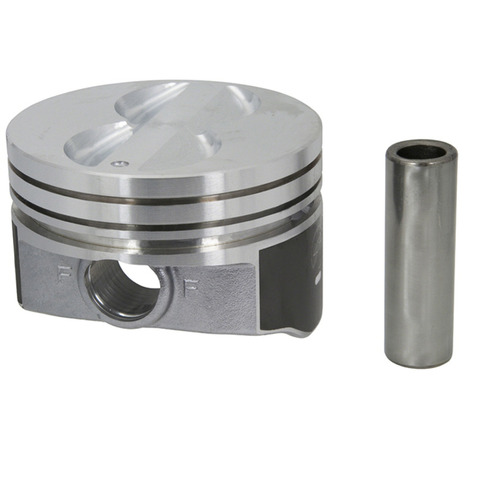

Sealed Power H345DCP 60 engine piston for the 1982-1985 Chevrolet Impala V8 5.7L and other vehicles carries combustion force down to the connecting rod. This listing is a cast, oversized piston set for a 4.060 in bore.
- Hypereutectic piston material
- Exclusive FM425 material for strength and scuff resistance, allowing a tighter bore and less blow-by
- Barrel profiles that help optimize the oil wedge between skirt and wall
- Piston skirts protected by next-gen DUROSHIELD coating
- TAC ring groove geometry
- Weight matched to +/- 2 grams
Quick facts
- Part: Sealed Power H345DCP 60 engine piston
- Fits: the 1982-1985 Chevrolet Impala V8 5.7L and other vehicles
- Material: Hypereutectic
- Condition: New
Oil burning, lost compression or a knock from the cylinder can mean worn pistons, rings or bores. Before replacing pistons, measure the cylinder bores with the engine apart and compare them with the 4.060 in bore size and 0.0010 in minimum clearance below, since worn rings or bores can bring on those symptoms too.
Fits
This piston set suits the 1982-1985 Chevrolet Impala V8 5.7L, the 1987-1990 Chevrolet Camaro V8 5.7L and the 1985-1990 Chevrolet Caprice V8 5.7L, along with a wide range of other Chevrolet, GMC, Pontiac and Cadillac models.
Specifications
Fit and size
- Bore diameter: 4.060 in
- Oversize amount: 0.060 in
- Piston pin outside diameter: 0.927 in
- Compression height: 1.548 in
- Top and second compression ring thickness: 0.0781 in each
- Oil ring thickness: 0.1875 in
- Minimum clearance: 0.0010 in
- Quantity per vehicle: 8
Build and materials
- Material: Hypereutectic
- Construction: Cast
- Piston head type: Flat
- Skirt coating: DUROSHIELD
- Condition: New
- Country of origin: India
In the box

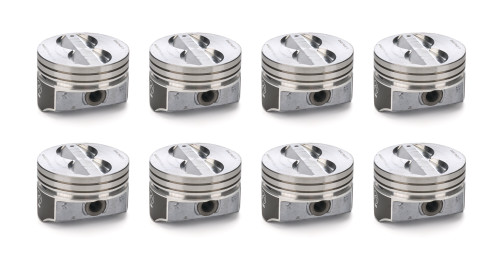

One piston set. Assembly lubricant is not included. The engine takes eight pistons.
Interchange: P3103.60 · P1534(8)060 · 224-2770.060
This part cross-references / interchanges with the following part numbers:
P3103.60, P1534(8)060, 224-2770.060
Frequently Asked Questions
Is this Sealed Power H345DCP 60 piston set right for the 1987-1990 Chevrolet Camaro V8 5.7L?
Yes. Sealed Power H345DCP 60 fits the 1987-1990 Chevrolet Camaro V8 5.7L. For another car, look up its years and engine in the "Vehicles it fits" section on this page.
Do Sealed Power pistons like this set come with assembly lubricant?
No. Assembly lubricant is not included with Sealed Power H345DCP 60, so it is bought separately.
How much oversize is this piston set?
Sealed Power H345DCP 60 is 0.060 in oversize and is made for a 4.060 in bore, with a minimum clearance of 0.0010 in.
Are these Sealed Power cast pistons hypereutectic?
Yes. This set is listed as a cast piston set in hypereutectic material, with a flat head and DUROSHIELD-coated skirts.
What does the FM425 material do in Sealed Power hypereutectic pistons?
FM425 is an exclusive material that gives strength and scuff resistance. That lets the piston run a tighter bore and seal better for less blow-by.
