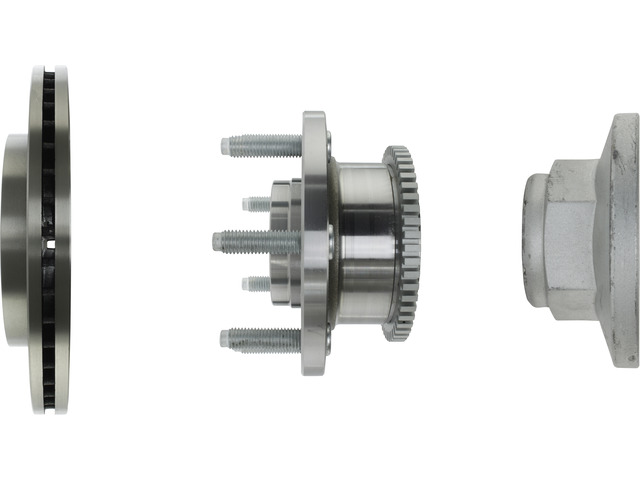

Centric Parts 121.65129 front disc brake rotor and hub assembly for the 2004-2008 Ford F-150 and other vehicles gives the pads a surface to clamp and slow the wheel. This Centric Parts disc brake rotor comes together with its hub as one unit.
- Vented rotor with straight vanes between the friction surfaces
- Nominal thickness of 30 mm with a discard thickness of 28.5 mm
- Seven lug holes on a 150 mm bolt circle
- ABS tone ring included
Quick facts
- Part: Centric Parts 121.65129 disc brake rotor and hub assembly
- Fits: 2004-2008 Ford F-150 and other vehicles
- Position: Front
- Condition: New
A pulsing brake pedal, grinding or deep grooves on the rotor face can mean the rotor is worn. Before you replace the assembly, rule out worn pads, a sticking caliper and a worn wheel bearing, since any of them can produce a similar pulsing or noise. This listing is one assembly, and both front sides are normally replaced together.
Fits
It fits the 2004-2008 Ford F-150 and the 2006-2008 Lincoln Mark LT, and each takes two.
Specifications
Fit and size
- Position: front
- Quantity per vehicle: 2
- Nominal thickness: 30 mm (1.181 in)
- Discard thickness: 28.5 mm (1.122 in)
- Bolt circle: 150 mm (5.906 in), 7 lug holes
- Overall height: 91.9 mm (3.618 in)
Build and materials
- Construction: vented, straight vane style
- Mounting: hub and rotor
- ABS tone ring: included
- Condition: new
In the box
One front disc brake rotor and hub assembly with its ABS tone ring. Bearings are not included.
Frequently Asked Questions
Can I use this as brake rotors for the 2004-2008 Ford F-150?
Yes. Centric Parts 121.65129 is a front rotor and hub assembly for the 2004-2008 Ford F-150 and the 2006-2008 Lincoln Mark LT, and each takes two.
Do Centric Parts brake rotors like this one include bearings?
No. Centric Parts 121.65129 does not include bearings. The assembly comes with the hub and the ABS tone ring.
What is the discard thickness of this vented rotor?
Nominal thickness is 30 mm (1.181 in) and discard thickness is 28.5 mm (1.122 in). A rotor measuring 28.5 mm or less is due for replacement.
What signs can show this front rotor and hub is worn?
A pulsing brake pedal, grinding or squealing, or deep grooves on the rotor face can point to wear. A shop can confirm it with a thickness measurement.
Does this rotor and hub assembly come with an ABS tone ring?
Yes. The ABS tone ring is included. The hub has seven lug holes on a 150 mm (5.906 in) bolt circle.
