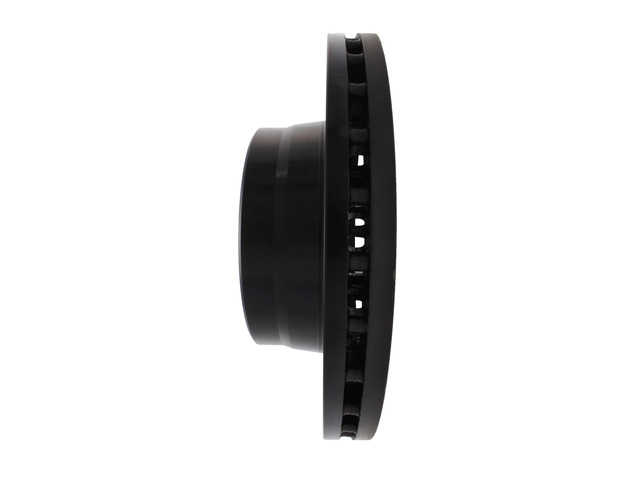

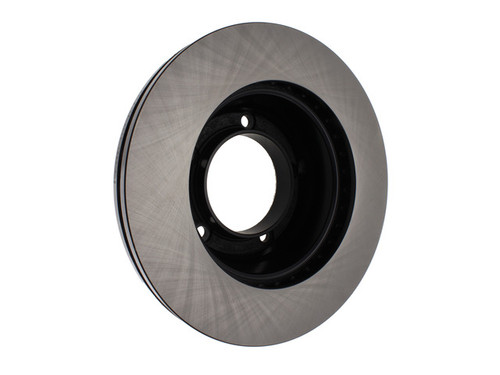

Centric Parts 120.80013 brake rotor for the 2003-2009 Chevrolet C4500 Kodiak and other vehicles gives the brake pads a smooth surface to clamp. It is one of the Centric Parts brake rotors, a hat-shaped disc that mounts behind the hub.
Pedal pulsation, grooves in the rotor face or a thickness below the discard limit can mean the rotor is worn, though worn brake pads or a sticking caliper can be behind the same signs. This listing is one rotor; the vehicle takes two, one on each side of the axle, so both sides are normally replaced together.
The vehicles it fits include the 2003-2009 Chevrolet C5500 Kodiak and the 2003-2009 GMC C4500 Topkick. If your vehicle is a different one, look up its year and model in the "Vehicles it fits" section.
Fit and size
Build and materials
One brake rotor. The ABS tone ring and bearings are not included.
Interchange: 120.80013CRY · 121.80013 · 320.80013 · BR900904-02
YH145689 · 41225 · 41225DG · AX900904 · PRT5689 · 580415 · 580415RGS · BR55142 · BR900904 · E12585018 · 88936163 · 55142 · PS126365 · BD126365 · BD126365E · 6672300
This part cross-references / interchanges with the following part numbers:
Does the Centric Parts 120.80013 fit the 2003-2009 GMC C4500 Topkick?
Yes. Centric Parts 120.80013 fits the 2003-2009 GMC C4500 Topkick, and the vehicle takes two rotors.
Is this Centric Parts disc brake rotor vented or solid?
Centric Parts 120.80013 is vented, with pillar vanes and a smooth surface. It measures 381 mm (15 in) across with a 39.1 mm nominal thickness.
Does this rotor come with an ABS tone ring or bearings?
No. This listing is one brake rotor, and the ABS tone ring and bearings are not included.
At what thickness does this rotor need replacing?
The discard thickness is 36.1 mm (1.421 in), against a nominal 39.1 mm. A shop can measure it during a brake service; at or below 36.1 mm, replace the rotor.
What bolt pattern and center hole does this rotor have?
It has 5 lug holes on a 171.5 mm (6.752 in) bolt circle and a 131 mm (5.157 in) center hole.
