Front Brake Rotor for 2006-2012 Land Rover Range Rover - Centric Parts 125.22015

$173.99
WARNING:California Proposition 65▾
Centric Parts Disc Brake Rotor 125.22015
Centric Parts Disc Brake Rotor 125.22015

Vehicles this part fits
    Part number: 125.22015
    UPC: 805890729006
    Condition: New
    Weight: 28.10 LBS
    Item Package Quantity: 1
    $173.99
    Adding to cart… The item has been added

    Have questions?

    Ask an Expert

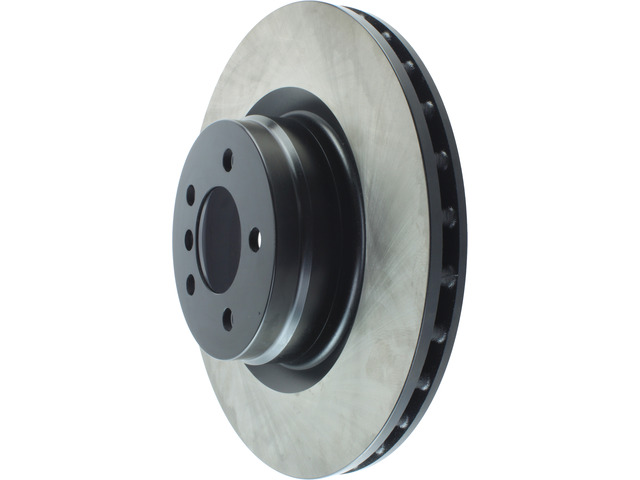

    Centric Parts Disc Brake Rotor P/N:125.22015
    Centric Parts Disc Brake Rotor P/N:125.22015
    $173.99
    $173.99

    Centric Parts 125.22015 front brake rotor for the 2006-2012 Land Rover Range Rover gives the brake pads a vented surface to clamp against when slowing the vehicle. As a Centric Parts disc brake rotor, it turns with the wheel while the pads squeeze its two faces.

    • Vented design with straight vanes
    • Smooth surface type
    • Coated hat finish

    Quick facts

    • Part: Centric Parts 125.22015 brake rotor
    • Also called: disc brake rotor
    • Fits: 2006-2012 Land Rover Range Rover
    • Position: Front
    • Condition: New

    A pulsing brake pedal, vibration when braking or deep grooves in the rotor face can all mean the rotors need attention. Before blaming the rotor, check it during a brake service with the engine off and the car cool: look over the face for grooves or cracks and measure the thickness against the discard figure below. A pedal pulse can also have other causes.

    Fits

    This front rotor fits the 2006-2012 Land Rover Range Rover, which takes two. This listing is one rotor, so order two and fit them together.

    Specifications

    Fit and size

    • Position: Front
    • Quantity per vehicle: 2
    • Outside diameter: 360 mm (14.173 in)
    • Center hole diameter: 79 mm (3.110 in)
    • Bolt circle: 120 mm (4.724 in), 5 lug holes
    • Lug hole diameter: 16.5 mm (0.650 in)
    • Nominal thickness: 29.9 mm (1.177 in)
    • Discard thickness: 27 mm (1.063 in)
    • Overall height: 81.1 mm (3.193 in)

    Build and materials

    • Type: Vented, straight vanes
    • Surface: Smooth
    • Hat finish: Coated
    • ABS tone ring: not included
    • Condition: New

    Frequently Asked Questions

    Is this Range Rover brake rotor right for the 2006-2012 Land Rover Range Rover?

    Yes. Centric Parts 125.22015 is a front rotor that fits the 2006-2012 Land Rover Range Rover, which takes two.

    What is the discard thickness on the Centric Parts 125.22015?

    The discard thickness is 27 mm (1.063 in), and the nominal thickness is 29.9 mm (1.177 in). A rotor measuring at or below the discard figure should be replaced.

    Does this front rotor come with the ABS tone ring?

    No. This rotor is listed without an ABS tone ring, and wheel bearings are not included either.

    Are Centric Parts brake rotors vented or solid?

    This one is vented, with straight vanes and a smooth surface. It measures 360 mm across and has five lug holes.

    How can I tell if this front rotor is worn?

    During a brake service, look for deep grooves or cracks and measure the thickness against the 27 mm discard figure. Pulsation or vibration when braking can also be a sign.
