Rear Brake Rotor for 2006-2012 Land Rover Range Rover - Centric Parts 125.22017

$120.99

WARNING:California Proposition 65▾

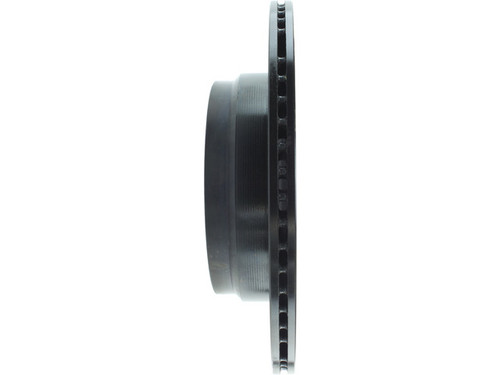

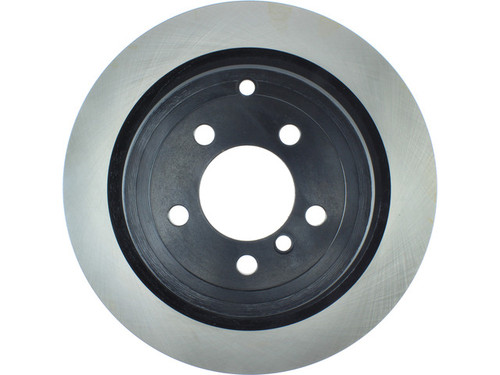

Centric Parts Disc Brake Rotor 125.22017

Centric Parts Disc Brake Rotor 125.22017 - view 2

Centric Parts Disc Brake Rotor 125.22017 - view 3

Centric Parts Disc Brake Rotor 125.22017 - view 4

Centric Parts Disc Brake Rotor 125.22017 - view 5

Centric Parts Disc Brake Rotor 125.22017 - view 6

Centric Parts Disc Brake Rotor 125.22017 - view 7

Centric Parts Disc Brake Rotor 125.22017 - view 8

Centric Parts Disc Brake Rotor 125.22017 - view 9

Centric Parts Disc Brake Rotor 125.22017 - view 10

Part number: 125.22017

UPC: 805890729020

Condition: New

Weight: 21.40 LBS

Item Package Code: EA

Part Has Core (Y/N): N

Item Package Quantity: 1

$120.99

Current Stock: 16

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

Centric Parts Disc Brake Rotor P/N:125.22017

$120.99

Description

Centric Parts 125.22017 rear brake rotor for the 2006-2012 Land Rover Range Rover turns with the wheel while the pads squeeze it to slow the vehicle. This Centric Parts disc brake rotor is vented and has a coated hat.

Vented construction with straight vanes
Coated hat finish
Smooth friction surface
Drum-in-hat design with floating / DIH disc mounting
20 mm nominal thickness with a 17 mm discard thickness

Quick facts

Part: Centric Parts 125.22017 brake rotor
Also called: disc brake rotor
Fits: 2006-2012 Land Rover Range Rover
Position: Rear

Pulsation or vibration under braking, grooves on the rotor face or a grinding noise can mean this rotor is worn, though worn pads or a sticking caliper can be behind them too. With the vehicle parked and cool, a micrometer reading against the 17 mm discard thickness shows whether the rotor is at its limit.

Fits

It fits the 2006-2012 Land Rover Range Rover, which takes two rear rotors. This listing is one rotor for the rear axle, and the other side of that axle is normally replaced at the same time.

Specifications

Fit and size

Position: Rear
Quantity per vehicle: 2
Outside diameter: 354 mm (13.937 in)
Inside diameter: 266.5 mm (10.492 in)
Center hole diameter: 79 mm (3.110 in)
Bolt circle: 120 mm (4.724 in), 5 bolt holes
Bolt hole diameter: 16.6 mm (0.654 in)
Overall height: 75.2 mm (2.961 in)
Nominal thickness: 20 mm (0.787 in)
Discard thickness: 17 mm (0.669 in)

Build and materials

Type: vented, straight vanes
Surface: smooth
Hat finish: coated
Construction: drum-in-hat, floating / DIH disc mounting
ABS tone ring: not included

In the box

One brake rotor. The ABS tone ring and bearings are not included.

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

Buyer's Q&A

Frequently Asked Questions

Will this Range Rover brake rotor fit a 2006-2012 Land Rover Range Rover?

Yes. Centric Parts 125.22017 is a rear brake rotor for the 2006-2012 Land Rover Range Rover, and the car takes two of them.

Does this rear rotor come with the ABS tone ring or wheel bearings?

No. Centric Parts 125.22017 is sold as one rotor; the ABS tone ring and the bearings are not included.

Are Centric Parts brake rotors like this one vented or solid?

This one is vented, with straight vanes and a smooth surface, and it measures 354 mm across.

What is the minimum thickness before this rear rotor needs replacing?

The discard thickness is 17 mm (0.669 in), and a new rotor measures 20 mm (0.787 in). Measure with the car parked and cool, or have a shop do it.

What bolt circle and center hole does this rotor have?

Centric Parts 125.22017 has 5 bolt holes of 16.6 mm on a 120 mm bolt circle, plus a 79 mm center hole.
