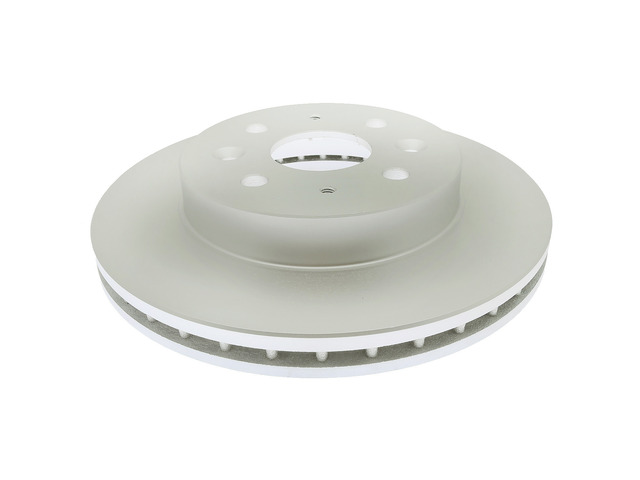

Front Brake Rotor for 2003-2005 Kia Rio - Centric Parts 320.50011F

$30.99
WARNING:California Proposition 65▾
Centric Parts 320.50011F
Centric Parts 320.50011F

Vehicles this part fits
    Part number: 320.50011F
    UPC: 889590731972
    Condition: New
    Weight: 11.40 LBS
    Item Package Quantity: 1
    $30.99
    Adding to cart… The item has been added

    Have questions?

    Ask an Expert
    Centric Parts Disc Brake Rotor P/N:320.50011F
    Centric Parts Disc Brake Rotor P/N:320.50011F
    $30.99
    $30.99

    Centric Parts 320.50011F front brake rotor for the 2003-2005 Kia Rio is the disc the brake pads clamp against to slow the wheel.

    • Vented design with straight vanes
    • Fully coated disc finish
    • Coated hat
    • Smooth surface type

    Quick facts

    • Part: Centric Parts 320.50011F brake rotor
    • Also called: disc brake rotor
    • Fits: 2003-2005 Kia Rio
    • Position: Front
    • Condition: New

    A pulsing brake pedal, grooves or scoring on the rotor face, or vibration while braking can mean a rotor is worn. These signs alone do not prove the rotor is the problem, since a sticking caliper can produce similar symptoms.

    Fits

    This rotor fits the 2003-2005 Kia Rio, which takes one on each side of the front axle. This listing is one rotor; the other front rotor is normally replaced at the same time.

    Specifications

    Fit and size

    • Position: front
    • Quantity per vehicle: 2
    • Outside diameter: 254 mm (10 in)
    • Center hole diameter: 55 mm (2.165 in)
    • Bolt circle: 100 mm (3.937 in), 4 lug holes
    • Stud/lug hole diameter: 12.9 mm (0.508 in)
    • Mounting bolt hole diameter: 12.9 mm (0.507 in)
    • Nominal thickness: 24 mm (0.945 in)
    • Discard thickness: 22 mm (0.866 in)
    • Overall height: 50.8 mm (2 in)

    Build and materials

    • Type: vented, straight vanes
    • Surface: smooth
    • Disc finish: fully coated
    • Hat finish: coated
    • ABS tone ring: not included
    • Condition: new

    In the box

    One brake rotor. Wheel bearings and the ABS tone ring are not included.

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Are these 2003-2005 Kia Rio brake rotors for the front axle?

    Yes. Centric Parts 320.50011F is a front rotor for the 2003-2005 Kia Rio, which takes one on each side of that axle.

    Does the 320.50011F rotor come with wheel bearings or an ABS tone ring?

    No. This listing is one rotor, and the wheel bearings and the ABS tone ring are not included.

    Are these Centric Parts brake rotors vented or solid?

    Vented. Centric Parts 320.50011F has straight vanes and a smooth surface, with a fully coated disc and a coated hat.

    What is the minimum thickness for this Centric Parts disc brake rotor?

    New, the rotor is 24 mm thick, and its discard thickness is 22 mm. Once it wears to 22 mm, it is due for replacement.

    What is the bolt circle and center hole size of this front rotor?

    The bolt circle is 100 mm with 4 lug holes, and the center hole is 55 mm. The outside diameter is 254 mm (10 in).
