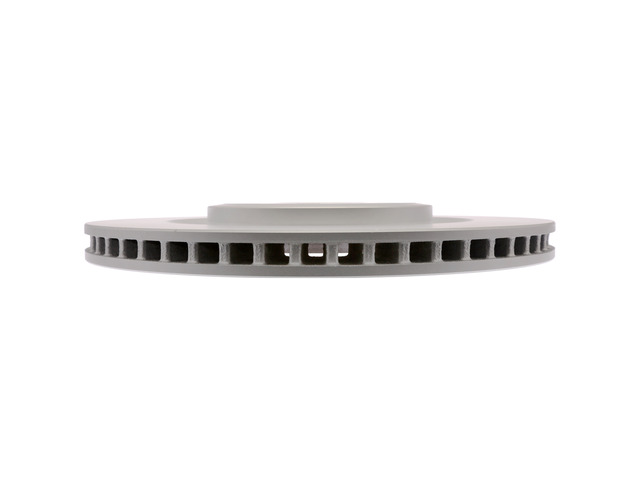

Centric Parts 320.65161F rear brake rotor for the 2020-2025 Ford Explorer and other vehicles gives the brake pads a surface to clamp against. It turns with the wheel, and the pad friction against it slows the vehicle.
- Vented construction with 53 straight vanes
- Fully coated disc finish and a coated hat
- Smooth, non-directional braking surface
- Cast iron body with a 350 mm outside diameter
Quick facts
- Part: Centric Parts 320.65161F brake rotor
- Also called: disc brake rotor
- Fits: 2020-2025 Ford Explorer and other vehicles
- Position: Rear
- Material: Cast Iron
- Condition: New
A pulsing brake pedal, grooves or cracks on the rotor face, or a grinding or squeal from the rear brakes can mean a rotor is worn. The pads and caliper can also produce noise or pulsation, so during the brake service, look them over and measure the rotor against its discard thickness. If a worn rotor is the cause, this one replaces it.
Fits
The 2020-2025 Ford Explorer, the 2024-2025 Ford Mustang and the 2020-2025 Ford Police Interceptor Utility are among the vehicles this rotor fits, two per vehicle. This listing is one rotor, one of the Centric Parts brake rotors for the rear axle; both rear sides are normally replaced together.
Specifications
Fit and size
- Position: Rear
- Quantity per vehicle: 2
- Outside diameter: 350 mm (13.77 in)
- Inside diameter: 236.7 mm (9.319 in)
- Hat inside diameter: 164 mm (6.457 in)
- Center hole diameter: 71 mm (2.79 in)
- Nominal thickness: 26 mm (1.02 in)
- Discard thickness: 24.5 mm (0.965 in)
- Overall height: 39.5 mm (1.55 in)
- Bolt circle: 114.4 mm (4.5 in), 5 lug holes
- Lug hole diameter: 15.5 mm (0.61 in)
Build and materials
- Construction: Vented
- Material: Cast iron
- Surface: Smooth, non-directional
- Disc finish: Fully coated
- Hat finish: Coated
- ABS tone ring: not included
- Condition: New
In the box
One brake rotor. The ABS tone ring and bearings are not included.
Product information is for general reference and may contain errors. See our Disclaimer.
Frequently Asked Questions
Is this a front or rear brake rotor for the 2020-2025 Ford Explorer?
Rear. Centric Parts 320.65161F is a rear rotor listed for the 2020-2025 Ford Explorer, two per vehicle. Look up your own car in the "Vehicles it fits" section.
Is this brake rotor the right size for the 2024-2025 Ford Mustang?
Yes. Centric Parts 320.65161F is listed for the rear of the 2024-2025 Ford Mustang, with a 350 mm outside diameter and five lug holes on a 114.4 mm bolt circle.
Does the Centric Parts 320.65161F come with the ABS tone ring or wheel bearings?
No. The listing is one rotor; the ABS tone ring and the bearings are not included.
What is the discard thickness of this Centric Parts disc brake rotor?
Discard thickness is 24.5 mm (0.965 in), against a nominal thickness of 26 mm (1.02 in). A rotor measured at or below the discard value is due for replacement.
What is the center hole diameter of this rear brake rotor?
The center hole is 71 mm (2.79 in), and the hat inside diameter is 164 mm (6.457 in). Both help you compare the rotor against your old one.
