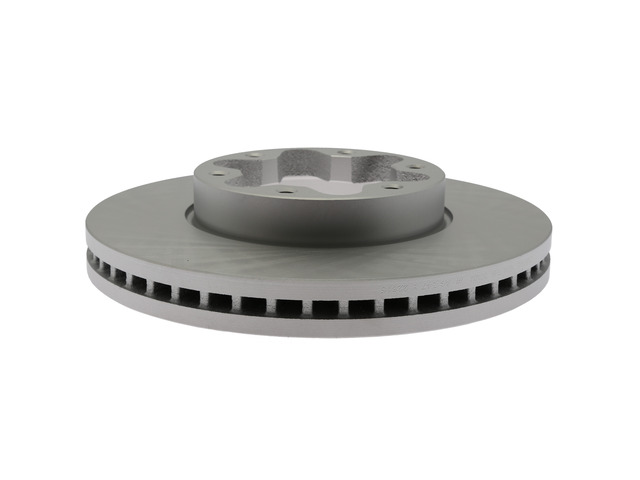

Centric Parts 320.65166F front brake rotor for the 2020-2023 Ford Transit-150 and other vehicles gives the brake pads a surface to clamp and slow the wheel. Among Centric Parts brake rotors, this one is an iron disc that mounts behind the hub.
- Vented disc with 47 straight vanes for airflow between the friction faces
- Fully coated disc finish and a coated hat
- Smooth, non-directional braking surface
- Nominal thickness of 33 mm with a discard thickness of 30 mm
Quick facts
- Part: Centric Parts 320.65166F brake rotor
- Also called: disc brake rotor
- Fits: 2020-2023 Ford Transit-150 and other vehicles
- Position: Front
- Material: Iron
A pulsing brake pedal, vibration under braking, deep grooves or wear down to the discard thickness can mean the rotor is due for replacement. These signs alone do not prove the rotor is the problem; worn pads can produce a similar shudder. Both front rotors are normally replaced together, and this listing is one rotor: the vehicle takes one on each side of the axle.
Fits
This front brake rotor is a direct-fit replacement for the 2020-2023 Ford Transit-150, the 2020-2025 Ford Transit-250 and the 2020-2025 Ford Transit-350. If your vehicle is not named here, look up its year and model in the "Vehicles it fits" section.
Specifications
Fit and size
- Position: Front
- Quantity per vehicle: 2
- Outside diameter: 302 mm (11.889 in)
- Inside diameter: 176 mm (6.9 in)
- Center hole diameter: 102 mm (4.0 in)
- Hat inner diameter: 210 mm (8.27 in)
- Maximum brake diameter (discard): 302 mm
- Bolt circle: 132 mm (5.196 in), 6 lug holes
- Mounting bolt hole diameter: 12 mm (0.5 in)
- Nominal thickness: 33 mm (1.299 in)
- Discard thickness: 30 mm (1.181 in)
Build and materials
- Construction: Vented
- Material: Iron
- Surface: Smooth, non-directional
- Disc finish: Fully coated
- Hat finish: Coated
- Disc mounting: Behind the hub
- ABS tone ring: not included
- Country of origin: China
In the box
One brake rotor. The ABS tone ring and wheel bearings are not included.
Interchange: 121.65166 · 125.65166 · 320.65166 · BR901818-01 · 1407-704689 · 1427-732805
YH704689P · 75074DG · 75074DL · 75074SD · 622550RGS · BR901818 · LK4Z1125A · LK4Z1125B · LK4Z1125C · BRRF427 · 42352 · TN682686GEO · 6622550
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
YH704689P, 75074DG, 75074DL, 75074SD, 622550RGS, 121.65166, 125.65166, 320.65166, BR901818, BR901818-01, LK4Z1125A, LK4Z1125B, LK4Z1125C, BRRF427, 42352, TN682686GEO, 1407-704689, 1427-732805, 6622550
Frequently Asked Questions
Does the Centric Parts 320.65166F fit the 2020-2025 Ford Transit-250?
Yes. Centric Parts 320.65166F is a front brake rotor for the 2020-2025 Ford Transit-250, and the 2020-2025 Ford Transit-350 takes it as well.
Is this Centric Parts disc brake rotor vented or solid?
Vented. This front rotor is iron with 47 straight vanes and a smooth, non-directional surface.
What is the minimum thickness for the Centric Parts 320.65166F rotor?
Nominal thickness is 33 mm (1.299 in) and the discard thickness is 30 mm (1.181 in). A rotor measured at 30 mm or less is at its limit; a brake service is the time to measure it.
Does this rotor include the ABS tone ring or wheel bearings?
No. This listing is one front rotor only; the ABS tone ring and the wheel bearings are not included.
Does Centric Parts 320.65166F replace part number LK4Z1125A?
Yes. LK4Z1125A is one of the numbers this front rotor replaces, along with LK4Z1125B and LK4Z1125C.
