Cloyes Engine Oil Pump Sprocket S1122 - view 2
Cloyes Engine Oil Pump Sprocket S1122
Cloyes Engine Oil Pump Sprocket S1122 - view 2
Cloyes Engine Oil Pump Sprocket S1122

Oil Pump Sprocket for 2017-2022 GMC Acadia & More - Cloyes S1122

Be the first to review this product
$27.99
WARNING:California Proposition 65▾
MPN: S1122
UPC: 750385836236
Item Package Quantity: 1
Adding to cart… The item has been added

Have questions?

Ask an Expert

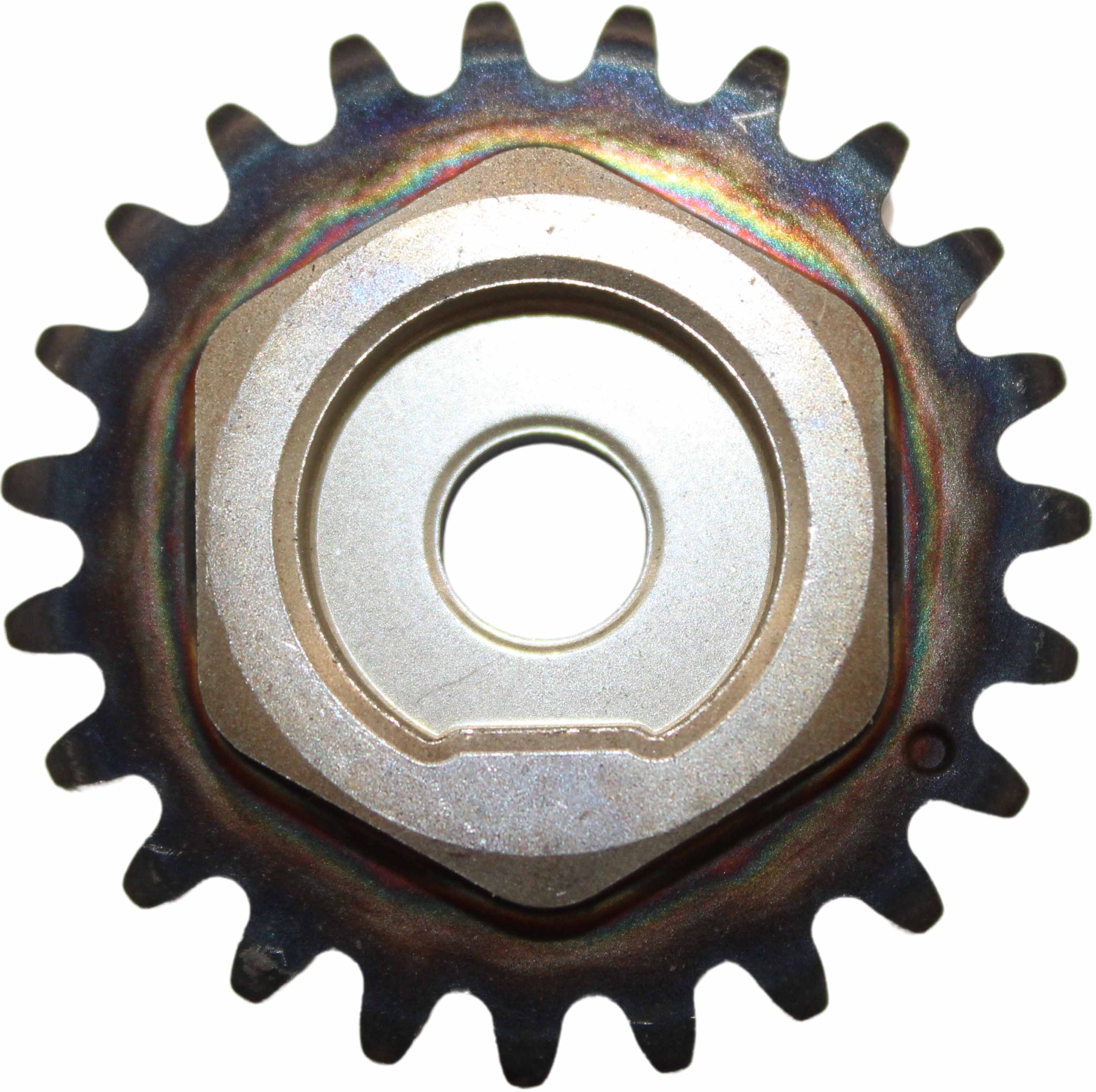

Cloyes Engine Oil Pump Sprocket P/N:S1122
Cloyes Engine Oil Pump Sprocket P/N:S1122
$27.99

Cloyes S1122 oil pump sprocket for the 2017-2022 GMC Acadia V6 3.6L and other vehicles is the driven sprocket that turns the oil pump.

  • Precision-tooled tooth form, bore and off-set for fit and reliability
  • CAD-designed and heat-treated for smooth installation and reliable performance
  • Each sprocket is tested for function, fitment and durability
  • Inverted tooth chain type with one chain row

Quick facts

  • Part: Cloyes S1122 oil pump sprocket
  • Also called: engine oil pump sprocket
  • Fits: 2017-2022 GMC Acadia V6 3.6L and other vehicles
  • Position: Driven
  • Condition: New

A worn engine oil pump sprocket can show up as chain noise or a low oil pressure warning. Low oil level, a worn oil pump, or a loose or worn timing chain, tensioner or guide can be behind similar symptoms, so find the cause before buying. Replacing the chain, tensioners, guides and sprockets together during service is recommended.

Fits

This oil pump sprocket is a direct-fit replacement for the 2016-2022 Chevrolet Camaro V6 3.6L and the 2017-2022 Chevrolet Colorado V6 3.6L. The 2017-2022 GMC Acadia V6 3.6L takes one. If your car is not named here, look it up on the Buyer's Guide tab.

Specifications

Fit and size

  • Position: Driven
  • Quantity per vehicle: 1
  • Chain rows: 1
  • Mounting hole diameter: 8.31 mm (0.327 in)
  • Width: 15.88 mm (0.625 in)
  • Tooth width: 6.2 mm (0.244 in)
  • Keyway: 1, adjustable
  • Timing marks: 1

Build and materials

  • Chain type: Inverted tooth
  • Grade: Standard replacement
  • Condition: New
  • Warranty: Cloyes Limited Lifetime Warranty

Frequently Asked Questions

Does the Cloyes S1122 oil pump sprocket fit the 2016-2022 Chevrolet Camaro V6 3.6L?

Yes. Cloyes S1122 fits the 2016-2022 Chevrolet Camaro V6 3.6L, and also the 2017-2022 Chevrolet Colorado V6 3.6L. Other cars can be looked up on the Buyer's Guide tab.

What chain does the Cloyes S1122 oil pump sprocket run?

Cloyes S1122 is made for an inverted tooth chain with one chain row. Its tooth width is 6.2 mm (0.244 in) and overall width is 15.88 mm (0.625 in).

What size is the mounting hole on this driven oil pump sprocket?

The mounting hole diameter is 8.31 mm (0.327 in). The sprocket has one keyway, which is adjustable, and one timing mark.

Should I replace the timing chain when I change this oil pump sprocket?

Yes. Replacing the chain along with the tensioners, guides and sprockets during service is recommended to keep the timing system's integrity.

How can I tell this oil pump sprocket is worn?

Chipped or worn teeth and a damaged keyway can be seen once the sprocket is out during a chain service. Chain noise or a low oil pressure warning can also point to wear.
