Cloyes 9-0391SBK6A timing chain, belt and water pump kit for the 2004-2006 Ford F-150 V8 5.4L and other vehicles replaces the timing chains, tensioner, chain guides and water pump in one repair. Sold as an engine timing chain and accessory drive belt kit with water pump, it keeps the crankshaft and camshaft aligned and in time.
- Pre-stressed, heat-treated steel chains with precision pitch control to reduce noise and fatigue
- CAD-designed, heat-treated sprockets with precision-tooled tooth form, bore, off-set and timing index
- Nylon chain guides that give the timing chain a path or apply tension to it
- Each part is tested for function, fitment and durability
Quick facts
- Part: Cloyes 9-0391SBK6A timing chain, belt and water pump kit
- Also called: engine timing chain and accessory drive belt kit with water pump
- Fits: 2004-2006 Ford F-150 V8 5.4L and other vehicles
- Material: Steel chains, nylon chain guides
- Condition: New
A rattle from the front of the engine or a coolant leak at the water pump can mean the chains, guides or water pump are worn, though a failing camshaft position sensor or low oil pressure can produce timing-related symptoms too. The engine takes one kit, which holds two chains.
Fits
This kit is a direct-fit replacement for the 2004-2006 Ford F-150 V8 5.4L and the 2009-2014 Ford Expedition V8 5.4L, and the same timing chain, belt and water pump kit suits the 2009-2014 Lincoln Navigator V8 5.4L. If your vehicle is not named here, look up its year and engine in the "Vehicles it fits" section.
Specifications
Fit and size
- Quantity per vehicle: 1
- Timing chains in kit: 2
- Chain length: 574.68 mm (22.625 in)
- Chain pitch: 9.525 mm (0.375 in)
- Chain width: 13.97 mm (0.55 in)
- Link quantity: 122
- Sprocket 1 tooth quantity: 21
Build and materials
- Timing chain type: inverted tooth
- Chain material: steel
- Chain guide material: nylon
- Crankshaft sprocket material: metal
- Condition: new
- Warranty: Cloyes limited lifetime warranty
- Designed in the USA
In the box

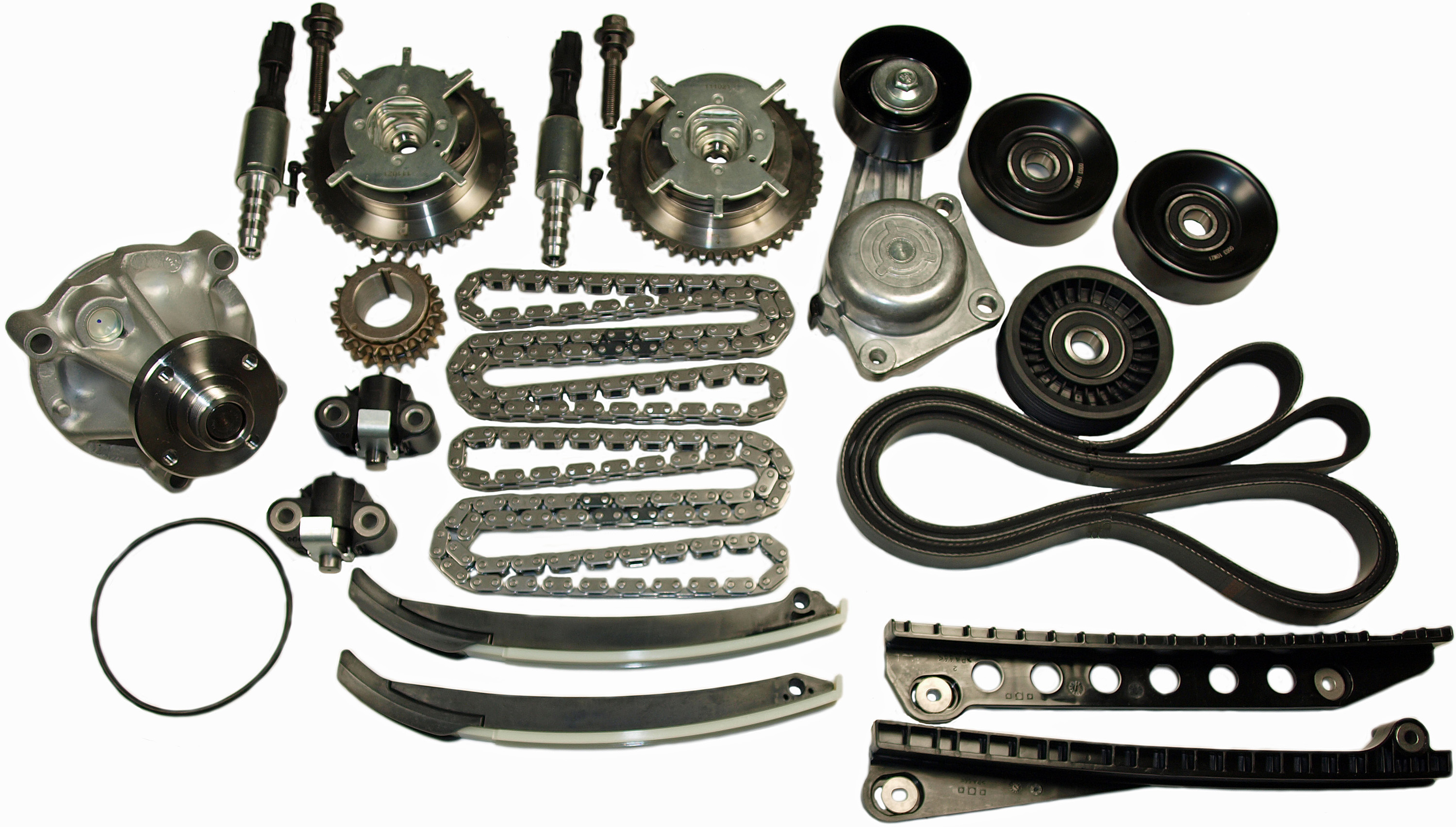

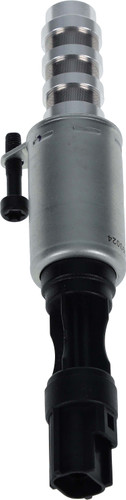

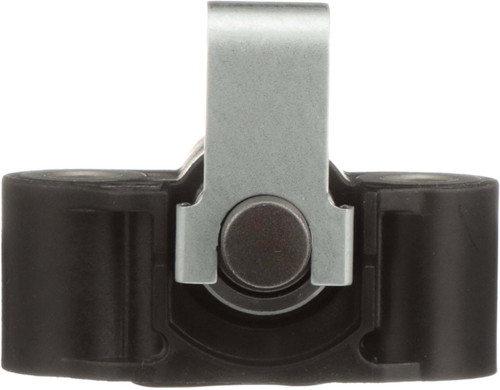

Two timing chains, a tensioner, chain guides, a water pump, and the sprockets and accessory drive belt for this application.
Installation notes
- Gaskets, o-rings and any necessary fasteners come in the kit for a full repair.
- All the necessary components are included for an easy install.
- Replace all the engine timing components together for total timing system integrity.
Frequently Asked Questions
Is the Cloyes 9-0391SBK6A the right Ford F-150 timing chain for a 2004-2006 F-150 V8 5.4L?
Yes. Cloyes 9-0391SBK6A fits the 2004-2006 and 2009-2010 Ford F-150 with the V8 5.4L.
Is this a Ford Expedition timing chain kit for a 2009-2014 Expedition V8 5.4L?
Yes. The 2009-2014 Ford Expedition V8 5.4L takes this kit, as does the 2005-2006 Expedition with the same engine.
Does the Cloyes 9-0391SBK6A kit include a water pump and tensioner?
Yes. It includes the water pump, tensioner and chain guides, plus gaskets, o-rings and any necessary fasteners.
What are the chain pitch and length in this timing chain kit?
The pitch is 9.525 mm (0.375 in) and the length is 574.68 mm (22.625 in). The kit holds two inverted-tooth chains, and the chain width is 13.97 mm.
Are the chain guides in this kit nylon or steel?
The chain guides are nylon and the timing chains are steel. The kit carries the Cloyes limited lifetime warranty.
