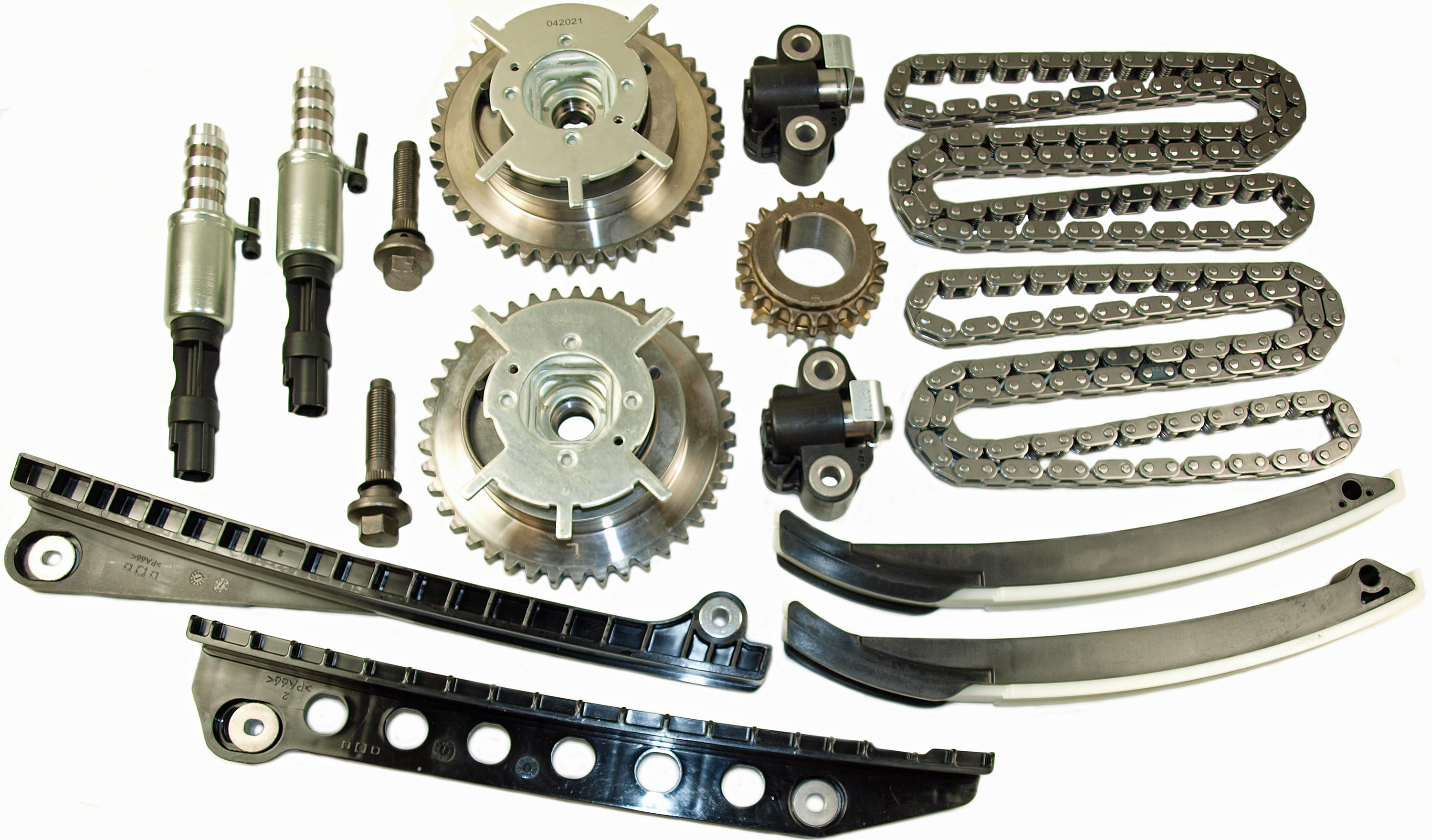

Cloyes 9-0391SBVVT1 timing chain kit for the 2004-2010 Ford F-150 V8 5.4L and other vehicles replaces the chain, sprockets and guides that link the crankshaft and camshafts. It is a Variable Valve Timing (VVT) engine timing chain kit, so the whole timing system is renewed in one go.

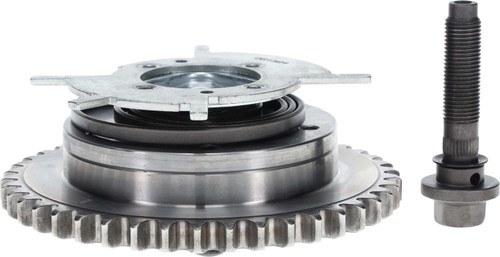

- Cloyes VVT kit with camshaft phasers (sprockets), solenoids and timing components
- Pre-stressed, heat-treated chains with precision pitch control for chain-to-sprocket fit
- CAD-designed, heat-treated sprockets with precision-tooled tooth form, bore, off-set and timing index
- Chain guides give the chain a path and, depending on the design, apply tension to keep alignment and timing
- Each part is production tested for function, fitment and durability
Quick facts
- Part: Cloyes 9-0391SBVVT1 timing chain kit
- Also called: engine timing chain kit
- Fits: 2004-2010 Ford F-150 V8 5.4L and other vehicles
- Condition: New
A stretched or worn timing chain can show up as a rattle at the front of the engine, rough running or a camshaft/crankshaft correlation code. These signs alone do not prove the chain kit is at fault, since a faulty crankshaft position sensor can set a similar code.
Fits
This kit is listed for a wide range of Ford and Lincoln models. Along with the 2004-2010 Ford F-150 V8 5.4L, it is a timing chain kit for the 2005-2014 Ford Expedition V8 5.4L and the 2005-2014 Lincoln Navigator V8 5.4L. If your truck or SUV is not named here, enter its year and engine in the "Vehicles it fits" section to see whether it is listed.
Specifications
Fit and size
- Quantity per vehicle: 1
- Sprocket 1 tooth count: 21
Build and materials
- Type: Variable Valve Timing (VVT) kit
- Condition: New
- Warranty: Cloyes limited lifetime warranty
In the box
One kit. Depending on the application it holds chains, sprockets, tensioners, chain guides and chain tensioner guides, along with camshaft phasers (sprockets), solenoids, gaskets, o-rings and the necessary fasteners. This listing is one kit, and each vehicle takes one.
Frequently Asked Questions
Is the Cloyes 9-0391SBVVT1 the F-150 timing chain kit for a 2004-2010 Ford F-150 V8 5.4L?
Yes. Cloyes 9-0391SBVVT1 is listed for the 2004-2010 Ford F-150 V8 5.4L, and the truck takes one kit.
Does this VVT timing chain kit come with gaskets and fasteners?
Yes. Cloyes 9-0391SBVVT1 includes gaskets, o-rings and the necessary fasteners, along with camshaft phasers (sprockets) and solenoids.
Are the chains in this Cloyes timing chain kit heat-treated?
Yes. The chains are pre-stressed and heat-treated, with precision pitch control for the chain-to-sprocket fit.
What does a stretched timing chain sound like?
A rattle from the front of the engine, uneven running or a camshaft/crankshaft correlation code can mean a stretched chain or worn guides. A shop can confirm it.
Do the tensioners in the Cloyes 9-0391SBVVT1 use spring or hydraulic tension?
Timing chain tensioners can use spring tension or hydraulic pressure to tension the chain. The kit includes the tensioners that go with the application.
