Cloyes 9-5404 upper timing chain tensioner for the 2006-2008 Dodge Charger V6 2.7L and other vehicles holds the timing chain at the right tension. Depending on design, this engine timing chain tensioner uses spring tension or hydraulic pressure to apply that tension.
- CAD designed and heat-treated for smooth installation
- Tested for function, fitment and durability
- Activation pin activation type
- Aluminum and nylon construction
- Shoe included with the tensioner
Quick facts

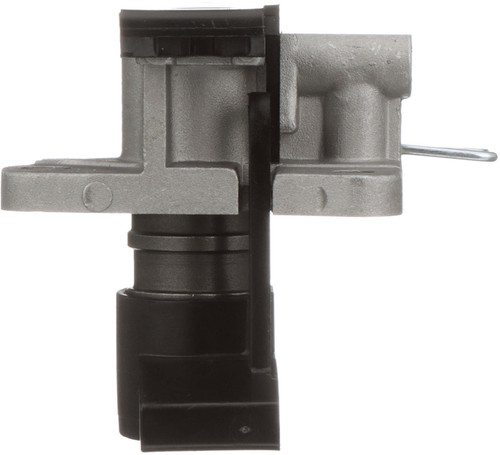

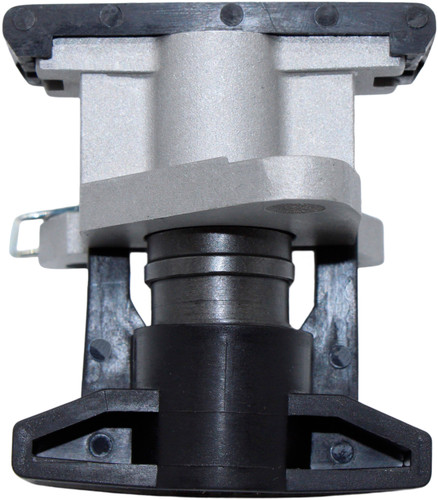

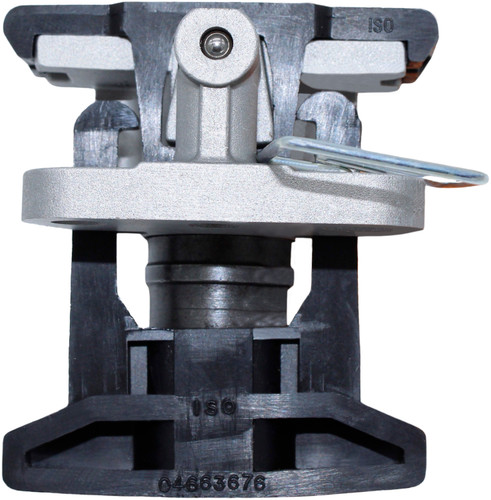

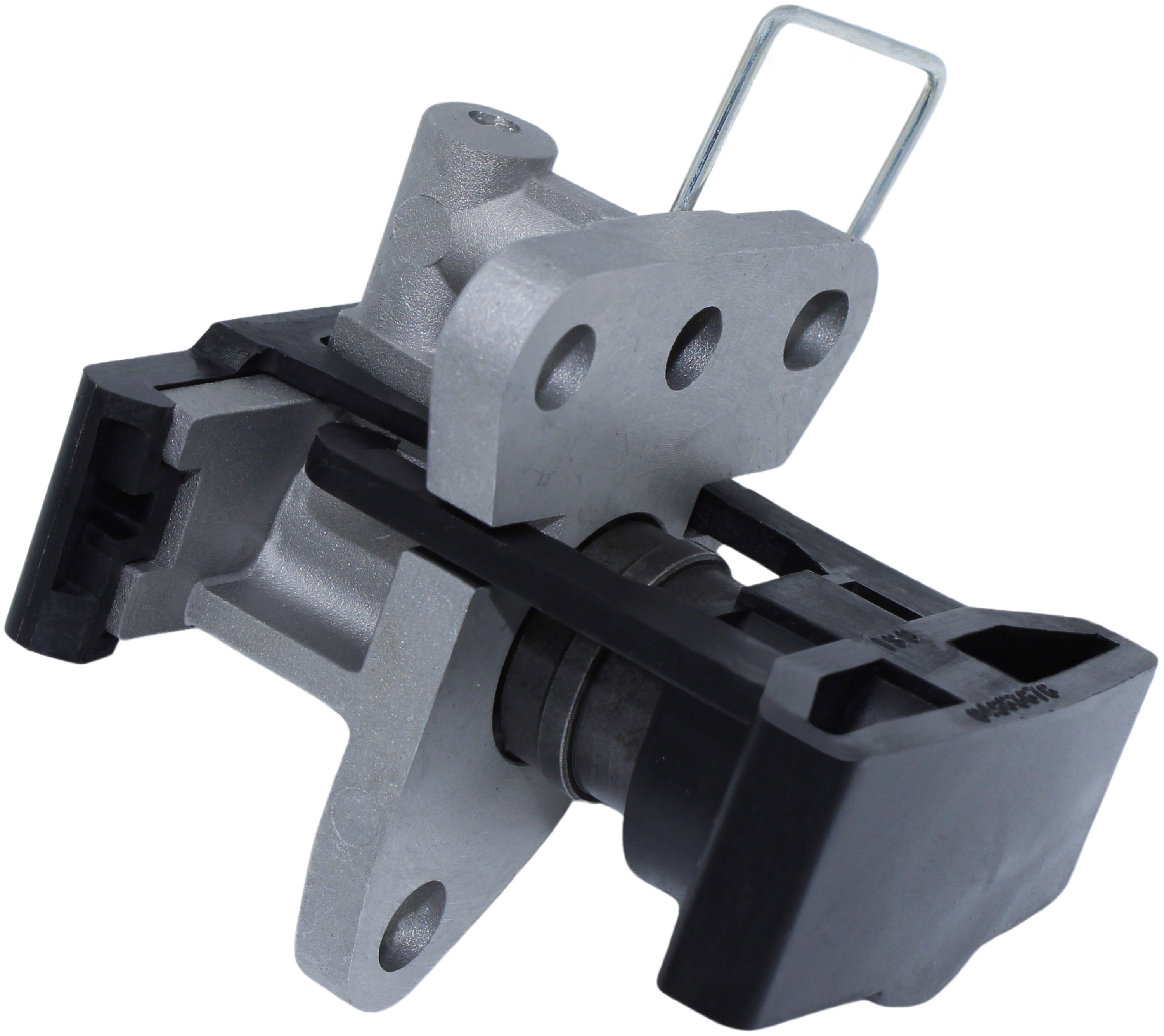

- Part: Cloyes 9-5404 timing chain tensioner
- Also called: engine timing chain tensioner
- Fits: 2006-2008 Dodge Charger V6 2.7L and other vehicles
- Position: Upper
- Material: Aluminum, Nylon
- Condition: New
A rattle from the timing chain area can mean the tensioner is worn, though a stretched chain or worn guides can produce the same sound, so find the cause before you replace anything. During service, the chain, guides and sprockets are best replaced along with the tensioners. The 2006-2008 Dodge Charger V6 2.7L takes two.
Fits
This tensioner is listed for a wide range of Chrysler and Dodge models, including the 2005-2008 Chrysler 300 V6 2.7L and the 2005-2008 Dodge Magnum V6 2.7L.
Specifications
Fit and size
- Position: Upper
- Quantity per vehicle: 2
- Mounting hole diameters: 0.3 in (7.62 mm), 0.23 in (5.842 mm), 0.31 in (7.874 mm)
- Mounting hole quantity: 3
Build and materials
- Material: Aluminum, Nylon
- Damper type: Hydraulic, Spring
- Activation type: Activation pin
- Shoe: included
- Condition: New
- Warranty: Cloyes Limited Lifetime Warranty
In the box
The timing chain tensioner with its shoe. Mounting bolts, other mounting hardware and a gasket or seal are not included, so plan on new bolts, as the old ones may not be reusable.
Frequently Asked Questions
Is Cloyes 9-5404 the Chrysler 300 timing chain tensioner for a 2005-2008 V6 2.7L?
Yes. Cloyes 9-5404 is listed for the 2005-2008 Chrysler 300 V6 2.7L. If your car is a different model, look it up in the "Vehicles it fits" section before ordering.
Does the Cloyes 9-5404 come with the shoe and mounting bolts?
Yes for the shoe, no for the bolts. Cloyes 9-5404 comes with its shoe; mounting bolts, other mounting hardware and a gasket or seal are not included, so plan on new bolts.
What are the mounting hole sizes on this upper tensioner?
The tensioner has three mounting holes: 0.3 in (7.62 mm), 0.23 in (5.842 mm) and 0.31 in (7.874 mm).
What damper type does the Cloyes 9-5404 use?
Cloyes 9-5404 lists its damper type as hydraulic and spring, and it uses an activation pin. It is made of aluminum and nylon.
Is this timing chain tensioner covered by a warranty?
Yes. Cloyes backs this tensioner with its Limited Lifetime Warranty.
