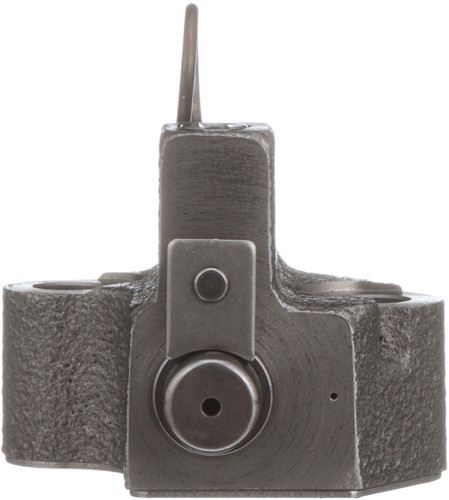

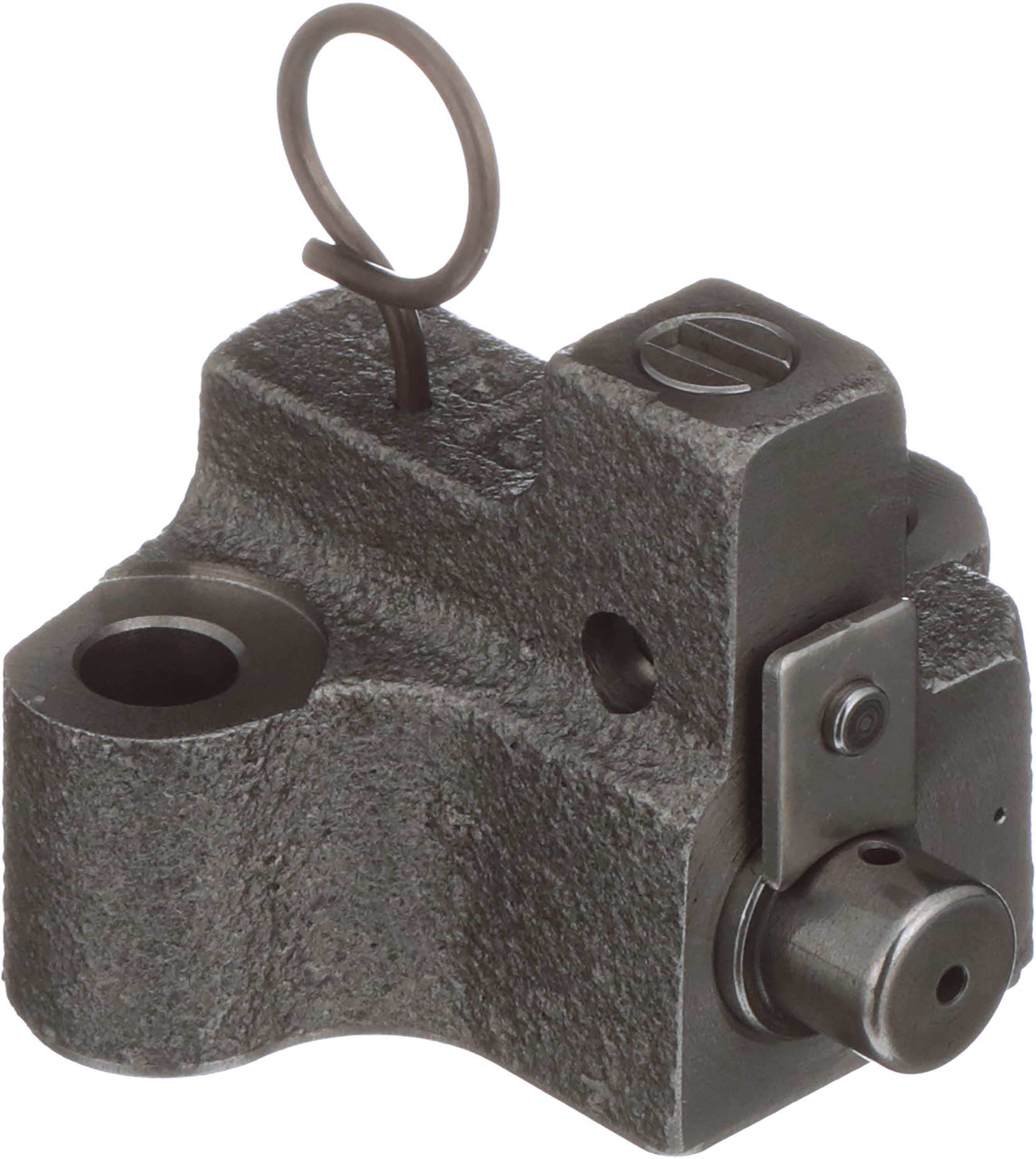

Cloyes 9-5455 left upper timing chain tensioner for the 2011-2013 Ram 1500 V6 3.7L and other vehicles keeps the timing chain at the correct tension. As an engine timing chain tensioner, it maintains the tension the timing system needs.
- Hydraulic and spring damper with an activation pin
- Cast construction, CAD designed and heat-treated for smooth installation
- Tested for function, fitment and durability
- Available as a stand-alone product or in an application-specific kit
Quick facts
- Part: Cloyes 9-5455 timing chain tensioner
- Also called: engine timing chain tensioner
- Fits: 2011-2013 Ram 1500 V6 3.7L and other vehicles
- Position: Left upper
- Material: Cast
- Condition: New
A rattle from the front of the engine can mean a worn tensioner, but a stretched chain, worn guides or worn sprockets can make that noise too, so find which one it is before you order. When the chain is replaced, the tensioners, guides and sprockets are best replaced with it.
Fits
This tensioner is listed for a wide range of Dodge, Ram, Jeep and Mitsubishi models, led by the 2002-2010 Dodge Ram 1500 V6 3.7L and the 2005-2010 Jeep Grand Cherokee V6 3.7L. Both take one left upper tensioner, and this listing is that single part; a right-side tensioner would be ordered separately.
Specifications
Fit and size
- Position: Left upper
- Quantity per vehicle: 1
- Mounting hole diameter: 0.33 in (8.382 mm)
- Mounting holes: 2
Build and materials
- Damper type: Hydraulic, spring
- Activation type: Activation pin
- Material: Cast
- Condition: New
- Warranty: Cloyes Limited Lifetime Warranty
In the box
One timing chain tensioner. Mounting hardware, mounting bolts, a gasket or seal and a shoe are not included, so plan on new bolts.
Frequently Asked Questions
Does the Cloyes 9-5455 fit the 2011-2013 Ram 1500 V6 3.7L?
Yes. Cloyes 9-5455 is the left upper timing chain tensioner for the 2011-2013 Ram 1500 V6 3.7L, one per vehicle. If yours is a different vehicle, look it up in the "Vehicles it fits" section.
Does the Cloyes 9-5455 tensioner come with bolts or a gasket?
No. Cloyes 9-5455 is the tensioner alone. Mounting bolts, mounting hardware, a gasket or seal and a shoe are not included, so plan on new bolts.
What kind of tensioning does the Cloyes 9-5455 use?
Cloyes 9-5455 has a hydraulic and spring damper with an activation pin. Its cast body has two mounting holes of 0.33 in (8.382 mm).
Will this tensioner fit a 2005-2010 Jeep Grand Cherokee V6 3.7L?
Yes. The 2005-2010 Jeep Grand Cherokee V6 3.7L is listed for this left upper timing chain tensioner, one per vehicle.
Does Cloyes put a warranty on the 9-5455 timing chain tensioner?
Yes. Cloyes backs the 9-5455 with its Limited Lifetime Warranty.
