Cloyes High Performance Engine Timing Chain 9-304
Cloyes High Performance Engine Timing Chain 9-304

Center Timing Chain for 1999-2015 GMC Sierra 1500 & More - Cloyes High Performance 9-304

Be the first to review this product
$40.99
MPN: 9-304
Item Package Quantity: 1
Adding to cart… The item has been added

Have questions?

Ask an Expert
Cloyes High Performance Engine Timing Chain P/N:9-304
Cloyes High Performance Engine Timing Chain P/N:9-304
$40.99

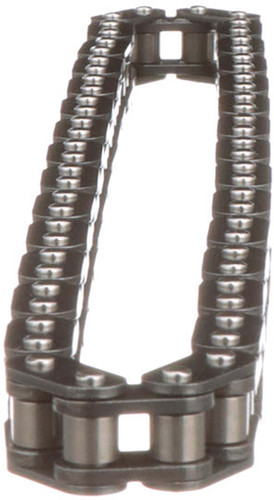

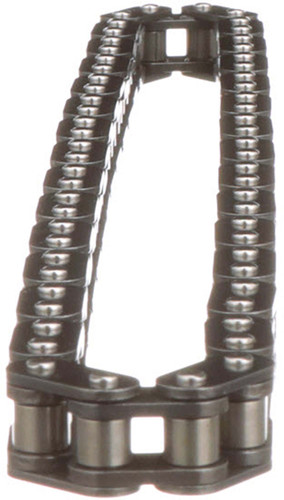

Keep the crankshaft and camshaft turning in step with the CLOYES timing chain 9-304, a high-performance 3/8-inch-pitch single roller chain designed to hold your engine's valve events in time. It fits many vehicles, among them the 1999-2015 GMC Sierra 1500 4.8L / 5.3L / 6.0L / 6.2L, 1999-2007 Chevrolet Silverado 1500 4.8L / 5.3L / 6.0L and 1999-2007 Chevrolet Silverado 2500 4.8L / 5.3L / 5.7L / 6.0L. See the Buyer's Guide tab for the full list.

A timing chain synchronizes the rotation of the crankshaft and camshaft(s) so each cylinder's valve events stay properly timed. Cloyes builds this engine timing chain as a TRUE roller replacement chain. Its links are heat treated and processed to maximize ultimate breaking strength while staying ductile for toughness.

  • True roller design: 3/8 in. (9.5 mm) pitch single roller chain with a 0.250 in. roller diameter and one row.
  • Pre-stressed: pre-stressed to increase fatigue life.
  • Precision pitch control: engineered and built for proper chain-to-sprocket tooth fitment.
  • Specifications: steel chain with 60 links and a width of 0.54 in. (13.79 mm). It has no timing marks and is cataloged for the center position.

Cloyes designs its parts with CAD and builds them from premium materials. Each part is tested and measured for function, fitment and durability. The listed applications use one chain. Cloyes recommends replacing the chain tensioner(s), sprocket(s) and guide(s) whenever the chain is replaced, because those components play a vital role in system stability and accurate timing. Country of origin: United States.

Frequently Asked Questions

What does the CLOYES 9-304 timing chain do?

It links the crankshaft to the camshaft(s) so they rotate in sync, keeping the engine's valve events properly timed for each cylinder.

Does it fit the 1999-2007 Chevrolet Silverado 1500 4.8L / 5.3L / 6.0L?

Yes. It is listed for the 1999-2007 Chevrolet Silverado 1500 with the V8-4.8L and V8-5.3L, and for the 2003-2007 model with the V8-6.0L. Check the Buyer's Guide tab for your engine.

What are the chain's specifications?

It is a steel 3/8 in. (9.5 mm) pitch single roller chain with a 0.250 in. roller diameter, 60 links and a 0.54 in. (13.79 mm) width. It has no timing marks.

Should other timing parts be replaced along with the chain?

Cloyes recommends also replacing the chain tensioner(s), sprocket(s) and guide(s), since they play a vital role in system stability and accurate timing. This listing is for the chain.

What are signs a timing chain may need replacing?

Common signs include a rattle from the front of the engine, especially at startup, or timing-related running problems. Diagnose the cause first, since other parts can cause similar symptoms.
