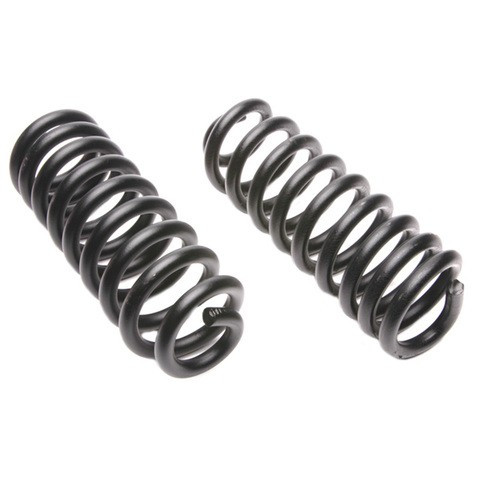

MOOG Chassis Products 5244 front coil spring set for the 1969 Pontiac Firebird and other vehicles holds up the front end and absorbs road bumps.
- Easy to install, with design enhancements that simplify installation and replacement
- 100% load tested
- Designed to lower stresses for longer service life
- Helps bring back a like-new steering feel when worn or sagging springs are the cause
Quick facts
- Part: MOOG Chassis Products 5244 coil spring set
- Fits: the 1969 Pontiac Firebird and other vehicles
- Position: Front
- Condition: New
Worn or sagging coil springs can cause premature tire wear because the vehicle falls out of alignment, and the car may sit low or lean to one side. Before you replace the springs, rule out worn bushings, ball joints or shocks, which can produce similar wear and handling signs.
Fits
This set is a direct-fit replacement for the front coil springs on the 1965-1967 Chevrolet Chevelle and the 1967 Chevrolet El Camino. The 1969 Pontiac Firebird takes one set, so these are the Pontiac Firebird coil springs for that year. Driving something else? Look for your year and model in the "Vehicles it fits" section.
Specifications
Fit and size
- Position: Front
- Quantity per vehicle: 1 set
- Wire diameter: 16.30 mm (0.64 in)
- Outside diameter: 4.910 in
- Relaxed length: 450.90 mm (17.75 in)
- Compressed length: 279.40 mm (11.00 in)
Build and materials
- Condition: New
- Country of origin: United States
Interchange: 630.66003 · 566-084 · 277-1837 · 585-1017 · 831-5244
45H0017 · FCS5244S · DG5851017 · 384544 · 384752 · 385016 · 3850967 · 3851065 · 388284 · 4112116 · SMS5244 · U5244S · CS5244 · JCS1491T
This part cross-references / interchanges with the following part numbers:
45H0017, 630.66003, 566-084, FCS5244S, DG5851017, 384544, 384752, 385016, 3850967, 3851065, 388284, 4112116, SMS5244, U5244S, 277-1837, 585-1017, 831-5244, CS5244, JCS1491T
Frequently Asked Questions
Is the 5244 a coil spring for the 1965-1967 Chevrolet Chevelle?
Yes. MOOG Chassis Products 5244 is a front coil spring set listed for the 1965-1967 Chevrolet Chevelle, and that car takes one set.
Does the 5244 work as a coil spring for the 1967 Chevrolet El Camino?
Yes. MOOG Chassis Products 5244 is a front coil spring set for the 1967 Chevrolet El Camino, which takes one set.
How thick is the wire and how long is the spring in this front coil spring set?
The wire is 16.30 mm (0.64 in) thick and the outside diameter is 4.910 in. The spring measures 450.90 mm (17.75 in) relaxed and 279.40 mm (11.00 in) compressed.
Can sagging front coil springs cause uneven tire wear?
Yes. A worn or sagging spring can throw the vehicle out of alignment, which wears tires early. A low stance or a lean to one side can also be a sign of a tired spring.
Does this set interchange with part number 566-084?
Yes. 566-084 is listed as an interchange number for MOOG Chassis Products 5244, a front coil spring set.
