Front Coil Spring Set for 1963-1982 Chevrolet Corvette & More - MOOG 5758

$210.99
MOOG Chassis Products Coil Spring Set 5758
MOOG Chassis Products Coil Spring Set 5758

Vehicles this part fits
    Part number: 5758
    UPC: 080066406664
    Condition: New
    Weight: 19.30 LBS
    Item Package Quantity: 1
    $210.99
    Adding to cart… The item has been added

    Have questions?

    Ask an Expert

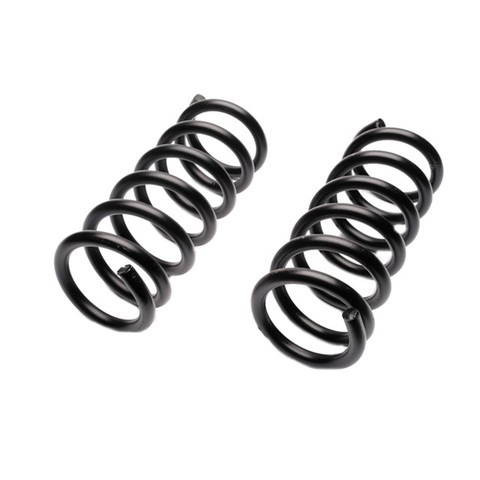

    MOOG Chassis Products Coil Spring Set P/N:5758
    MOOG Chassis Products Coil Spring Set P/N:5758
    $210.99
    $210.99

    MOOG Chassis Products 5758 front coil spring set for the 1963-1982 Chevrolet Corvette and other vehicles supports the vehicle's weight at the front suspension. The springs hold the car at ride height and take up road bumps.

    • Design enhancements that extend product life and simplify installation and replacement
    • 100% load tested
    • Designed to lower stresses for longer service life

    Quick facts

    • Part: MOOG Chassis Products 5758 coil spring set
    • Fits: 1963-1982 Chevrolet Corvette and other vehicles
    • Position: Front
    • Condition: New

    Worn or sagging coil springs can cause premature tire wear through misalignment, and a front end that sits low can be another sign they have settled. Before you replace the springs, rule out worn shocks, ball joints or bushings and an out-of-spec alignment, since those can wear tires too.

    Fits

    This front coil spring set fits the 1963-1982 Chevrolet Corvette, the 1977 Pontiac Grand LeMans and the 1977 Pontiac LeMans. A car needs one set.

    Specifications

    Fit and size

    • Position: Front
    • Quantity per vehicle: 1 set
    • Wire diameter: 16.70 mm (0.65 in)
    • Spring outside diameter: 5.150 in
    • Relaxed length: 328.70 mm (12.94 in)
    • Compressed length: 254.00 mm (10.00 in)

    Build and materials

    • Condition: New
    • Country of origin: United States

    Interchange: 630.62062 · 566-306 · 277-3217 · 585-1174
    45H0174 · FCS5758S · DG5851174 · 331316 · 4114251 · SMS5758 · U5758S · CS5758

    This part cross-references / interchanges with the following part numbers:

    45H0174, 630.62062, 566-306, FCS5758S, DG5851174, 331316, 4114251, SMS5758, U5758S, 277-3217, 585-1174, CS5758

    Frequently Asked Questions

    Will this Corvette coil spring set from MOOG fit a 1963-1982 Chevrolet Corvette?

    Yes. MOOG Chassis Products 5758 is a front coil spring set listed for the 1963-1982 Chevrolet Corvette, and a car takes one set.

    Is this front coil spring set also listed for the 1977 Pontiac Grand LeMans?

    Yes. MOOG Chassis Products 5758 is listed for the 1977 Pontiac Grand LeMans, and also for the 1977 Pontiac LeMans.

    What wire diameter and relaxed length do these springs have?

    The wire is 16.70 mm (0.65 in) thick and the relaxed length is 328.70 mm (12.94 in). The spring outside diameter is 5.150 in.

    How can I tell if my front coil springs are sagging?

    Premature tire wear can be one sign, since worn or sagging springs can throw off alignment. A shop can measure the spring height and inspect the suspension.

    Are these coil springs load tested?

    Yes. MOOG Chassis Products 5758 coil spring sets are 100% load tested and are designed to lower stresses for longer service life.
